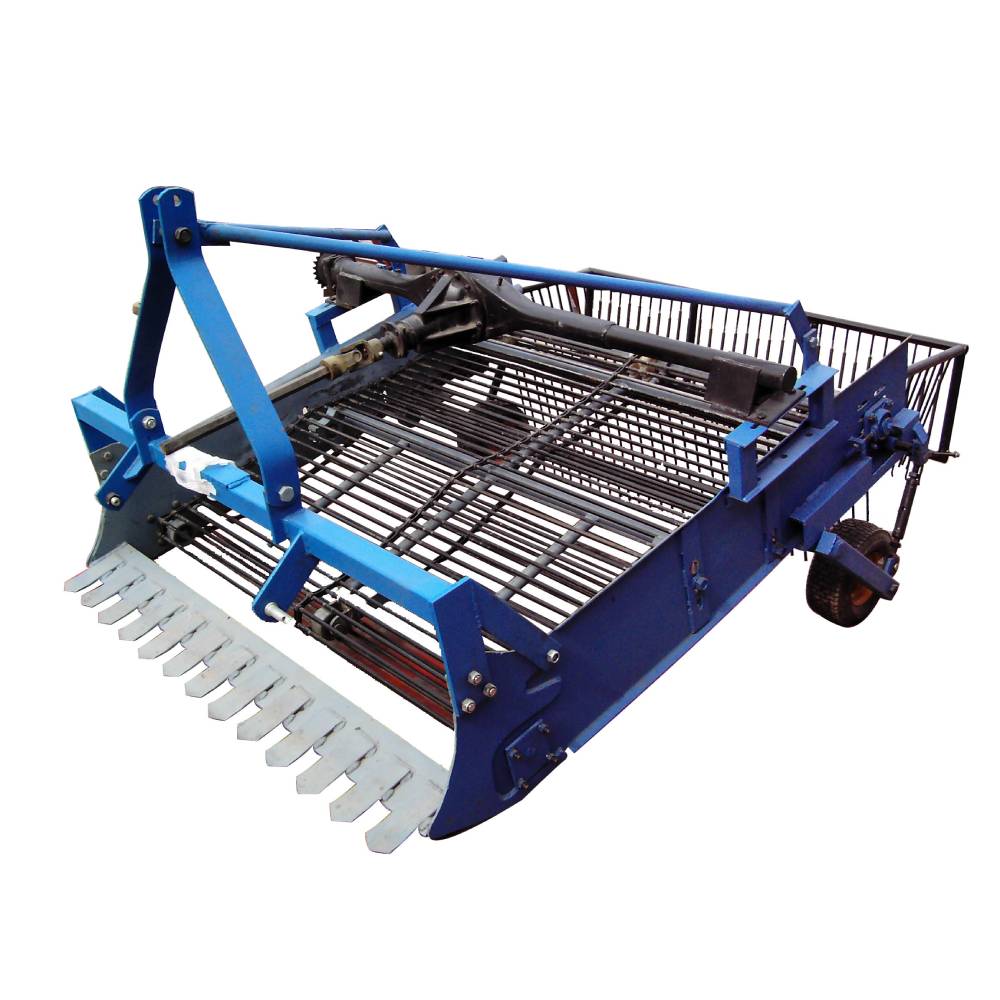

Tractor-Mounted Potato Harvester
This 4U series potato harvester is designed for use with tractors that have rear or side power output shafts. The harvester uses a shovel to excavate the soil and separate the potatoes from the soil through a vibrating screen.
Technical Specifications
Overview
Efficient Potato Harvesting
The 4U series potato harvester is a robust, tractor-mounted agricultural solution designed for efficient root crop extraction. By utilizing the tractor's power take-off (PTO) shaft, the machine drives a specialized shovel to excavate soil and crops, which are then processed through a vibrating screen to separate the potatoes from the earth. This series offers multiple configurations to suit different tractor types and operational needs, ensuring reliable performance across various field conditions.
Technical Specifications
Model Comparison
| Model | Function | Matched Power (hp) | Working Width (m) | Weight (kg) |
|---|---|---|---|---|
| 4U-1 | Single (scattering) | 22-35 | 0.65 | 180 |
| 4U-1A | Single (hand tractor) | 8-15 | 0.56 | 100 |
| 4U-1B | Single (bunched) | 22-35 | 0.65 | 210 |
| 4UZ-1 | Single (vibrated) | 22-35 | 0.65 | 120 |
| 4U-2/2B | Double (bunched) | 50-80 | 1.65 | 400/500 |
Performance Metrics
Productivity
3 mu/h
Standard Models
8 mu/h
Double Row Model
Operational Parameters
- Working Depth
- 25 cm
- Row Spacing
- 50-80 cm
Compatibility
- Power Source
- Rear PTOSide PTOTractor-Mounted
