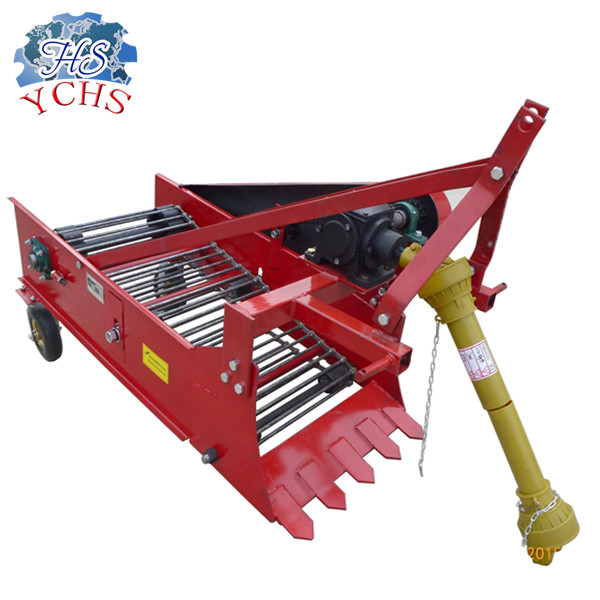

Tractor-Mounted Potato Harvester
This tractor-mounted potato harvester is designed for tractors between 20-70 HP. It efficiently digs potatoes from the soil and separates them, ensuring minimal damage to the harvested crop.
Technical Specifications
Overview
Efficient Root Crop Harvesting
The 4U series tractor-mounted harvester is designed for the efficient extraction of potatoes and garlic without damaging the crop. Utilizing a vibration sieve system, it effectively separates soil from the harvest, depositing clean produce behind the machine. This versatile implement is compatible with tractors ranging from 12 to 70hp, making it suitable for various farm scales while ensuring the soil remains ready for the next planting cycle.
Key Performance Metrics
Featured Specifications
540 r/min
Min PTO Speed
250 mm
Max Digging Depth
6
PTO Spline Count
Technical Models
Model Comparison
| Model | Rows | Width (mm) | Weight (kg) | Power (hp) | Linkage |
|---|---|---|---|---|---|
| 4U-1 | 1 | 600 | 160 | 20-30 | Type I |
| 4U-2 | 2 | 900/1300/1500 | 260/335/390 | 40/50/70 | Type II |
Operation Requirements
- Working Depth
- 100 mm
- PTO Rotation Speed
- 540-720 r/min
- PTO Shaft Spline
- 6 spline
Design Features
Harvesting Mechanism
- Vibration sieve for soil separation
- Digging shovel with tractor impetus
- Back power and side power output compatibility
- Three-point suspension mounting
- Compatible Crops
- PotatoGarlic
- Crop Protection
- Yes
