Tractor Mounted Flail Mower for Grass Cutting
This tractor-mounted flail mower is designed for cutting grass and vegetation on large properties. It attaches to 80-120hp tractors and features a protectable chain on the front and rear.
Technical Specifications
Product Overview
Professional Tractor-Mounted Rotary Mower

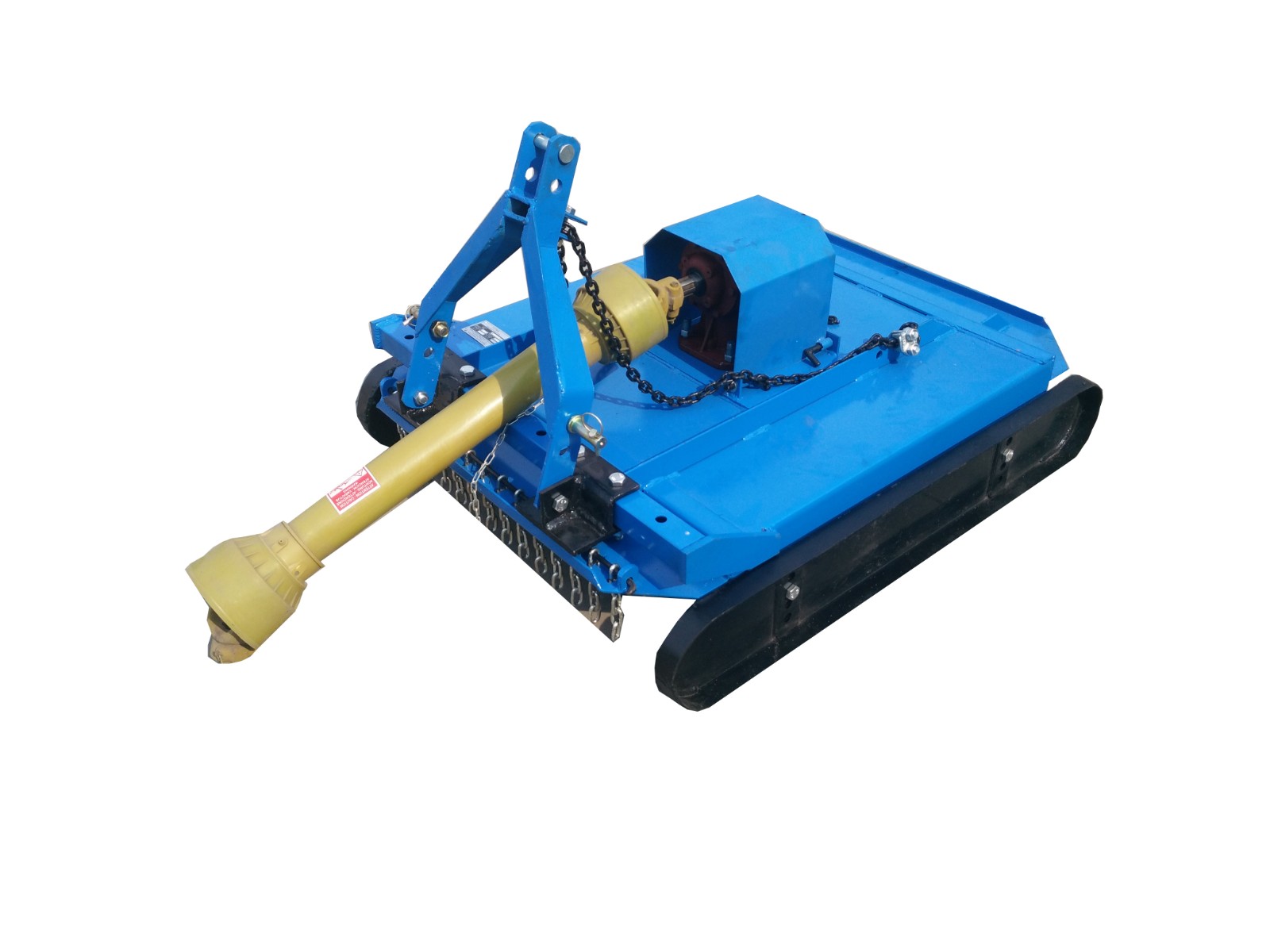

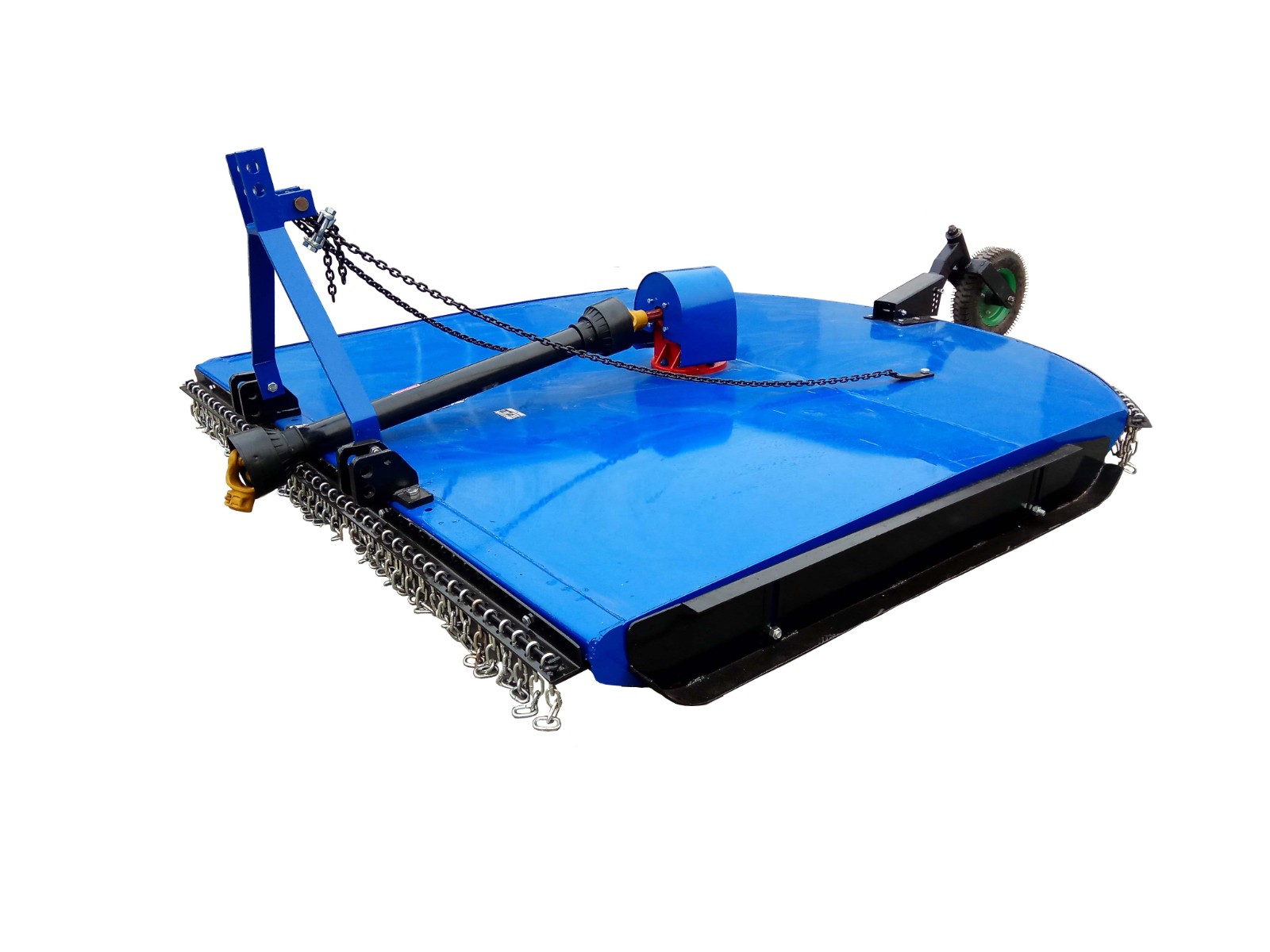

This rear-mounted rotary mower is designed for efficient vegetation management, featuring front and rear safety chains to protect operators during use. Driven by a robust 3-gearbox system, it offers a wide working width suitable for large farmlands, parks, and roadway verges. The unit is PTO-driven (540 rpm) and includes integrated rubber tires for easier transport and maneuverability.
Technical Specifications
Key Performance Metrics
540 r/min
PTO Rotation Speed
30 mm
Min Working Depth
50 mm
Max Working Depth
Model Specifications
| Model | Working Width (mm) | Total Weight (kg) | Matched Power (hp) |
|---|---|---|---|
| 9GX-0.8 | 800 | 160 | 25-35 |
| 9GX-1.0A | 1,400 | 350 | 25-40 |
| 9GX-1.5A | 1,600 | 430 | 40-60 |
| 9GX-1.8A | 1,800 | 480 | 70-80 |
| 9GX-2.1A | 2,100 | 510 | 90 |
Features & Compatibility
Compatibility & Design
- PTO shaft spline: 6 spline
- Compatible with 540 rpm PTO systems
- Optional clutch fitting available
- Blade options: 65Mn steel long knife or disc cutter
- Integrated rubber transport tires
- Safety Features
- Front safety chainsRear safety chainsProtective deck design
