Technical Specifications
System Overview

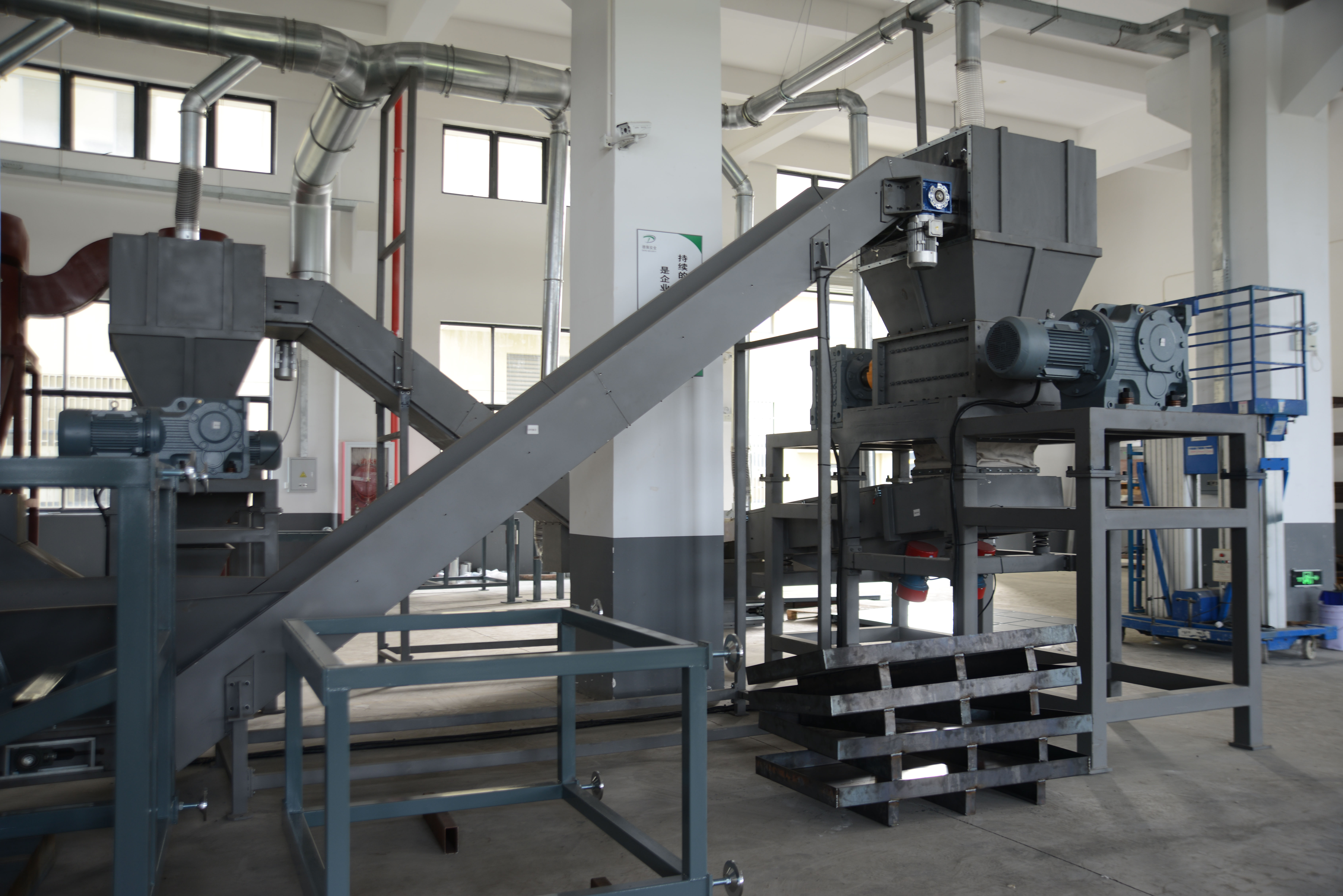

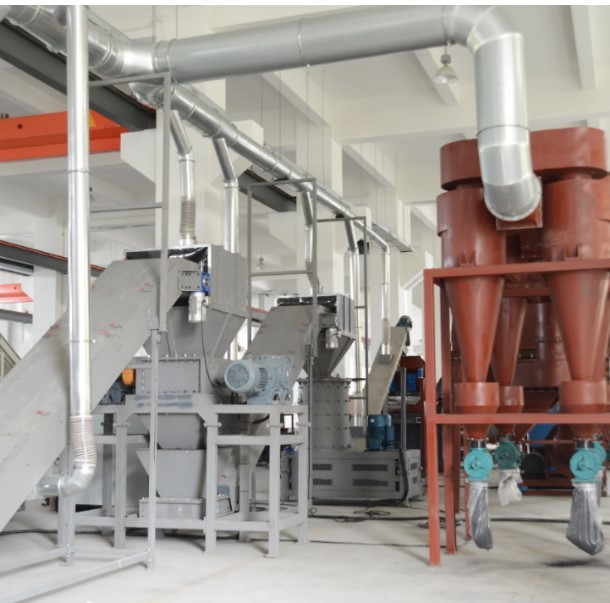

Professional Toner Cartridge Recycling Solution
This industrial recycling line is engineered to process waste toner cartridges into recoverable plastics, ferrous metals, and non-ferrous materials. By utilizing advanced mechanical and physical separation methods, the system achieves a toner collection efficiency of over 90% while significantly reducing environmental pollution. The modular design ensures stable, high-capacity operation suitable for large-scale waste management and resource recovery facilities.
- Recoverable Materials
- PlasticIronMagnetic MetalsAluminumCopperToner Powder
Performance Metrics
Key Operational Metrics
1,500 kg/hr
Max Capacity
90 %
Toner Collection
117.3 KW
Power Rating
Technical Specifications
| Parameter | Value |
|---|---|
| Shredding Speed | 12-15 r/min |
| Particle Size | < 20x50mm |
| Noise Level | 85-90 dB |
| Conveyor Width | 350mm |
| Shredding Width | 800mm |
Physical and Electrical
Dimensions & Power
- Dimensions: 21.8m x 7.3m x 4.5m
- Voltage: 380V
- Frequency: 50Hz
