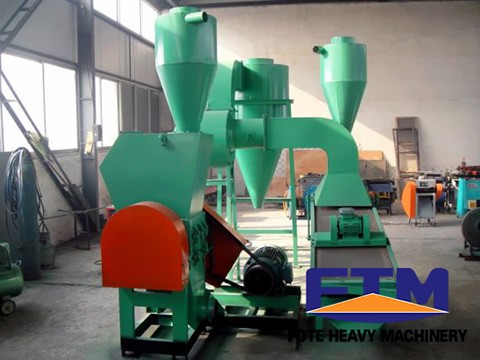

Cable Wire Recycling Machine
This cable wire recycling machine crushes scrap wire, separating the copper and plastic components. It is an environmental protection machine designed for efficient material recovery.
Technical Specifications
Overview
Professional Cable & Copper Recycling Solution
This high-efficiency recycling machine is designed to crush scrap copper wire and precisely separate copper from plastic insulation. It features strong adaptability, allowing for the simultaneous processing of wires with different specifications, which is a significant advantage over traditional machinery. With a focus on environmental protection, the system achieves a purity rate of up to 99.5% for finished products while utilizing advanced dust collection to ensure a clean working environment.
Performance Metrics
Key Performance Indicators
99.5 %
Product Purity
510 kg/h
Max Capacity
3,000 kW
Max Power
Technical Specifications
Production Line Model Comparison
| Model | Capacity (kg/h) | Total Power (kw) |
|---|---|---|
| 917-200 | 200-250 | 25/33 |
| 917-300 | 300-350 | 33/40 |
| 917-600 | 600-700 | 63/77 |
| 917-800 | 800-900 | 93/113 |
| 918-300 | 300-400 | 52 |
| 918-500 | 500-700 | 100 |
| 918-800 | 800-1000 | 150 |
| 919-500 | 300-500 | 80 |
| 919-800 | 500-800 | 130 |
| 919-1500 | 1000-1500 | 170 |
| 919-2000 | 1600-2200 | 240 |
| 919-3000 | 2000-3000 | 510 |
Operational Features
Separation Technologies
- Airflow Separation (Dry Type)
- Static Electricity Separation (Dry Type)
- Gravity Shaking Table (Wet Type)
- Advanced Dust Collection System
- Environmental Compliance
- Yes
- Control System
- Automated operation via integrated control panel
Material Compatibility
- Processable Materials
- Household WiresIndustrial CablesAutomotive Wiring HarnessesTrash WirePlug CordsFur Wire
