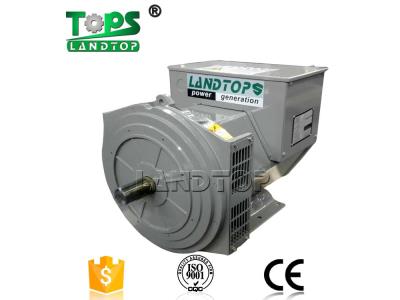

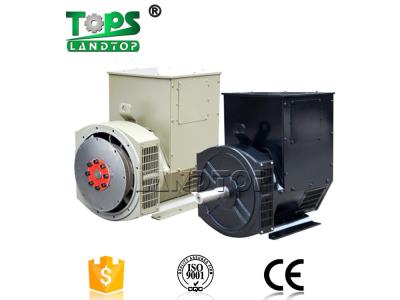

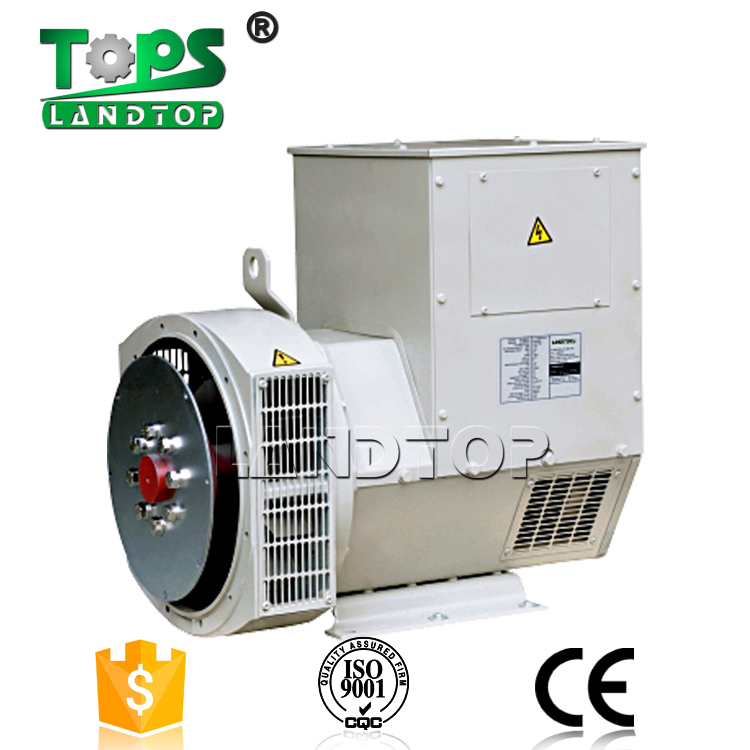

Three-Phase Double Bearing Brushless Alternator
This three-phase double bearing brushless alternator provides invariable excitation. It is easy to connect with a power network or other generators.
Technical Specifications
Product Overview
High-Performance Three-Phase Alternator
This three-phase double bearing brushless alternator is engineered for reliable and efficient power generation across diverse industrial and commercial applications. Its brushless design and double bearing construction ensure stable operation, reduced vibration, and minimal maintenance requirements. With a 2/3 pitch winding design to manage midline current and compatibility with various power networks, this unit provides a consistent and dependable electrical output.
Key Features
Technical Highlights
- Permanent magnetic generators for invariable excitation
- Standard 2/3 pitch windings to check excessive midline current
- Balanced rotor with double sealed ball bearings

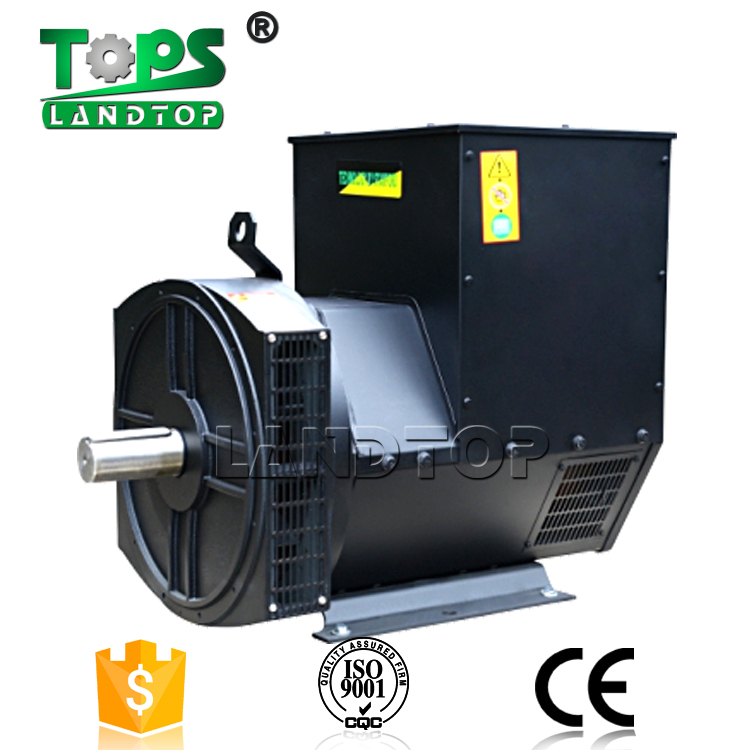

- Easy access to terminals, rotating diodes, and coupling bolts
- Wide range of flange adaptor and single bearing coupling disc options
Certifications & Standards
- Certifications
- CEISO 9001CQC
Warranty & Support
Standard Warranty Terms
The warranty covers 12 months or 1000 running hours, whichever occurs first. Coverage includes repairs for faults caused by the alternator itself, adhering to original manufacturer regulations. Please note that the warranty does not cover fragile parts, daily consumables, improper operation, or lack of maintenance.
Manufacturing Process
Manufacturing Steps
| Stage | Description |
|---|---|
| Lamination | Stamping of lamination |
| Rotor | Die-casting and balancing |
| Winding | Manual and semi-automatic insertion |
| Finishing | Vacuum varnishing and painting |
| Quality Control | 100% testing after each process and final inspection |
Commercial Terms
Payment Terms
- Typical Lead Time
- 30 days
