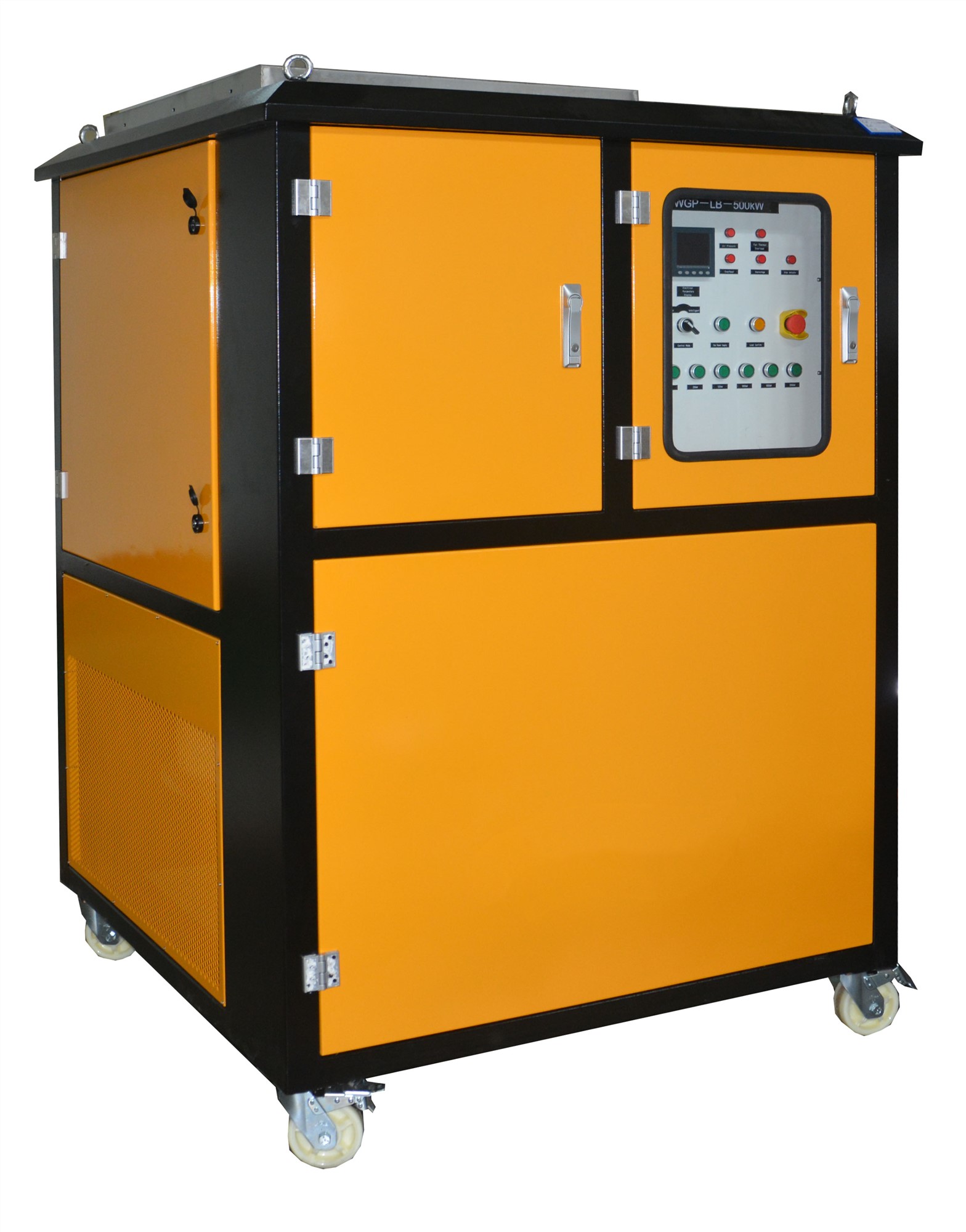

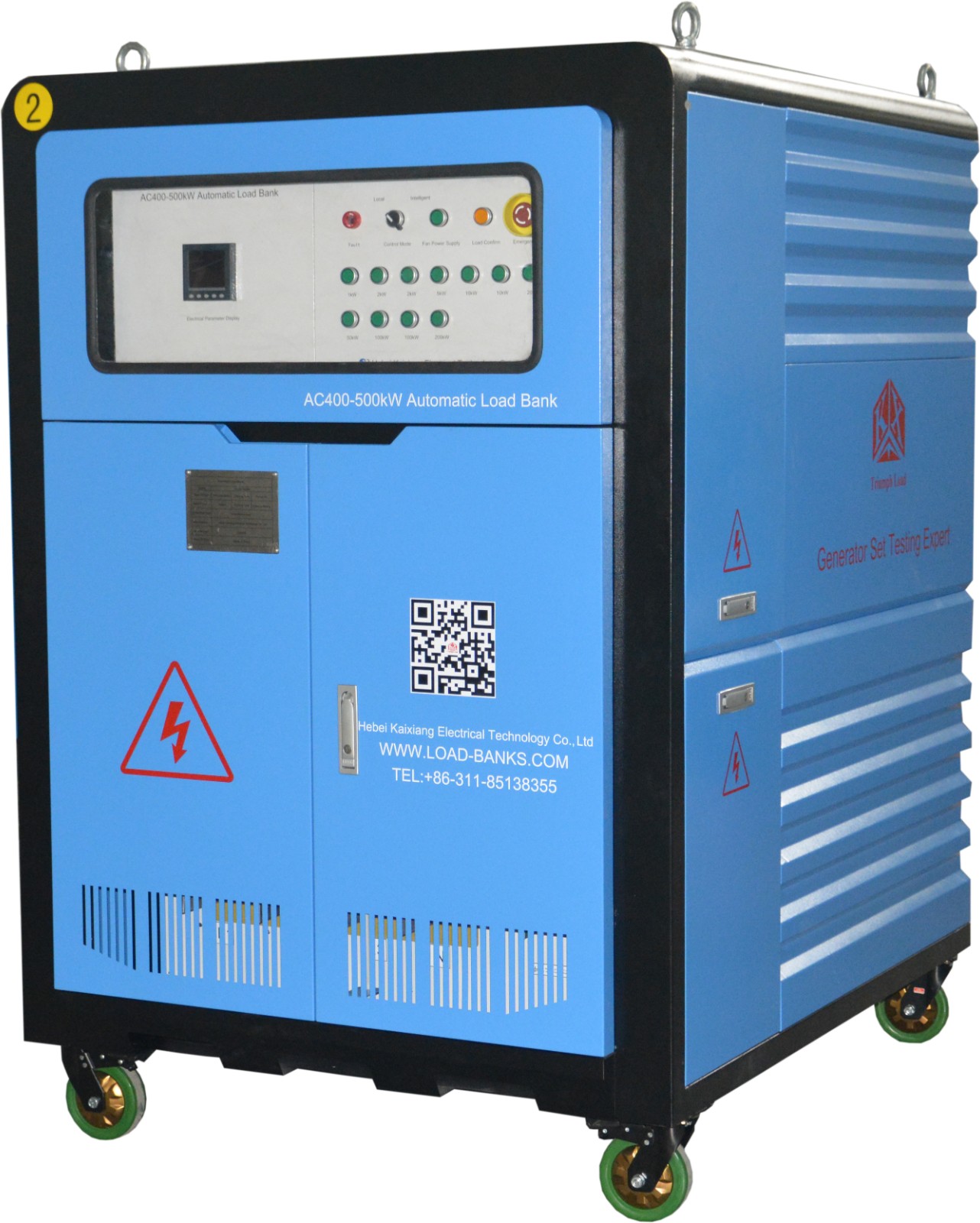

500kW Portable Load Bank
This portable load bank features a compact and lightweight design, ideal for use across multiple job sites or within a single facility. It is a solution for maintenance testing and commissioning of standby emergency power systems.
Technical Specifications
Overview
High-Capacity Portable Power Testing
The 500kW Portable Load Bank is a high-performance resistive testing solution designed to simulate real-world electrical loads for power supply verification. This self-contained unit provides a rigorous test regime for equipment ranging from 1kW to 60MW, converting electrical energy into heat through precision power resistors. Its portable design, featuring heavy-duty casters and lifting rings, makes it an ideal choice for on-site commissioning, maintenance, and troubleshooting of critical power systems.
Core Performance
Rated Power
500 kW
Maximum Capacity
- Load Type
- Resistive (AC Load Bank)
- Voltage Specification
- AC400V
Applications
Compatible Systems
- Engine Generators
- UPS Systems
- Storage Battery Systems
- Inverters
- Ground Power Units (GPU)
- Aircraft Power Generators
- Wind and Hydro Generators
Control & Safety
Safety Systems
- Thermal Overload Protection
- Safety Interlocks
- Forced Air Cooling
- Control Interface
- Digital MeteringLoad Step SwitchesAutomatic Control ModeElectrical Parameter Display
Physical Design
Mobility & Handling
Heavy-duty CastersLifting RingsPortable Type
- Enclosure Options
- Standard portable casing with options for stainless steel or custom paint finishes.
Technical Identification
- Model Reference
- WGP-LB-500KW
