Three-Phase 102.5 kWh Lithium Battery Energy Storage System

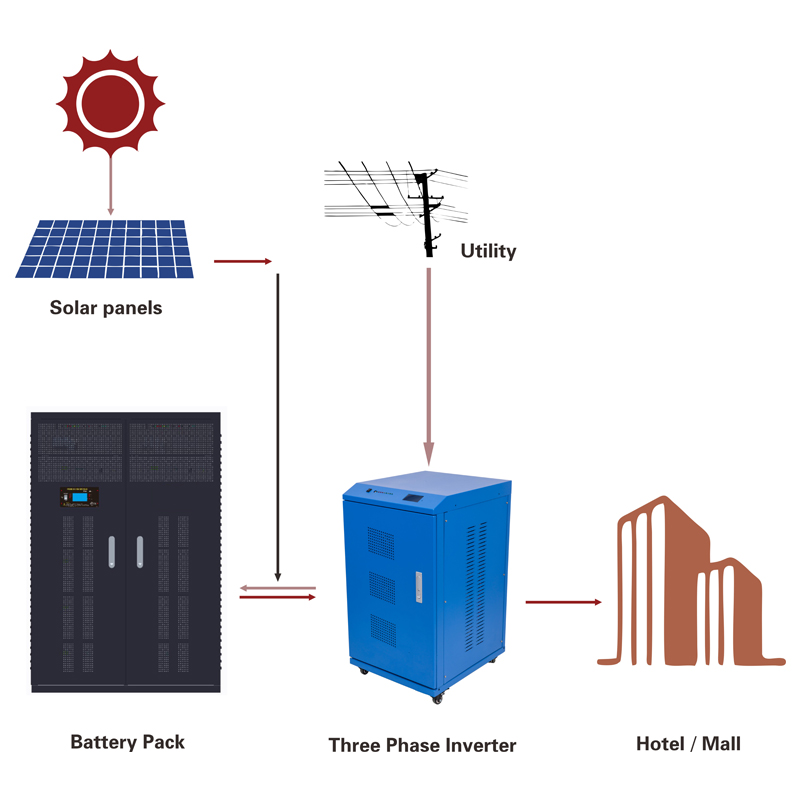

This three-phase lithium battery energy storage system is suitable for commercial and home use. The system integrates solar panels, a battery pack, and a three-phase inverter to provide a comprehensive energy storage solution.
![[DEMO] Three Phase Lithium Battery Energy Storage System - Image 1](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fdemo-three-phase-lithium-battery-energy-storage-system%2F1.jpg&w=1536&q=75)
![[DEMO] Three Phase Lithium Battery Energy Storage System - Image 2](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fdemo-three-phase-lithium-battery-energy-storage-system%2F0.jpg&w=1536&q=75)
Technical Specifications
Product Overview
Comprehensive Energy Storage Solution

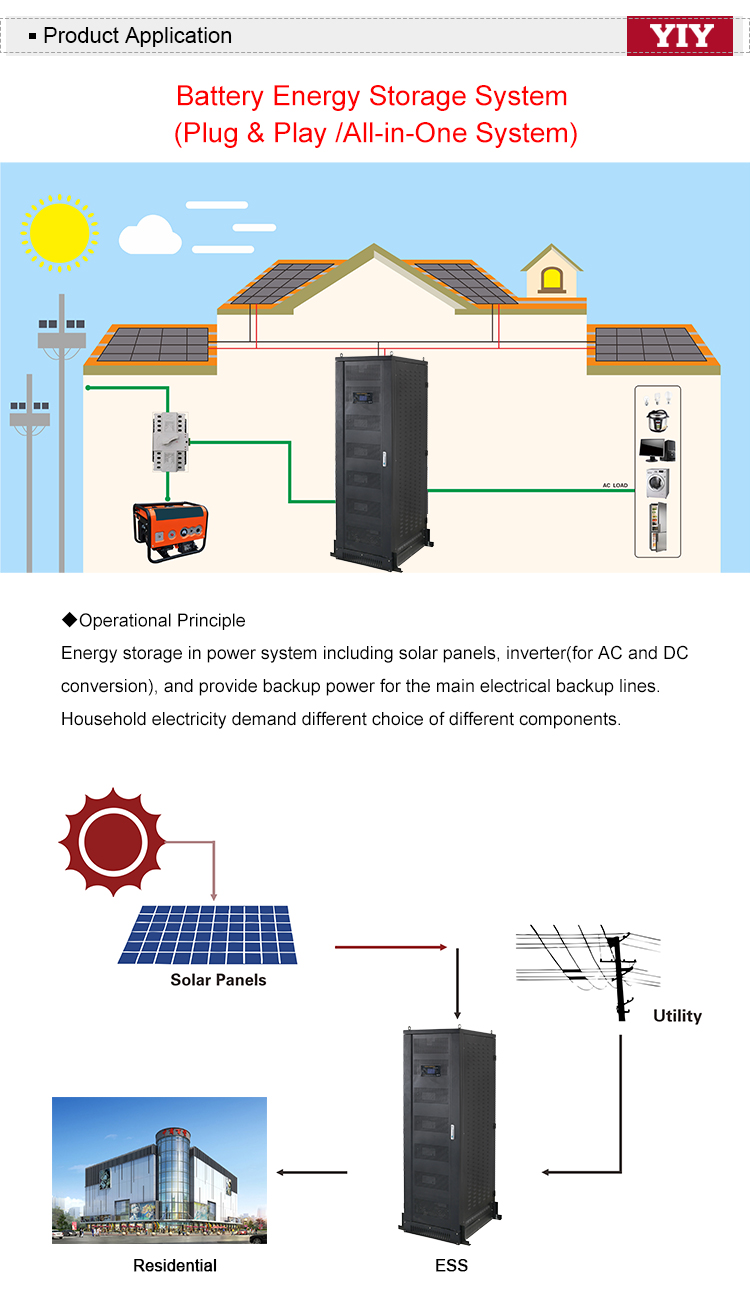

This Three-Phase Lithium Battery Energy Storage System is a versatile, plug-and-play solution designed for residential, commercial, and industrial applications. It integrates high-capacity LiFePO4 battery technology with a powerful 45kW three-phase inverter and built-in MPPT solar controllers. The system is engineered to provide reliable backup power, optimize solar energy usage, and support grid-tied or off-grid configurations for facilities like shopping malls, factories, and hotels.
Key Performance Metrics
102.5 kWh
Total Energy
45 kW
Inverter Power
2,000 Ah
Battery Capacity
Battery Specification
Battery Chemistry
LiFePO4Lithium Iron Phosphate
Charging & Discharging
| Parameter | Value |
|---|---|
| Rated Charging Voltage | 56.0VDC |
| Rated Charging Current | 450A |
| Rated Discharging Current | 2000A |
- Rated Voltage
- 51.2 VDC
- Configuration
- 10.24 kWh * 10 units
Three Phase Inverter
Inverter Performance
- Pure sine wave output
- Peak efficiency >88% (Inverter Mode)
- Line mode efficiency >95%
- Power Factor: 0.9-1.0
- Total Harmonic Distortion (THD) <3%
- Frequency: 50/60Hz ± 0.3Hz
- Output Voltage Options
- 380VAC400VAC415VAC220VAC (L-N)
Solar MPPT Controller
Charging Voltages
- Fast Charging: 56.4V
- Float Charging: 54V
- MPPT Configuration
- 60A * 8 Units
- PV Input Range
- 60-145VDC
System & Intelligence
Target Applications
- Commercial Buildings
- Small Shopping Malls
- Factories
- Residential Complexes
- Grid-tied & Off-grid Storage
- Communication & Monitoring
- RS485CANRS232LCD Display
