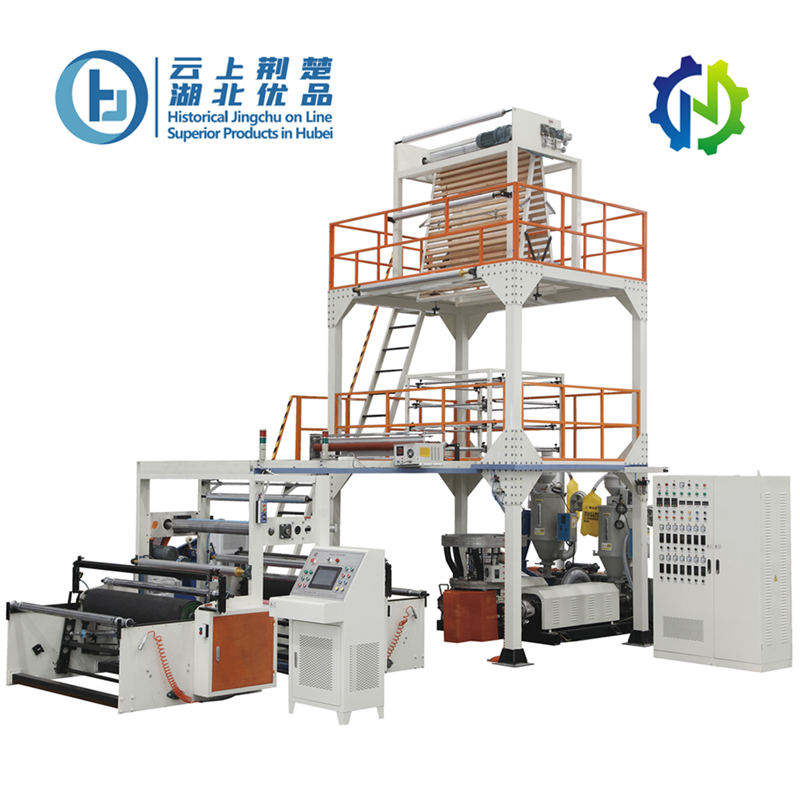

Three-Layer ABA Film Blowing Machine
This three-layer ABA film blowing machine produces high-quality plastic films using advanced extrusion technology. It creates films with enhanced strength, flexibility, and barrier properties for packaging and industrial applications.
Technical Specifications
Product Overview
Three-Layer ABA Film Blowing Machine
This high-performance three-layer ABA co-extrusion machine is engineered for the efficient production of HDPE, LDPE, LLDPE, and PLA films. Utilizing an advanced ABA structure, it allows for the integration of recycled materials into the middle layer while maintaining high tensile strength and barrier properties. It is an ideal solution for manufacturing high-quality packaging bags, agricultural films, and industrial liners with consistent thickness and superior roll formation.
Technical Specifications
Extruder Configuration
55 mm
Screw Diameter
28 L/D
Screw Length Ratio
Operational Performance
| Parameter | Value |
|---|---|
| Output Capacity | 50-90 kg/h |
| Film Width | 800mm-1100mm |
| Total Power | 50 kw |
| Max Winding Diameter | 500 mm |
Film Thickness Range
- LDPE: 0.012mm - 0.3mm
- HDPE: 0.01mm - 0.2mm
- Compatible Materials
- LDPEHDPELLDPEPLARecycled Materials
- Dimensions & Weight
- 6800mm x 2800mm x 5600mm, Total Weight: 4500kg
