Technical Specifications
Overview
High-Efficiency PP Ribbon Production

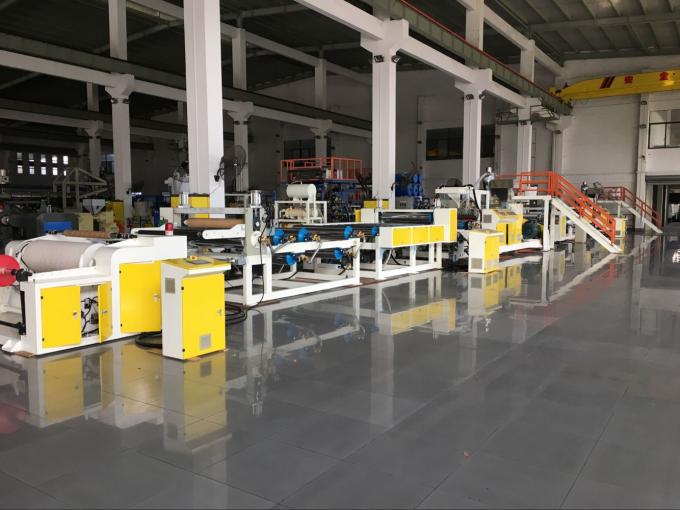

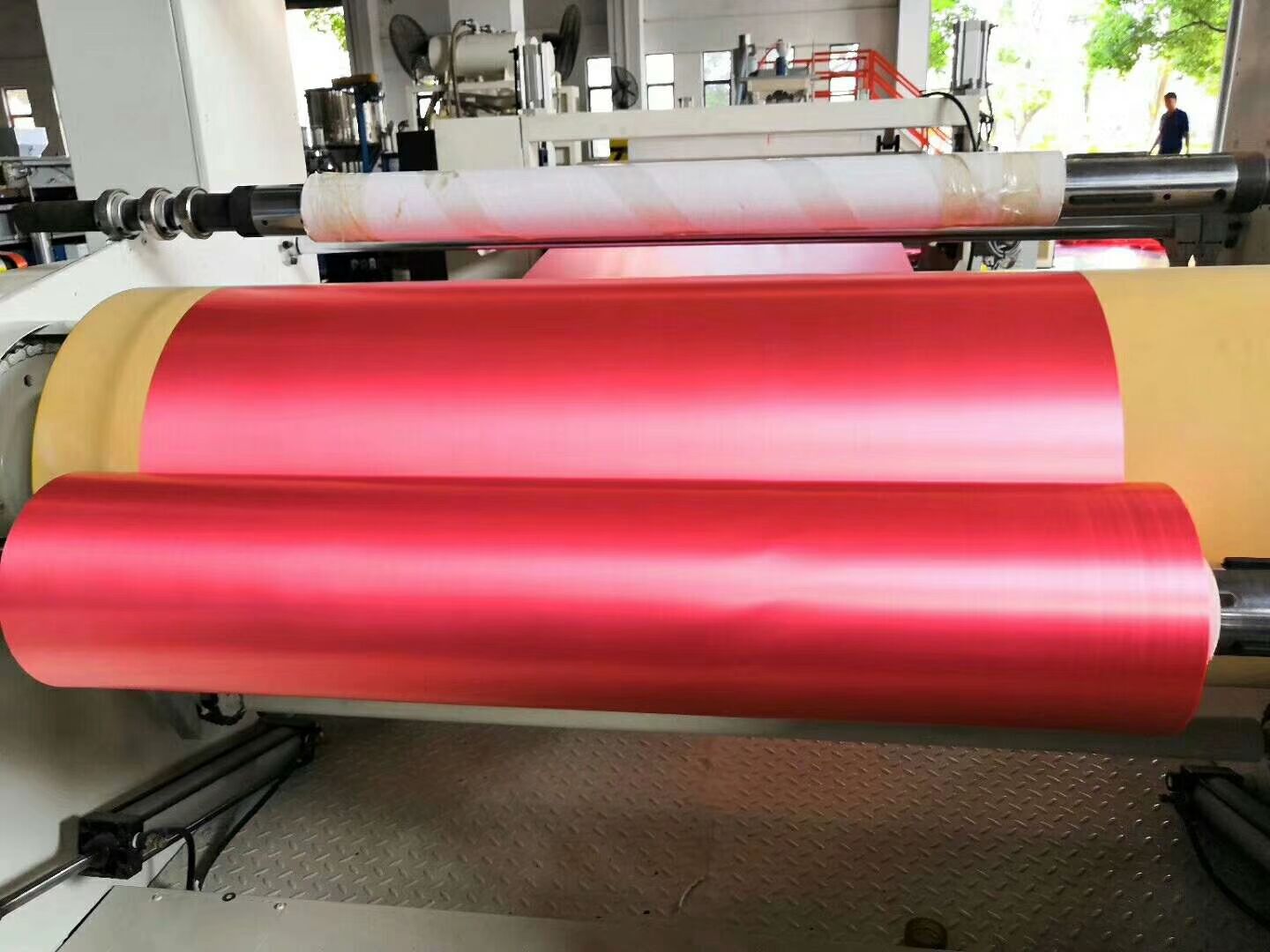

This 1000mm extrusion line is engineered for the high-speed production of polypropylene ribbon film, primarily used in gift packaging. Utilizing advanced T-Die extrusion and calender forming, the system ensures uniform film thickness with high precision and a shining finish. The design focuses on power efficiency and high output, capable of reaching production speeds up to 50 meters per minute.
Key Performance Metrics
Performance Highlights
50 m/min
Max Line Speed
160 kg/h
Max Extrusion Capacity
1,050 mm
Film Width (After Trim)
8 x
Stretching Times
Technical Specifications
- Model Designation
- AF/CPP-φ100-1050 mm
- Film Thickness Range
- 0.08 - 0.2 mm
- Layer Structure
- Single Layer (A)
- Product Width Range
- 800 - 1200 mm
System Components
Included Machine Units

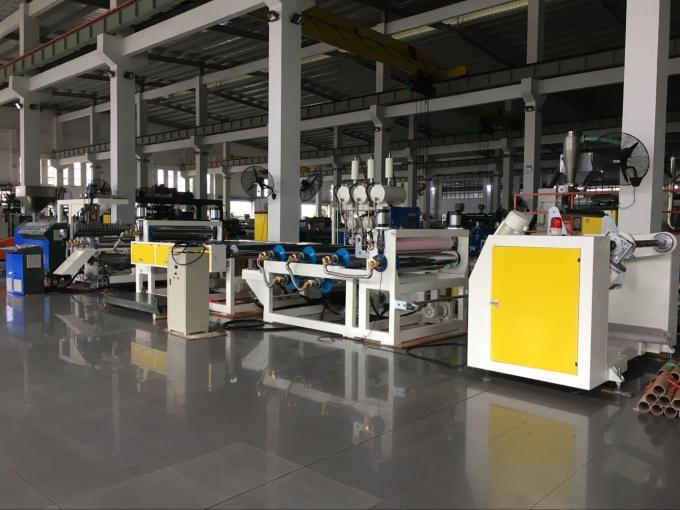

- Extruder Unit
- Extrusion Die Head
- Casting Unit
- Stretching System
- Winding Unit
- Control Unit
- Edge Collecting Unit
Features & Technology
- Core Technologies
- T-Die ExtrusionCalender FormingPower Saving DesignHigh Precision ThicknessTurn-key ProjectAutomatic Tension Control
Applications
Primary Applications
Gift PackagingRibbon Strap ProductionDecorative Films
