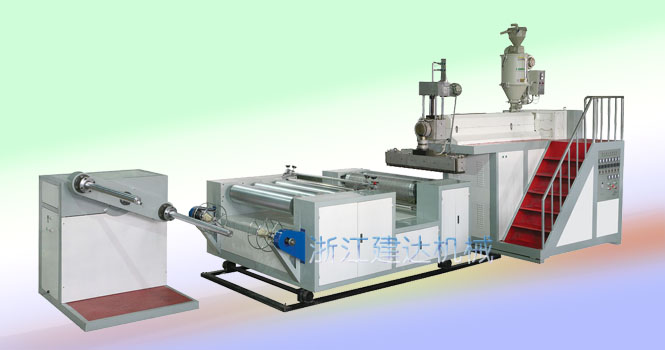

Air Bubble Film Production Machine
This machine produces polyethylene air bubble film for packaging applications. It forms air bubbles within the plastic film using a series of rollers and a forming cylinder.
Technical Specifications
Overview
High-Efficiency Air Bubble Film Production
This industrial-grade machine is engineered for the continuous production of 2-layer polyethylene air bubble film. It integrates essential components—including a main extruder, T-die, and precision forming rollers—to deliver consistent, high-quality cushioning material. Ideal for diverse packaging needs, this equipment supports reliable operation for businesses ranging from precise instrument manufacturing to large-scale furniture logistics.
Machine Components
System Components
- Main extruder unit
- Filter system
- T-die assembly

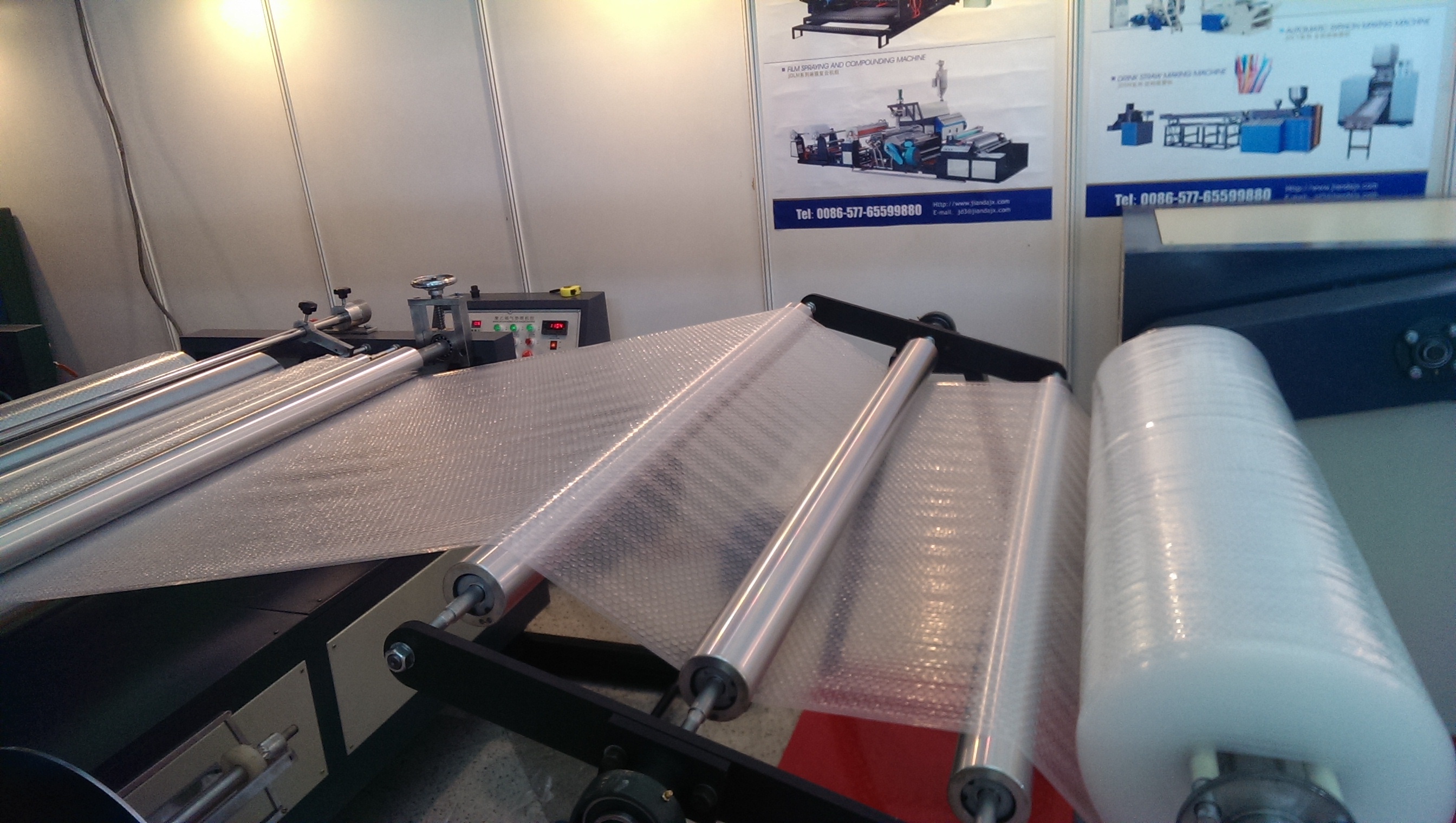

- Air bubble film forming roller
- Traction unit
- Winding station
Technical Specifications
Production Capacity Comparison
| Model | Screw Dia (mm) | Film Width (mm) | Output (kg/h) |
|---|---|---|---|
| JDPE-1000 | 65 | 1,000 | 55 |
| JDPE-1200 | 70 | 1,200 | 75 |
| JDPE-1600 | 80 | 1,500 | 110 |
| JDPE-2000 | 90 | 2,000 | 150 |
Power and Dimensions
| Model | Main Motor (kw) | Total Power (kw) | Weight (kg) |
|---|---|---|---|
| JDPE-1000 | 18.5 | 48 | 4,000 |
| JDPE-1200 | 22 | 55 | 4,200 |
| JDPE-1600 | 30 | 70 | 4,500 |
| JDPE-2000 | 45 | 105 | 7,000 |
Applications
- Suitable Applications
- Household Wares PackingPost Parcel PackingPrecise Instruments PackingBicycle PackingFurniture Packing
Power & Utilities
- Power Supply Standard
- 380V / 3 Phase / 50Hz
