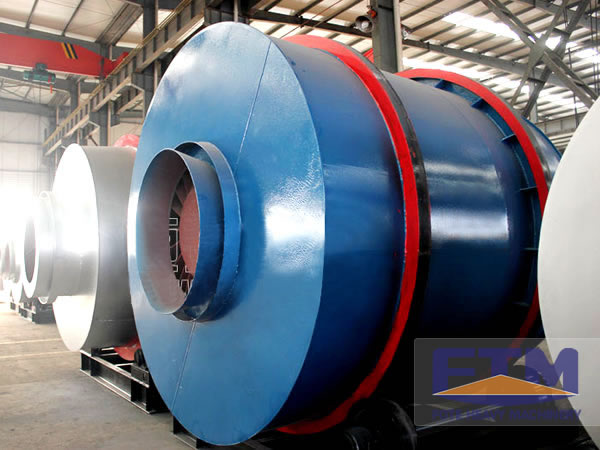

Three-Drum Rotary Dryer
The three-drum dryer features a compact structure, occupying half the space of a single drum dryer. It operates reliably with low energy consumption and high heat efficiency, providing effective material drying and simple automation control.
Technical Specifications
Overview
Compact High-Efficiency Drying
The three-drum rotary dryer is a continuous industrial dewatering unit designed for high heat efficiency and low energy consumption. Its unique multi-drum structure allows for a compact footprint, occupying only half the space of conventional single-drum dryers. The system is ideal for processing granular materials like sand used in the construction and mortar industries.
Key Features
- Key Benefits
- Compact footprintHigh heat efficiencyLow energy consumptionAutomated controlContinuous operation
Technical Specifications
Technical Data
| Size (Dia×L) | Capacity (t/h) | Motor (kw) | Weight (t) |
|---|---|---|---|
| Φ1.2×8.0 | 1.9~2.4 | 7.5 | 9 |
| Φ1.5×12 | 4.5~5.7 | 15 | 18.5 |
| Φ1.8×12 | 6.5~8.1 | 18.5 | 21.5 |
| Φ2.2×16 | 13.0~16.2 | 22 | 38 |
| Φ2.4×20 | 19.3~24.1 | 45 | 54 |
| Φ3.0×20 | 30.1~37.7 | 75 | 85 |
Operating Parameters
700 °C
Min Inlet Air Temp
800 °C
Max Inlet Air Temp
3 %
Min Obliquity
5 %
Max Obliquity
