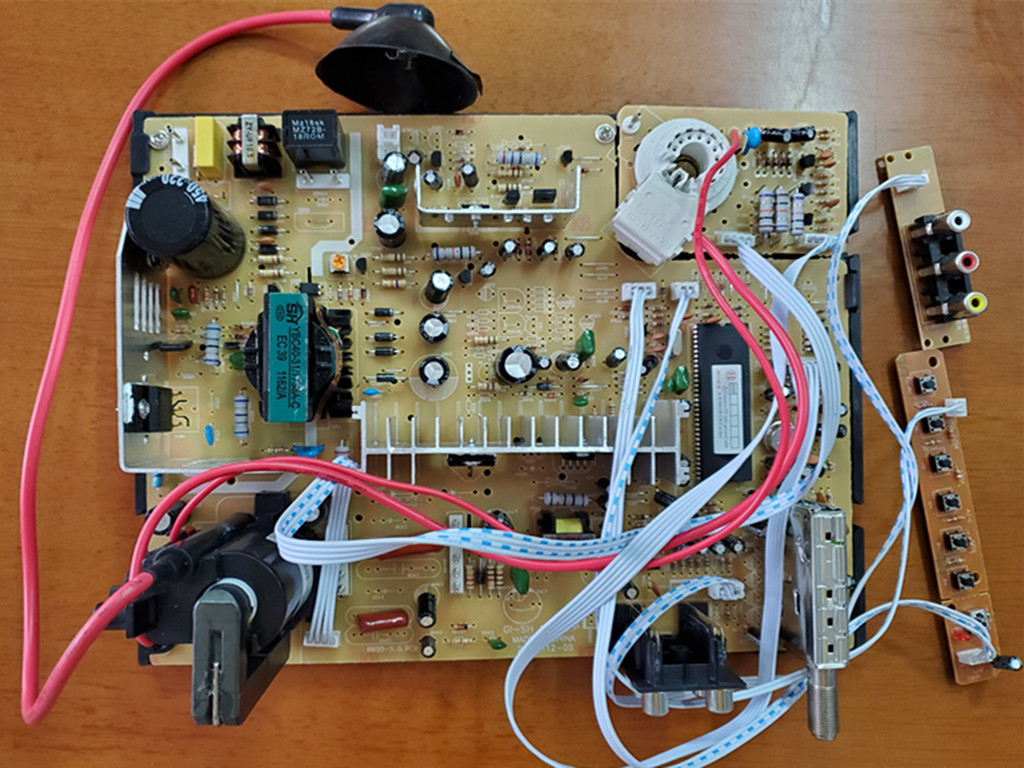

Television Mainboard
This television mainboard is a central processing unit for displaying images. It incorporates power supply circuitry, signal processing components, and input/output interfaces.
Technical Specifications
Product Overview
Universal Television Mainboard
This high-performance television mainboard is designed to support CRT displays ranging from 14 to 21 inches. It features advanced frequency synthesis and a robust power supply system compatible with a wide voltage range of 90V-260V. With comprehensive OSD language support and versatile connectivity options, this board is an ideal replacement or integration solution for analog television systems.
Technical Specifications
Power Supply Range
90 V
Min Voltage
260 V
Max Voltage
60 Hz
Frequency
- Physical Dimensions
- 198mm x 247mm
- Supported Screen Sizes
- 14 - 21 inch
Connectivity
Supported Video Inputs
- 2x AV Input
- S-VIDEO Input
- YUV Input
Features
Color Systems
PAL D/KPAL B/GNTSC 3.58NTSC 4.43SECAM
Smart Functions
- Fully-Auto 255 Channel Search
- Logo Customization
- Game and Calendar integration
- Sleep and On/Off Timer
- Zoom Function
- OSD Languages
- ChineseEnglishIndonesianVietnameseThaiKoreanItalianSpanishPortugueseArabicRussianTurkishFarsiFrench
Included Accessories
Included Components
- Power Cord
- Power Switch
- Speaker Cable
- Deflection Cable
- Remote Control
- Shelf
- Color Box
