Technical Specifications
Product Overview
Precision Cutting for Composite Materials

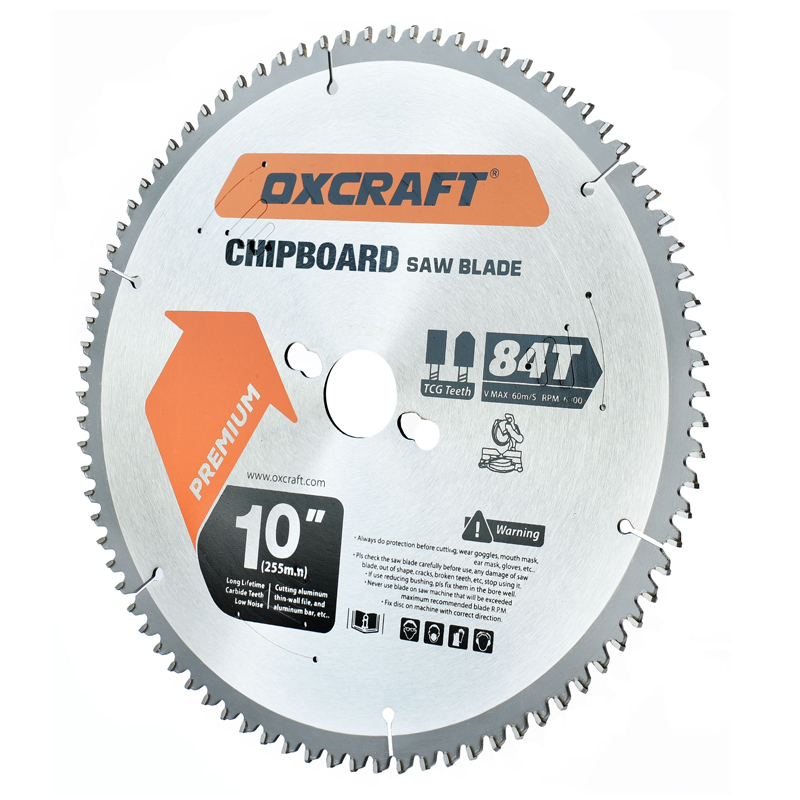

This circular saw blade is engineered for high-performance cutting of unprocessed chipboard, melamine, and plywood. Featuring a robust 65Mn steel punched plate and TCG (Triple Chip Grind) tooth geometry, it delivers clean, precise cuts with minimal splintering. Designed for durability and efficiency, this blade is an essential tool for professional cabinet making and woodworking applications.
Technical Specifications
- Plate Material
- 65Mn Steel
- Tooth Geometry
- TCG (Triple Chip Grind)
- Maximum Speed
- 60 m/s
- Suitable Materials
- ChipboardMelaminePlywoodAluminumThin-wall files
Available Sizes
Size Variants
| Item NO. | Diameter (mm) | Bore (mm) | Kerf (mm) | Plate Thickness (mm) | Teeth |
|---|---|---|---|---|---|
| 0130250 | 250 | 30 | 3.2 | 2.2 | 60 |
| 0130300 | 300 | 30 | 3.2 | 2.2 | 72 |
| 0130305 | 300 | 30 | 3.2 | 2.2 | 84 |
| 0130310 | 300 | 30 | 3.2 | 2.2 | 96 |
| 0130350 | 350 | 30 | 3.5 | 2.5 | 72 |
| 0130355 | 350 | 30 | 3.5 | 2.5 | 108 |
