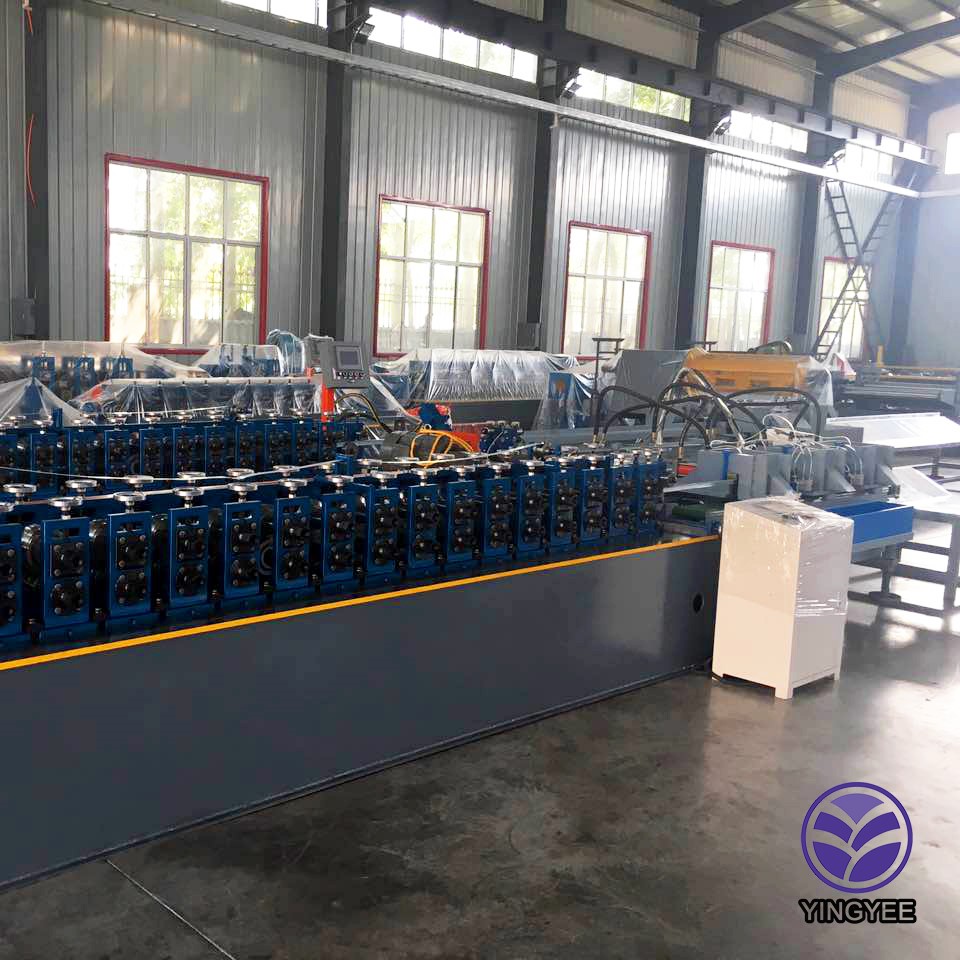

T-Ceiling Profile Production Line

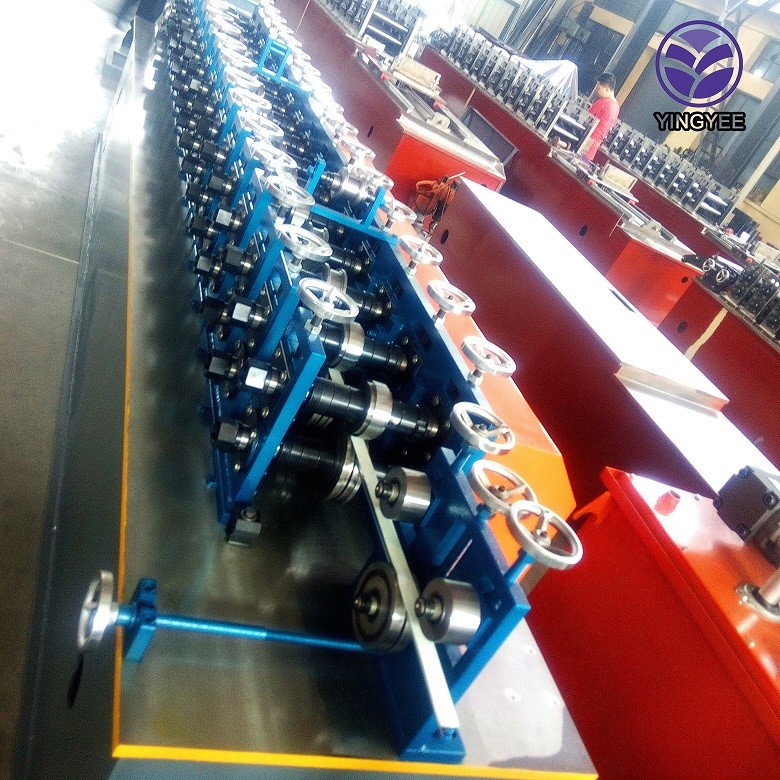

Automated machinery designed for continuous production of T-shaped ceiling profiles. It integrates multiple forming stations with precision rollers to gradually shape metal strips.
Technical Specifications
Product Overview
Industrial T-Ceiling Production Line
This automated roll forming production line is engineered for the high-efficiency manufacturing of T-ceiling profiles, including main tees, cross tees, and angle profiles. The system features a robust configuration with manual decoilers, multi-step forming stations, and precision cutting blades made from quenched Cr12 mold steel. Designed for high-volume environments, it offers flexible material compatibility and automated control systems to ensure consistent output quality and minimal production waste.
Main Tee Technical Specs
Main Motor Power
5.5 kw
Main Power
Operational Performance
| Parameter | Value |
|---|---|
| Material Thickness | 0.3-0.5 mm |
| Forming Speed | 25 m/min |
| Forming Steps | 16 |
| Roller Material | Cr12 |
Cross Tee Technical Specs
Performance Specifications
25 m/min
Max Speed
16 steps
Forming Steps
Angle Profile Specifications
Operational Details
- Material: Galvanized steel
- Thickness: 0.3-0.5mm
- Forming Steps: 8
- Production Speed: 0-40m/min
- Control System: PLC with servo tracking
General Construction
- Cutter Blade Material
- Cr12 Mould SteelQuenched TreatmentHRC 58-62
- Shaft Specifications
- #45 Steel, 50mm diameter with cementation
