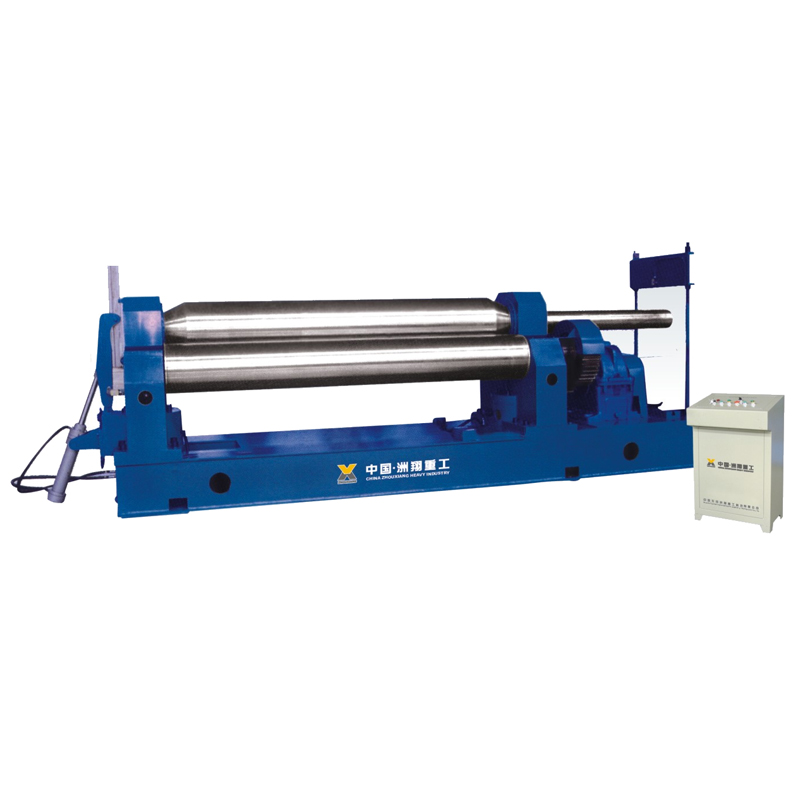

Symmetrical 3-Roller Plate Rolling Machine
This mechanical symmetrical 3-roller plate rolling machine features an upper roller that moves vertically, while the two lower rollers provide driving power. It is widely used in shipbuilding, aviation, and metal structure manufacturing for creating cylindrical shapes.
Technical Specifications
Product Overview
Industrial Precision Bending
This symmetrical 3-roller plate rolling machine is engineered for high-performance cylinder and cone production. It is widely utilized across machinery, metallurgy, and chemical construction industries for effective sheet metal forming. Featuring a robust design and precise control, it ensures consistent arc and cylindrical shapes for diverse industrial applications.
Performance Specifications
Key Performance Indicators
2,500 mm
Max Plate Width
12 mm
Max Bending Thickness
5.8 m/min
Rolling Speed
15 kw
Main Motor Power
Dimensions & Capacity
| Parameter | Value |
|---|---|
| Roller Working Length | 2600mm |
| Upper Roller Diameter | 260mm |
| Down Roller Diameter | 220mm |
| Distance Between Down Rollers | 340mm |
| Min Bending Diameter | 650mm |
| Machine Weight | 7.1 tons |
Capabilities
- Operations Supported
- Cylinder RollingCone RollingPre-bendingArc Forming
