Technical Specifications
Overview

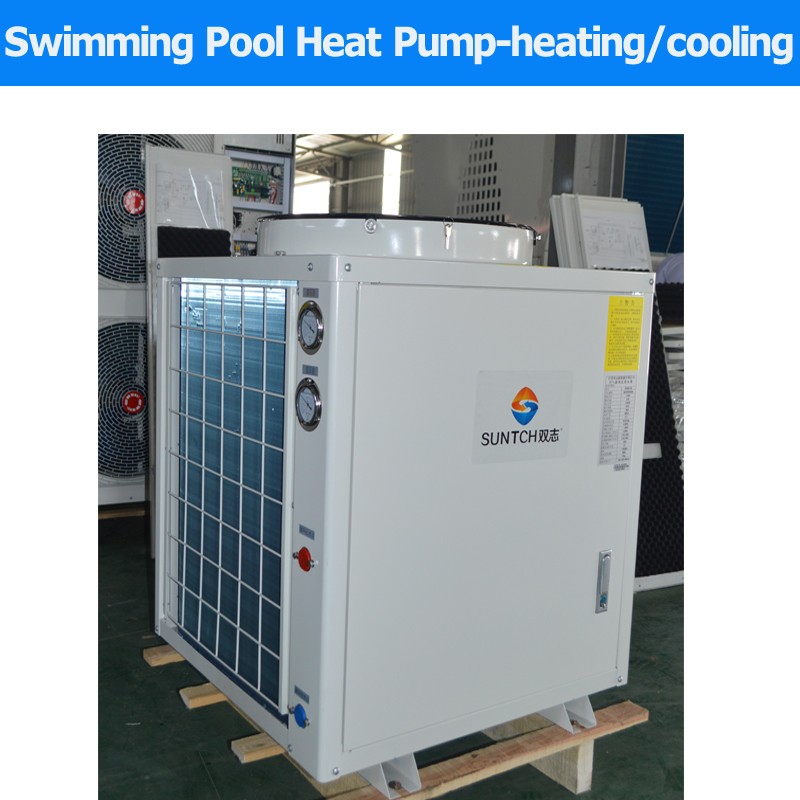

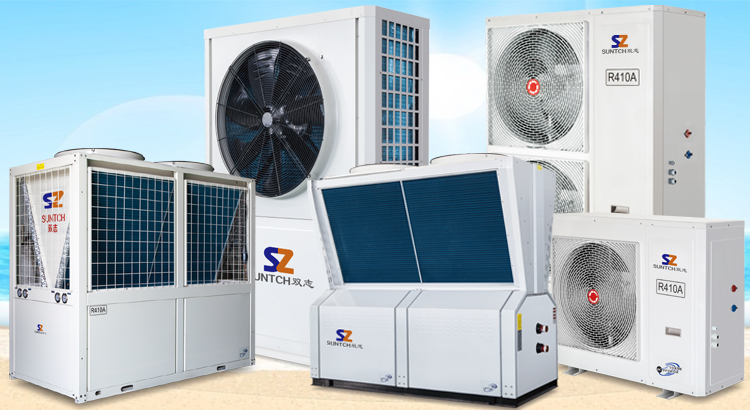

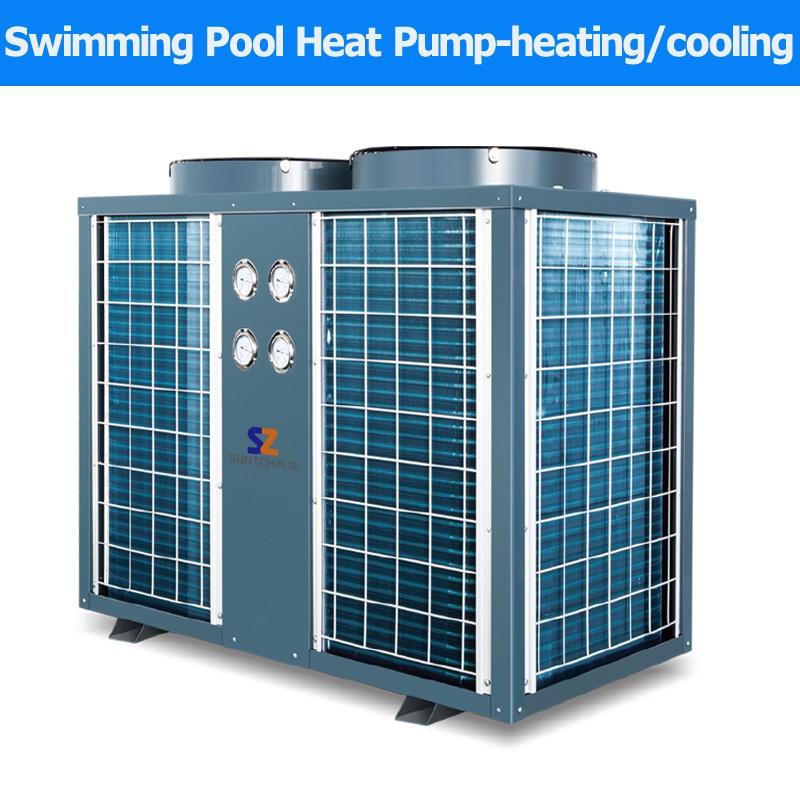

Professional Swimming Pool Heat Pump
This advanced swimming pool heat pump utilizes efficient heat exchange technology to extract warmth from the air, providing a cost-effective and safe solution for pool temperature control. Featuring durable titanium alloy heat exchangers, it is designed to resist corrosion from chlorinated water while ensuring no open fire or harmful gas emissions. The system offers significant energy savings, reducing operating expenses by 65% to 80% compared to traditional heating methods.
Technical Specifications
Performance Matrix
| Model | HP | Heating Capacity (kW) | Rated Input Power (kW) |
|---|---|---|---|
| KFCRS-12II | 3 | 12 | 2.4 |
| KFCRS-19II | 5 | 19 | 3.7 |
| KFCRS-35II | 10 | 35 | 6.9 |
| KFCRS-45II | 12 | 45 | 8.9 |
- Refrigerant
- R410A
- Power Supply
- 380V~440V 50Hz
Compatibility
Recommended Pool Volumes
- 12kW: 27.43 m³
- 19kW: 43.42 m³
- 35kW: 79.85 m³
- 45kW: 102.82 m³
Features
- Main Advantages
- Titanium Alloy ExchangerCorrosion ResistantEco-FriendlyEnergy SavingIndoor/Outdoor Suitable
