Technical Specifications
Overview
High-Performance Wetland Sugarcane Harvester

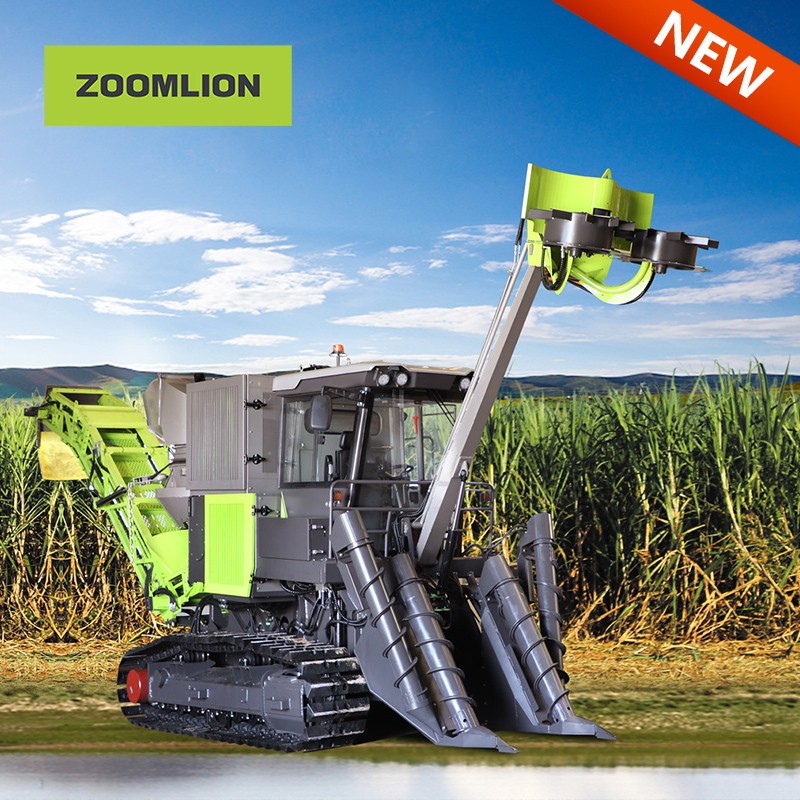

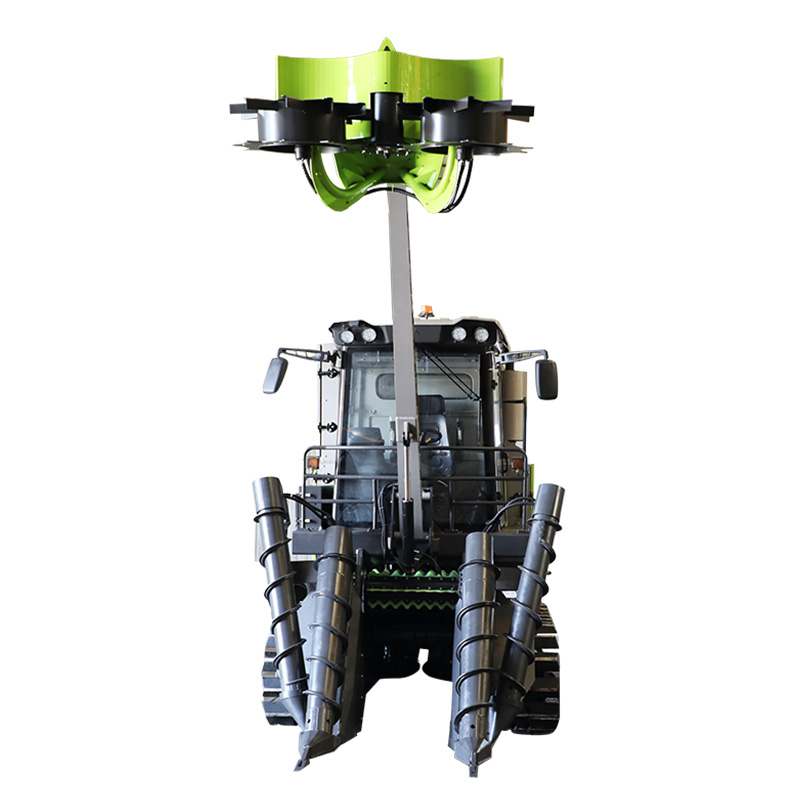

The AS60T is a specialized sugarcane harvester engineered for efficient operation in challenging wetland and swamp environments. Equipped with a 230hp high-pressure common-rail engine and a flexible steel track chassis, it provides superior mobility with a low ground pressure of 35Kpa. Its advanced hydraulic system and automatic variable-diameter conveying technology ensure smooth, reliable harvesting with minimized crop loss and debris.
Performance Metrics
Key Harvesting Metrics
15 t/h
Productivity
6 kg/s
Feeding Volume
230 hp
Engine Power
35 Kpa
Ground Pressure
Technical Specifications
Machine Dimensions
| Parameter | Value |
|---|---|
| Length | 11700 mm |
| Width | 2300 mm |
| Height | 4960 mm |
| Total Weight | 15140 kg |
Operating Conditions
- Suitable row spacing: ≥1500 mm
- Suitable ridge height: 0-200 mm
- Slope capability: ≤10°
- Ground clearance: 200-500 mm
Features
- Harvesting Capabilities
- Wetland optimizedAutomatic variable-diameter conveying170° rotation conveyorIntelligent malfunction diagnosisDual-travel plunger pumpAnti-skid function
