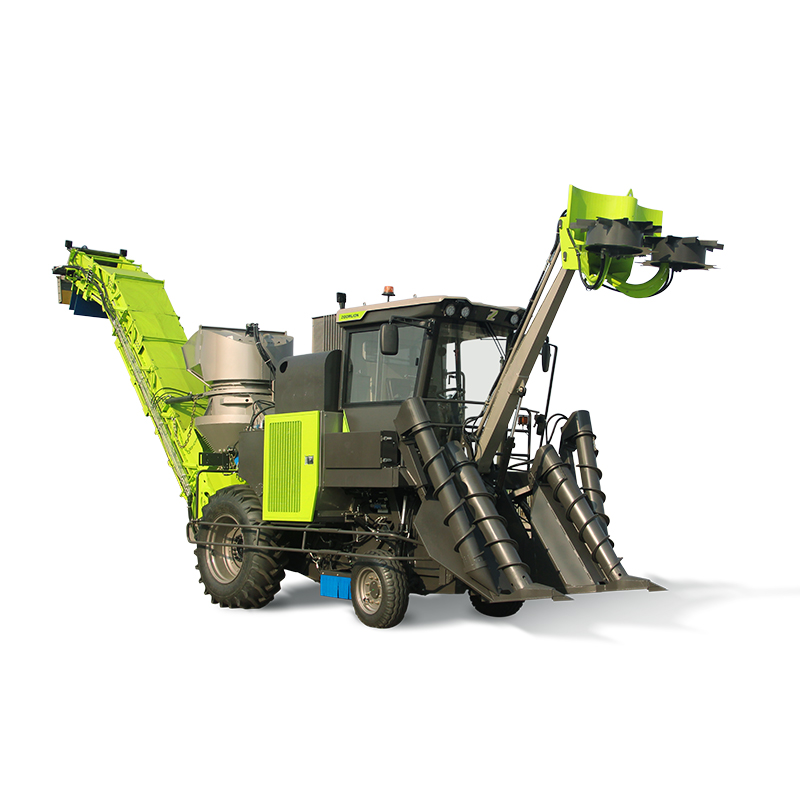

Sugarcane Harvester for Medium to Large Fields
This sugarcane harvester is designed for harvesting on medium to large fields with row spacing above 1.2m. It is also suitable for pineapple row planting.
Technical Specifications
Product Overview
High-Efficiency Sugarcane Harvesting
This advanced sugarcane harvester is designed to deliver cost-effective performance for medium to large-scale agricultural operations. Engineered to handle row spacings above 1.2m, it provides superior harvesting quality with low impurity and loss rates. The machine features robust power, intelligent control systems, and a user-friendly design to maximize productivity while minimizing maintenance downtime.
Performance Metrics
Key Performance Metrics
15 t/h
Productivity
5 kg/s
Feeding Capacity
8 %
Impurity Rate
7 %
Total Loss Rate
Technical Specifications
Operational Capabilities
| Feature | Value |
|---|---|
| Engine Power | 190 HP |
| Engine Displacement | 6.87 L |
| Max Driving Speed | 18 km/h |
| Suitable Slope | ≤ 10° |
| Row Spacing | ≥ 1200 mm |
| Ground Clearance | 265 mm |
Key Features
Advantages & Features

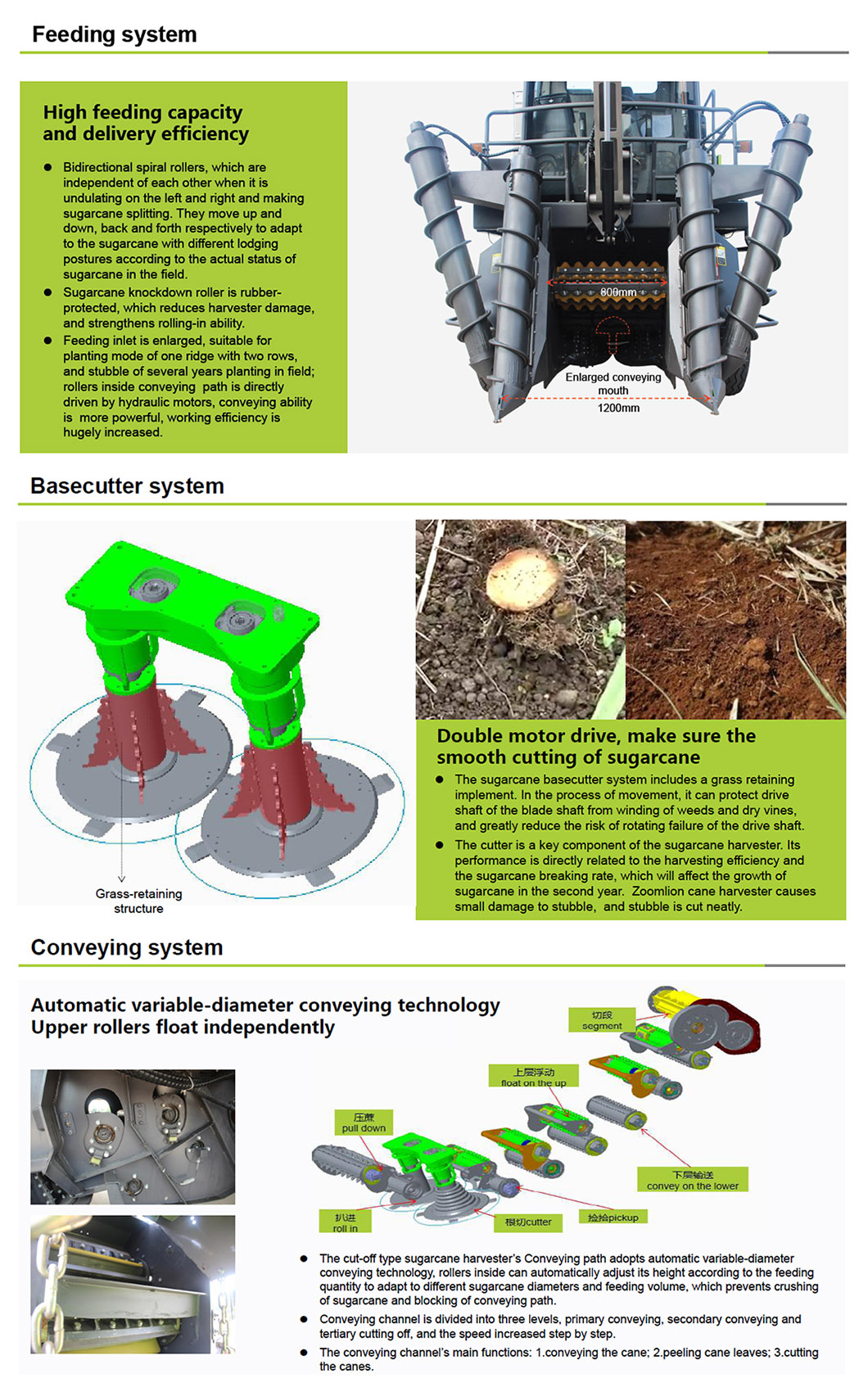

- Automatic variable-diameter conveying technology

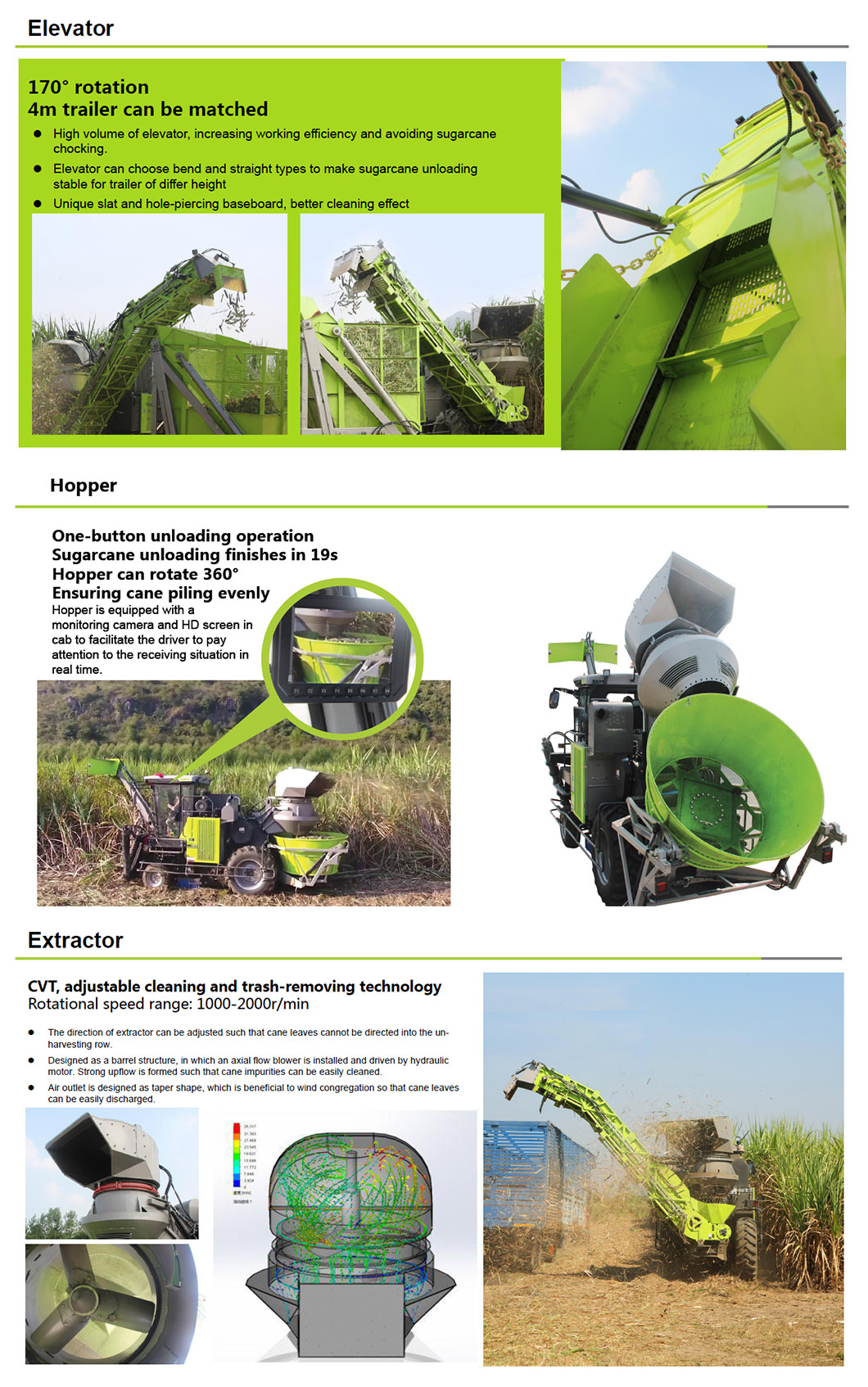

- One-button unloading operation (hopper model)

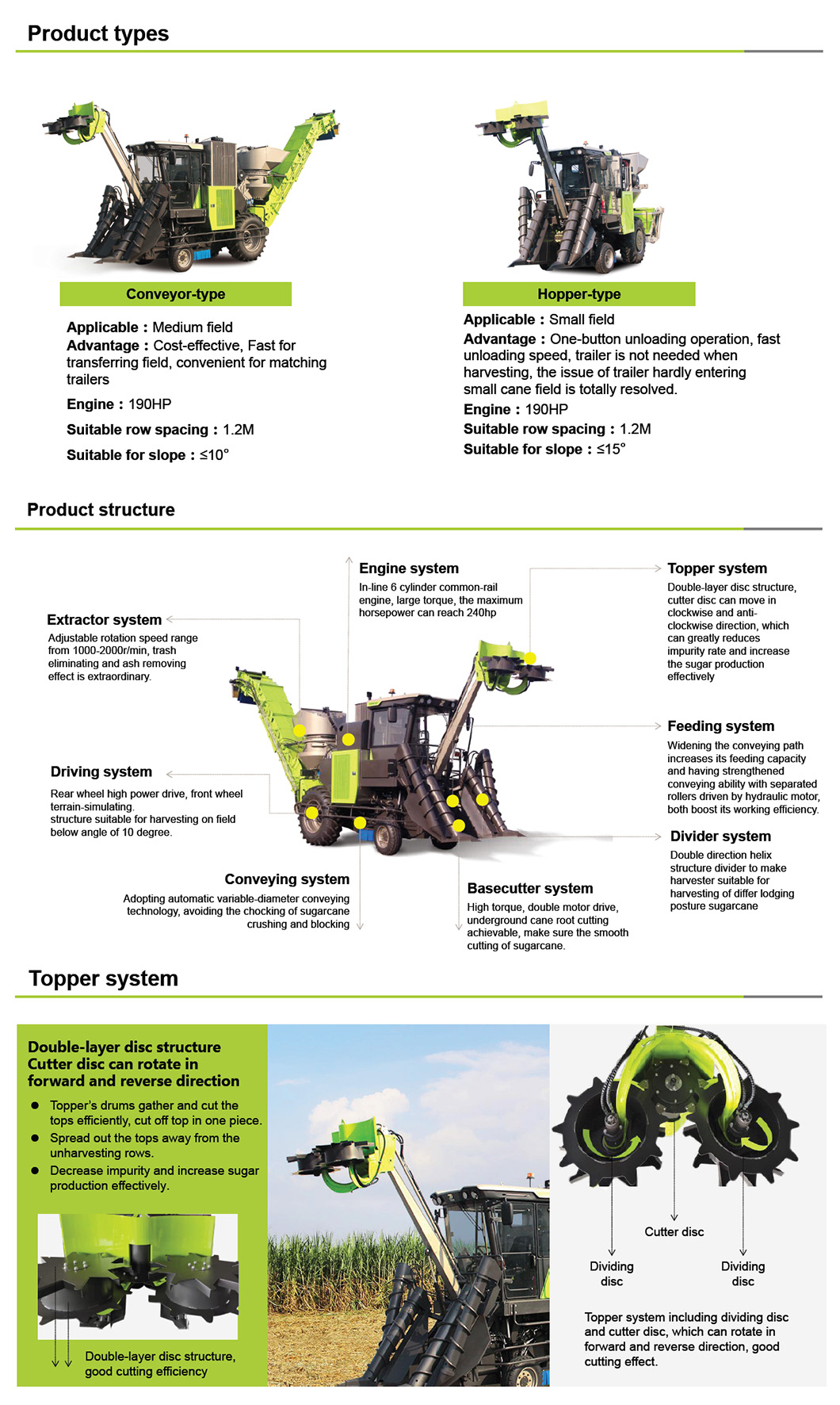

- Double-layer disc topper system
- Malfunction alarming and auto-diagnosis system
- Single joystick driving operation
Service & Maintenance
- Service Response
- 24-Hour Online Support15-Minute Response2-Hour Arrival48-Hour Backup Guarantee
