Technical Specifications
Product Overview

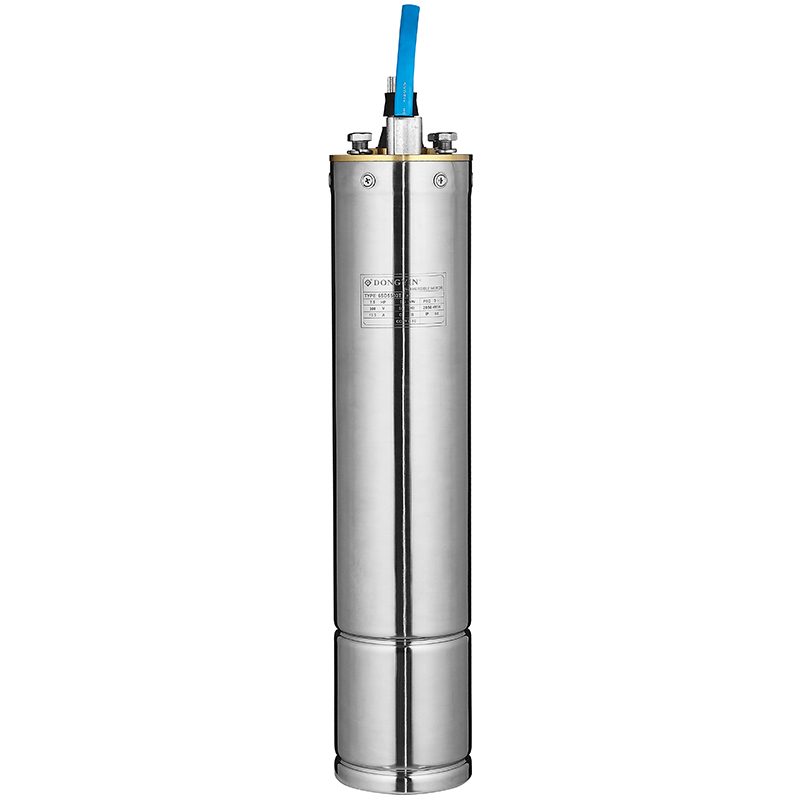

High-Performance Borehole Motor
This submersible electric motor is specifically engineered for demanding borehole water pump applications. Constructed with durable stainless steel, it offers excellent corrosion resistance and long-term reliability in deep-well environments. Designed for energy efficiency, it provides a robust solution for domestic water supply, agricultural irrigation systems, and various industrial water extraction needs.
Technical Specifications
Power Output
1.1 HP
Horsepower
1.5 KW
Power
Electrical Characteristics
- Voltage: 230 V
- Frequency: 50 Hz
- Rated Current: 10.3 A
Ingress Protection Rating
IP 68
- Material
- Stainless Steel
Performance Data
Flow vs Head Performance
| Flow (m3/h) | Head (m) |
|---|---|
| 1.5 | 100 |
| 3 | 94 |
| 4.5 | 88 |
| 6 | 82 |
| 7.5 | 76 |
| 9 | 70 |
| 11 | 64 |
