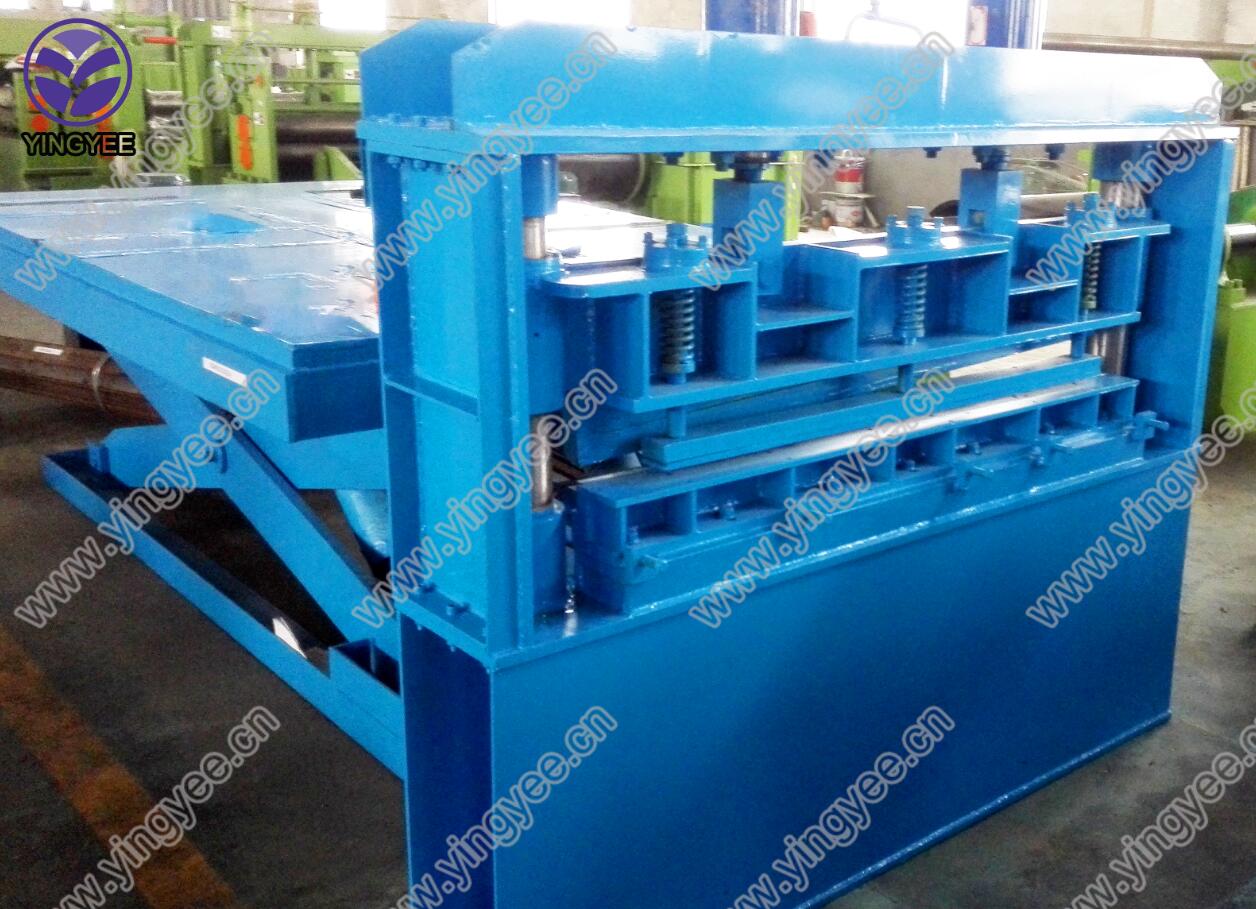

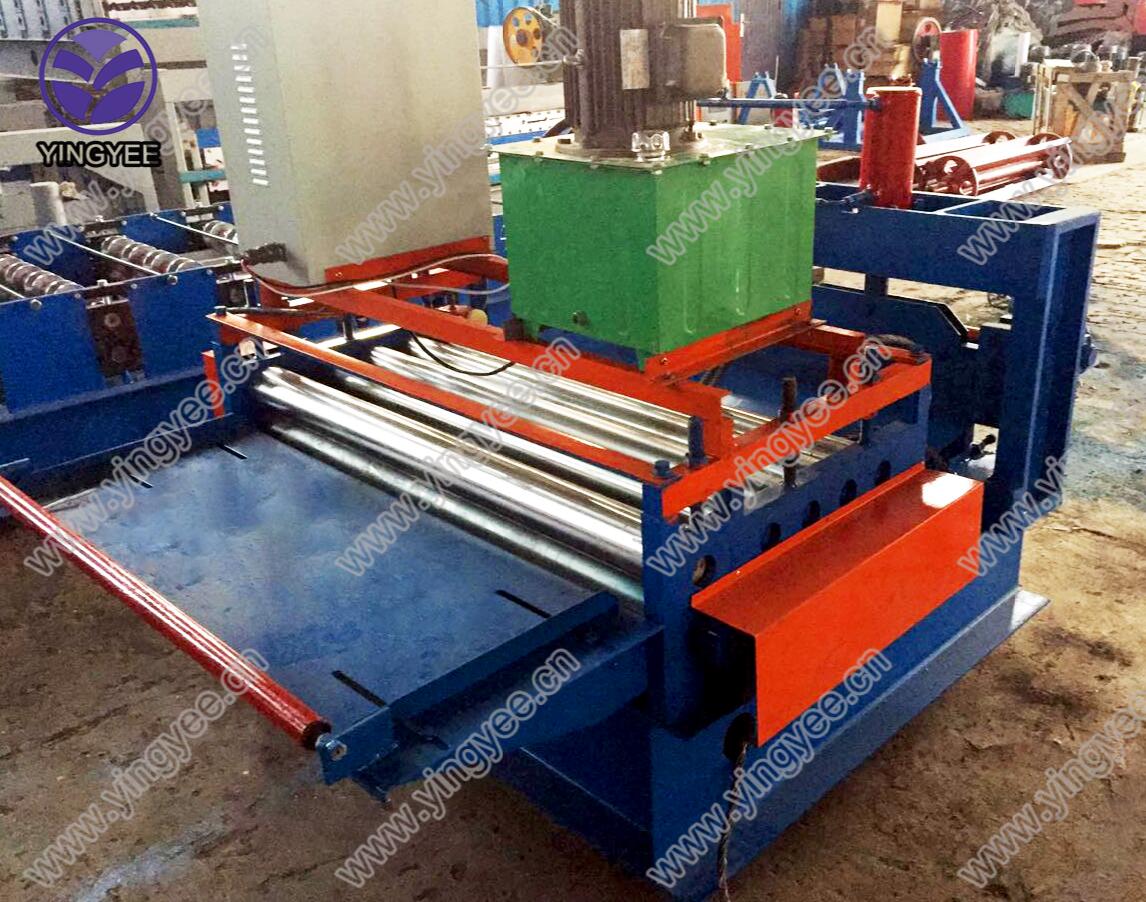

Straightening and Cutting Machine for Thin Materials
This straightening and cutting machine processes materials up to 1.5mm in thickness. It utilizes rollers for straightening and a cutting mechanism for precise length control.
Technical Specifications
Product Overview
High-Precision Thin Material Processing

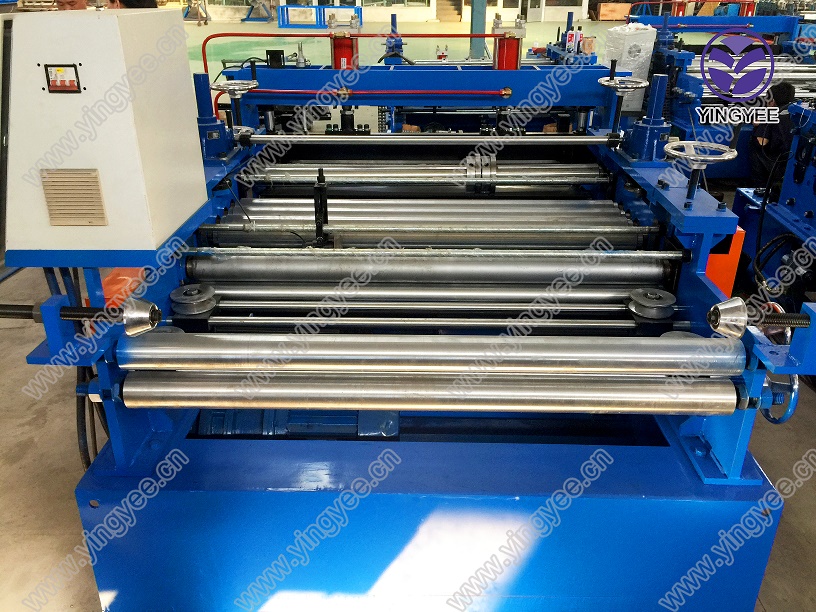

This high-precision straightening and cutting machine is engineered to handle materials with a thickness range of 0.3mm to 1.5mm. It integrates advanced traction and leveling functions, utilizing a set of traction rollers combined with four groups of leveling rollers to ensure uniform flatness. Built for industrial reliability, the machine features hard chromium-plated rollers for extended service life and a hydraulic motor for consistent performance.
Technical Parameters
Main Power Requirements
5.5 KW
Hydraulic Motor
415 V
Voltage
50 HZ
Frequency
- Compatible Material Thickness
- 1.5 mm
- Operating Speed
- 15 m/min
- Straightening Rollers
- 4 + 5 Configuration
- Manual Decoiler Capacity
- 5 T
Construction & Materials
- Shaft Material
- #45 Heat-Treated Steel
- Blade Material
- GCr12
Features
- Standard Features
- PLC Control SystemHard Chromium Plated RollersCylinder Lifting MechanismIntegrated TractionHydraulic Cutting
