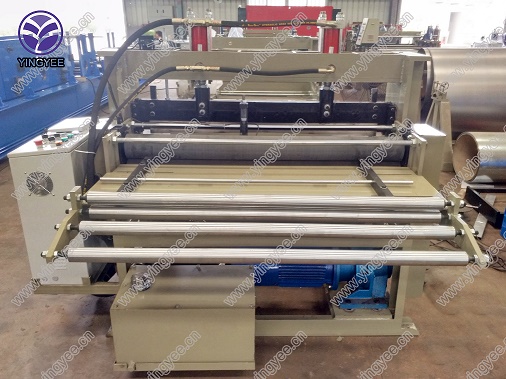

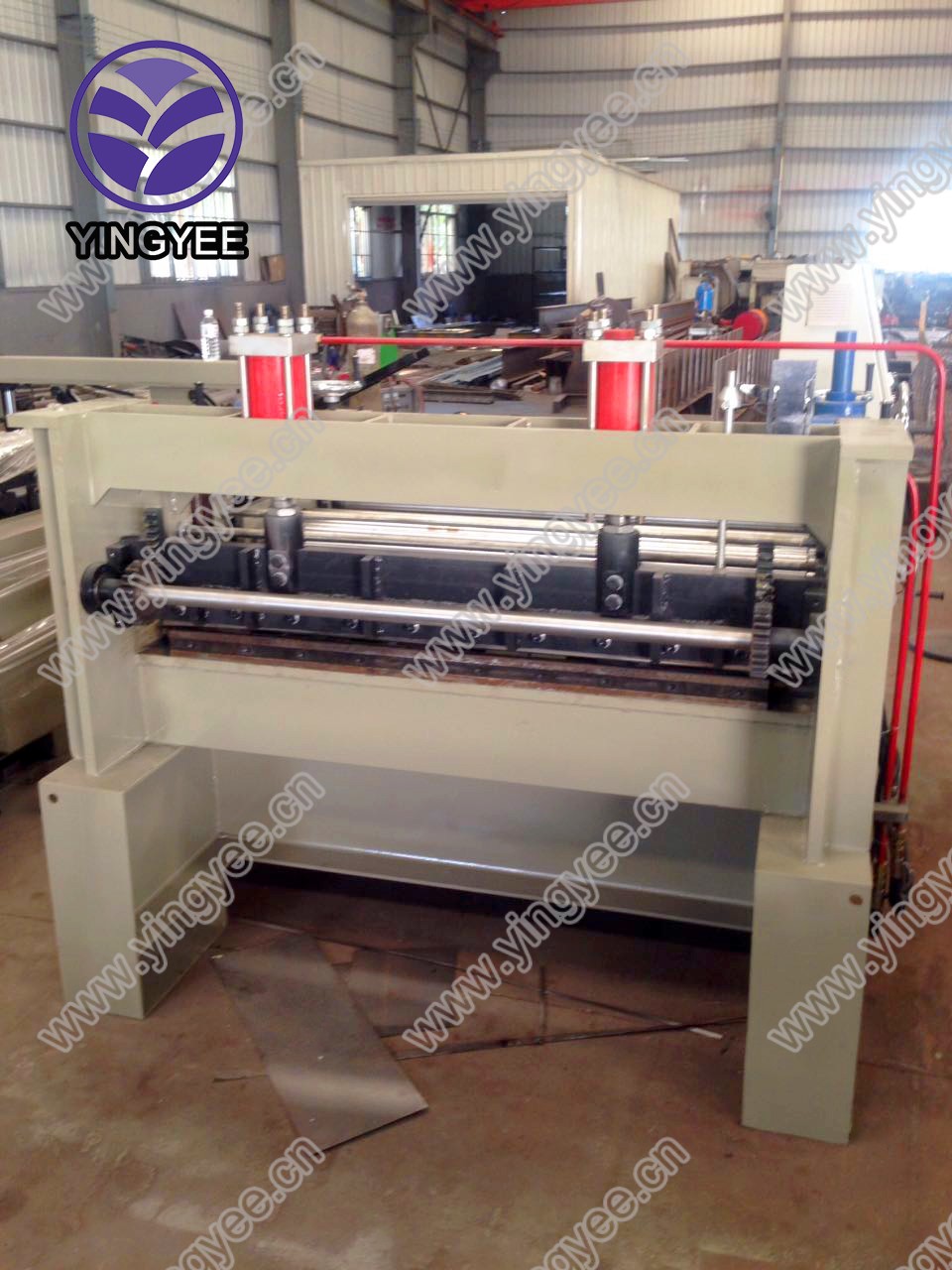

Straightening and Cutting Machine for Thin Materials
This straightening and cutting machine is designed for processing materials with a thickness of less than 1.5mm. It features precision rollers for straightening and a cutting mechanism for accurate length control.
Technical Specifications
Overview
Precision Straightening & Cutting Solution

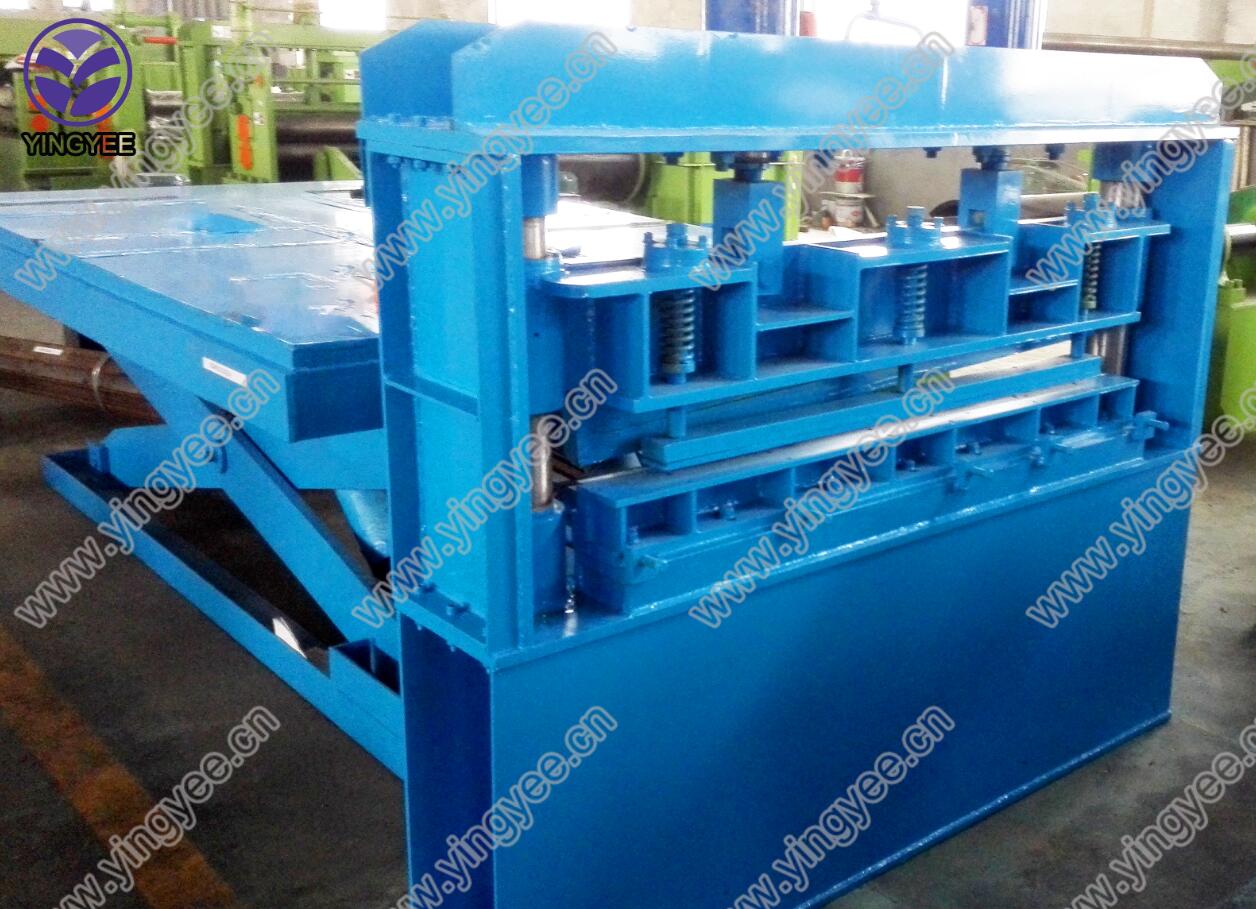

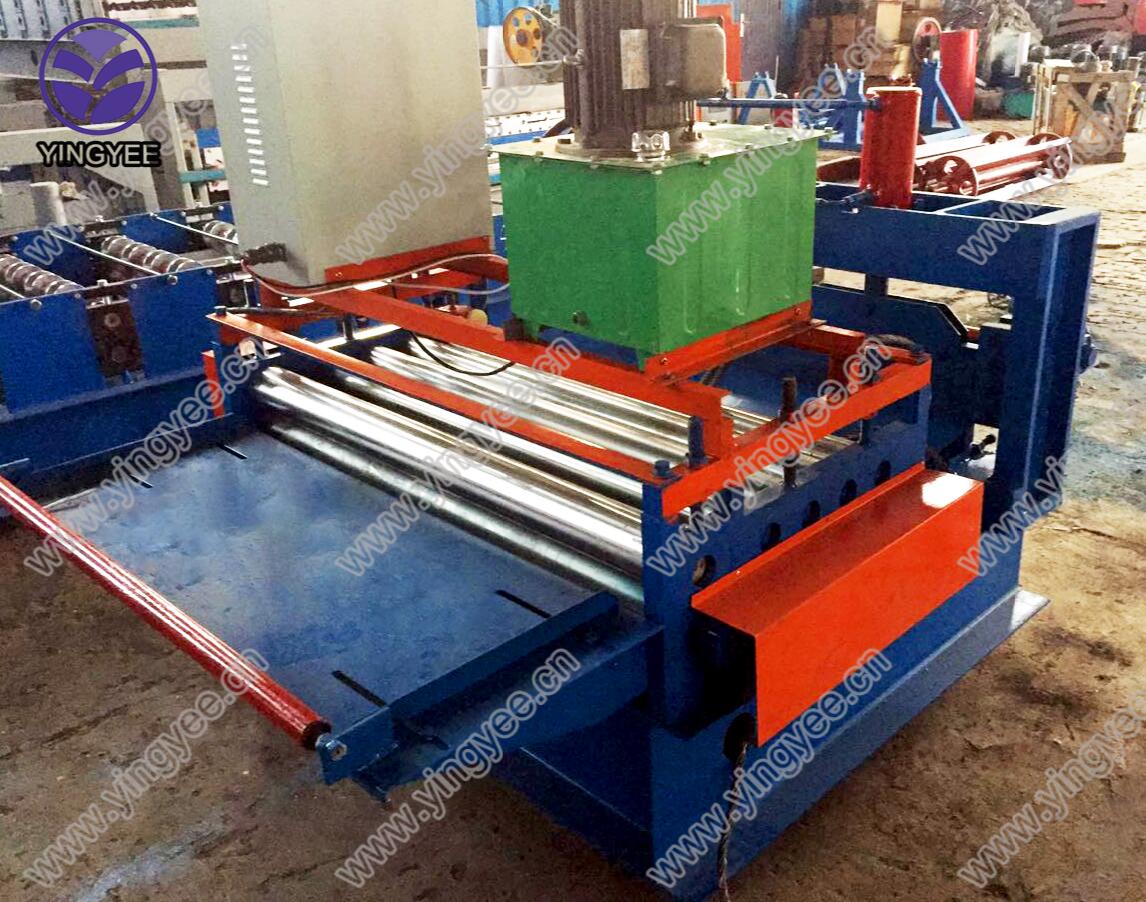

This high-precision straightening and cutting machine is engineered for thin materials with thicknesses ranging from 0.3mm to 1.5mm. It integrates advanced traction and leveling functions, featuring four groups of leveling rollers with hard chromium plating for enhanced durability and service life. Designed for seamless industrial integration, the machine includes a PLC control system and hydraulic motor operation to ensure high-accuracy performance.
Technical Specifications
- Material Thickness Capacity
- 1.5 mm
- Processing Speed
- 10-15 m/min
- Straightening Rollers Configuration
- 4+5 rollers
- Main Power
- 5.5 KW
- Electrical Requirements
- 415V50HZ3 Phase
Components & Materials
- Shaft Material
- #45 Steel (Heat treated)
- Cutting Blade Material
- GCr12
- Decoiler Capacity
- 5 T
Features
Integrated Systems
PLC ControlHydraulic MotorHard Chromium PlatingCylinder Lifting
