Straight Side Double Crank High Speed Press
This high speed press features a steel plate welded closed structure for high rigidity. It utilizes PLC and electronic encoder digital control for automated operation.
Technical Specifications
Overview
High-Performance Precision Press
The FH2 Series Straight Side Double Crank High Speed Press is a robust and precise metal forming machine designed for high-volume production. Featuring a rigid straight side frame, this press ensures minimal deflection and optimal accuracy during operation. The double crank mechanism provides balanced force distribution, enabling the efficient stamping, punching, and forming of various metal parts. Equipped with advanced control systems, including programmable logic controllers (PLCs), the press allows for easy setup and monitoring of production parameters.
Performance
Key Performance Metrics
3,000 KN
Max Capacity
350 SPM
Max Speed
30 mm
Stroke Length

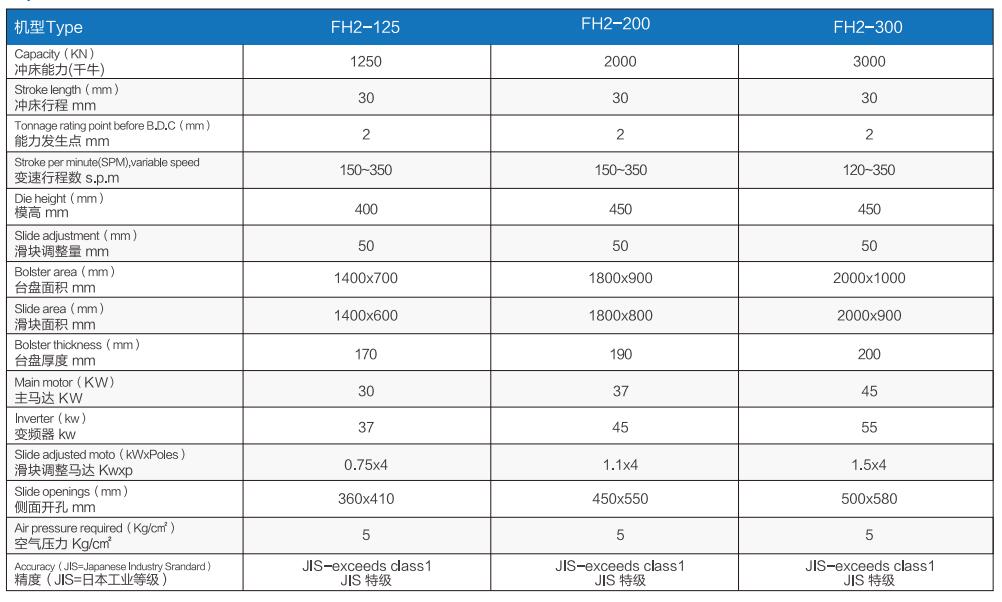

Technical Specifications
Model Comparison
| Specification | FH2-125 | FH2-200 | FH2-300 |
|---|---|---|---|
| Capacity (KN) | 1250 | 2000 | 3000 |
| SPM (Variable) | 150-350 | 150-350 | 120-350 |
| Die Height (mm) | 400 | 450 | 450 |
| Main Motor (KW) | 30 | 37 | 45 |
- Accuracy Standard
- JIS-exceeds class 1
- Required Air Pressure
- 5 Kg/cm²

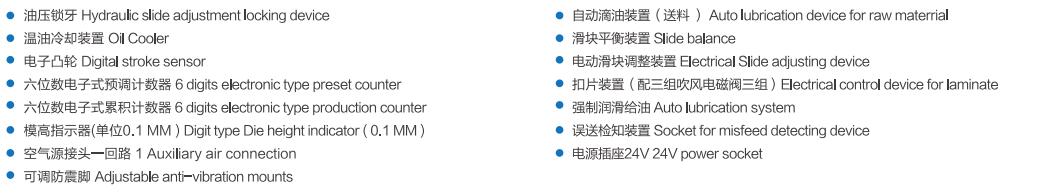

Standard Equipment
Included Features
- Hydraulic slide adjustment locking device
- Oil cooler
- Digital stroke sensor
- 6-digit electronic preset & production counters
- Digit type die height indicator (0.1mm)
- Adjustable anti-vibration mounts
- Auto lubrication system
- Slide balance
- Electrical slide adjusting device
- Connectivity & Control
- PLC ControlDigital EncoderMisfeed Detecting Socket24V Power SocketAuxiliary Air Connection
