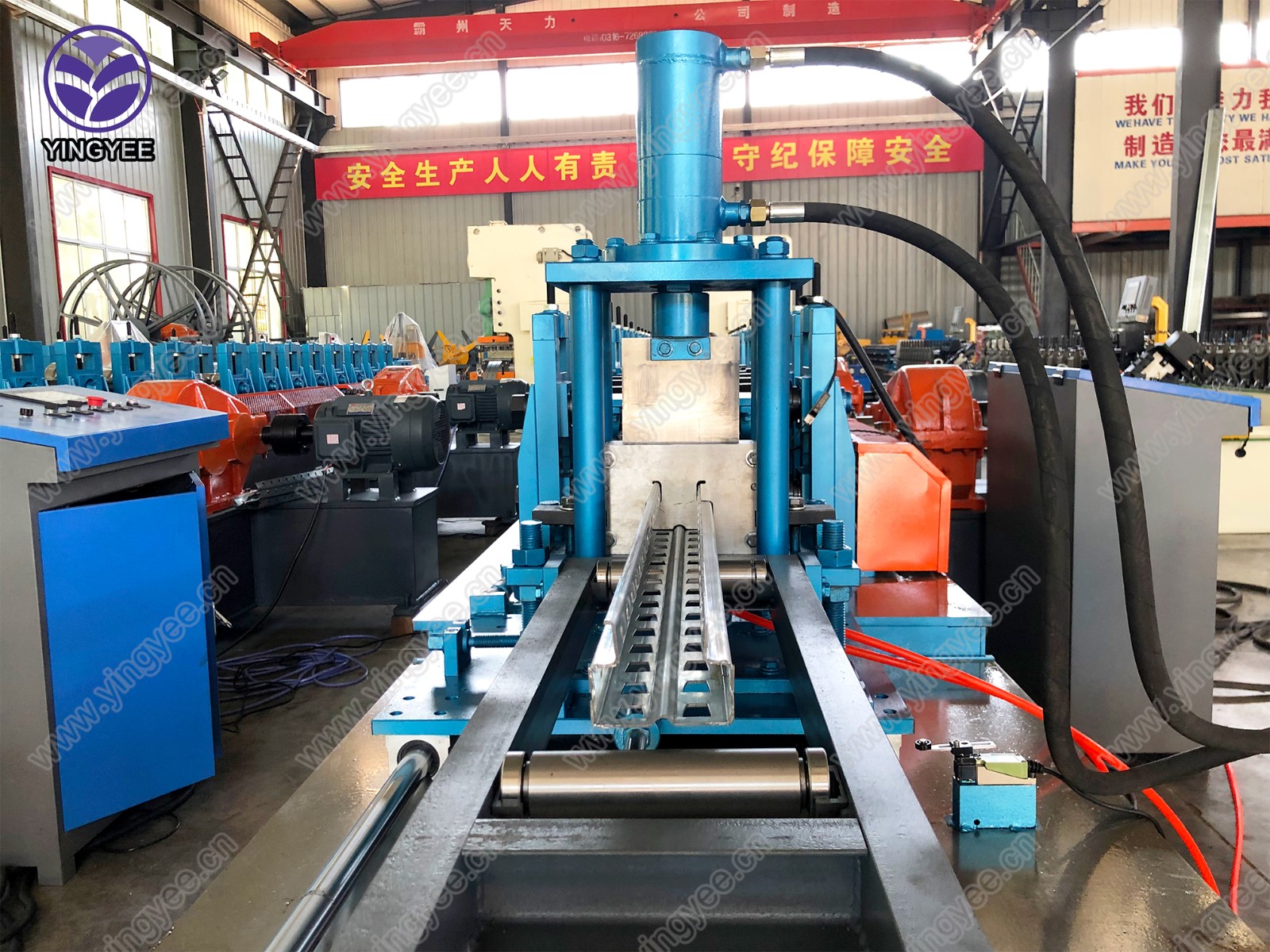

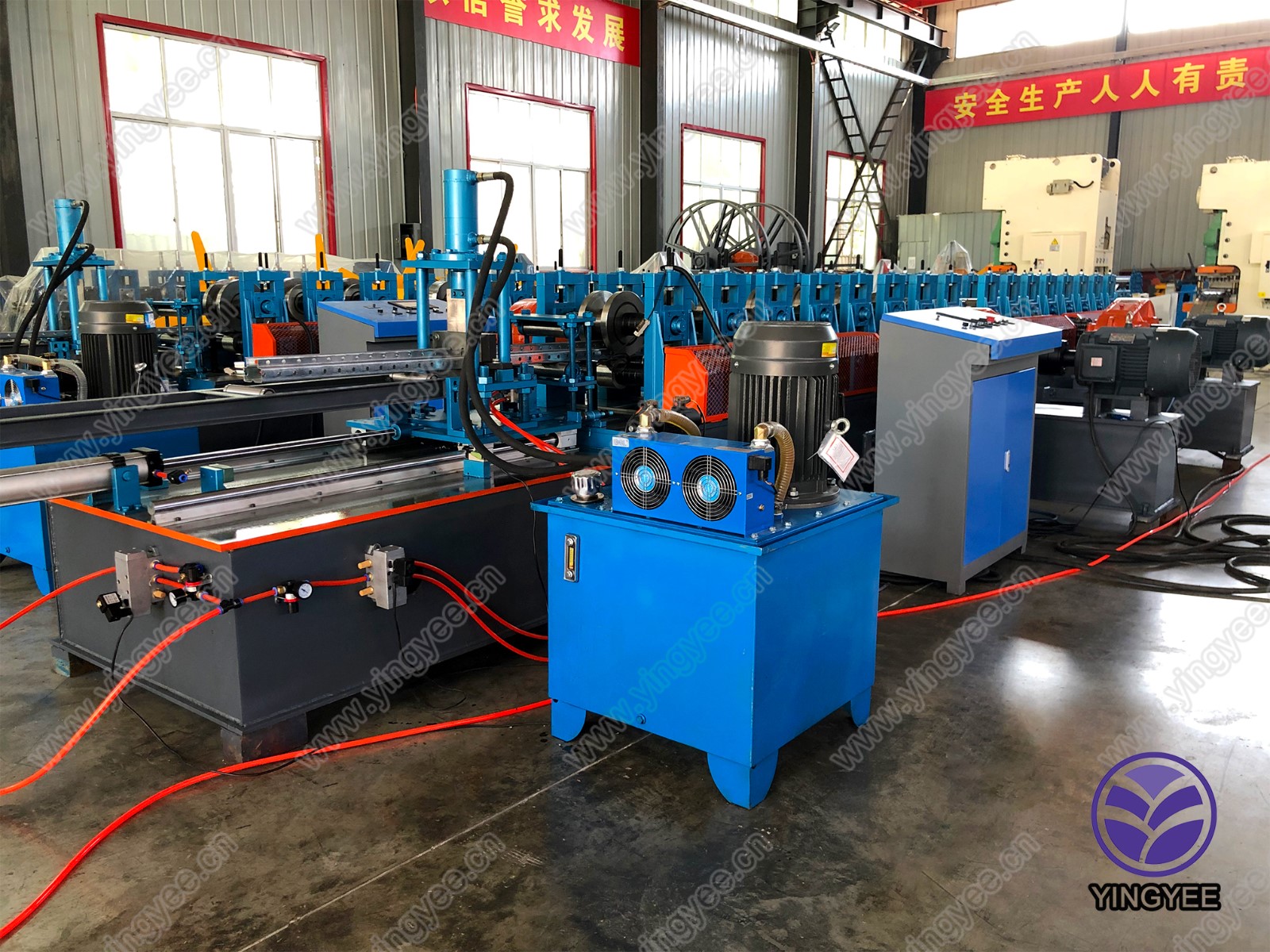

Storage Rack Upright Forming Machine
This storage rack upright forming machine efficiently produces uprights for heavy-duty storage systems. It features a robust construction with multiple forming stations to ensure consistent and accurate shapes.
Technical Specifications
Overview
Industrial Rack Upright Production
This heavy-duty roll forming machine is engineered for the efficient, high-volume manufacturing of storage rack uprights. It utilizes a continuous cold roll forming process to transform raw metal coils into precise, dimensionally accurate profiles. Designed for industrial reliability, the system integrates automated feeding, hydraulic punching, and PLC-controlled cutting to ensure consistent quality output.
Technical Specifications
Production Speed
5 m/min
Minimum Speed
15 m/min
Maximum Speed
- Power Requirements
- 380V, 50Hz, 3-phase
- Overall Dimensions
- 5m (L) x 1.5m (W) x 2m (H)
Materials & Process
Manufacturing Process Flow
- Decoiling
- Feeding Guide
- Servo Feeding System
- Hydraulic Punching
- Main Roll Forming
- PLC Control System
- Hydraulic Cutting
- Output Table
- Compatible Materials
- Hot Rolled SteelCold Rolled SteelGalvanized SteelColor SteelStainless Steel
Safety & Control
Control System
PLC ControlledAdjustable SpeedAdjustable Cut-off LengthHydraulic Operation
Safety Features
- Emergency stop buttons
- Protective guards
