Storage Rack Roll Forming Machine
This automated roll forming machine is designed for manufacturing storage rack components, processing metal profiles into precise shapes and patterns. It is suitable for high-volume production, ensuring consistent quality and dimensional accuracy.
Technical Specifications
Overview
Precision Roll Forming System
This automated roll forming machine is engineered for the high-volume production of durable storage rack components, including columns, crossbeams, stay rods, and plywood supports. It features a sophisticated, continuous process flow that includes decoiling, precision punching, forming, and cutting to ensure consistent dimensional accuracy. Designed for industrial efficiency, the system offers reliable performance for creating customizable shelving systems suitable for warehouse and retail environments.
Technical Specifications
Production Performance
- Material Thickness Range
- 1 - 2.5 mm
Equipment Components
Main Integrated Sections
- Auto-de-coiler
- Guide frame
- Lever/feeding section
- Continuous bottom hole punching section

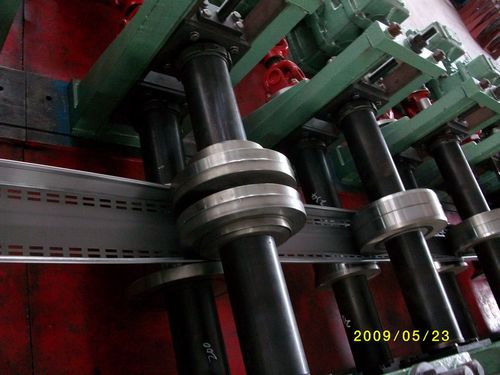

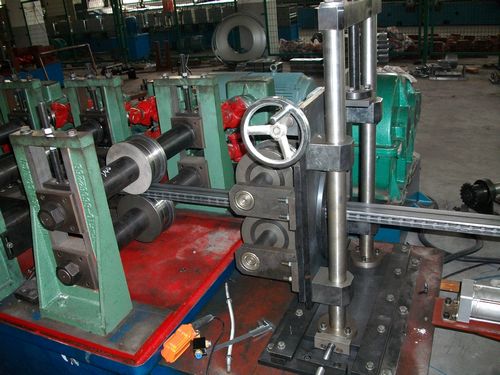

- Forming section
- Positioning and cutting section
- Collection table
- Electrical control system
Application

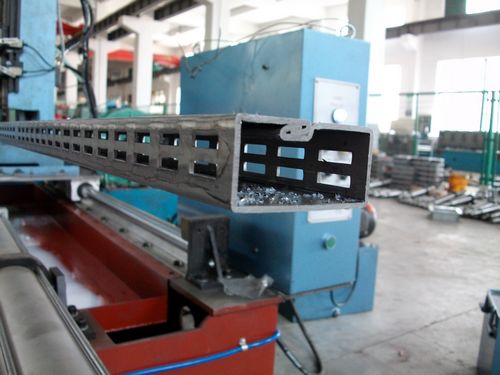

- Compatible Rack Components
- Shelf columnShelf crossbeamShelf stay rodShelf plywood
