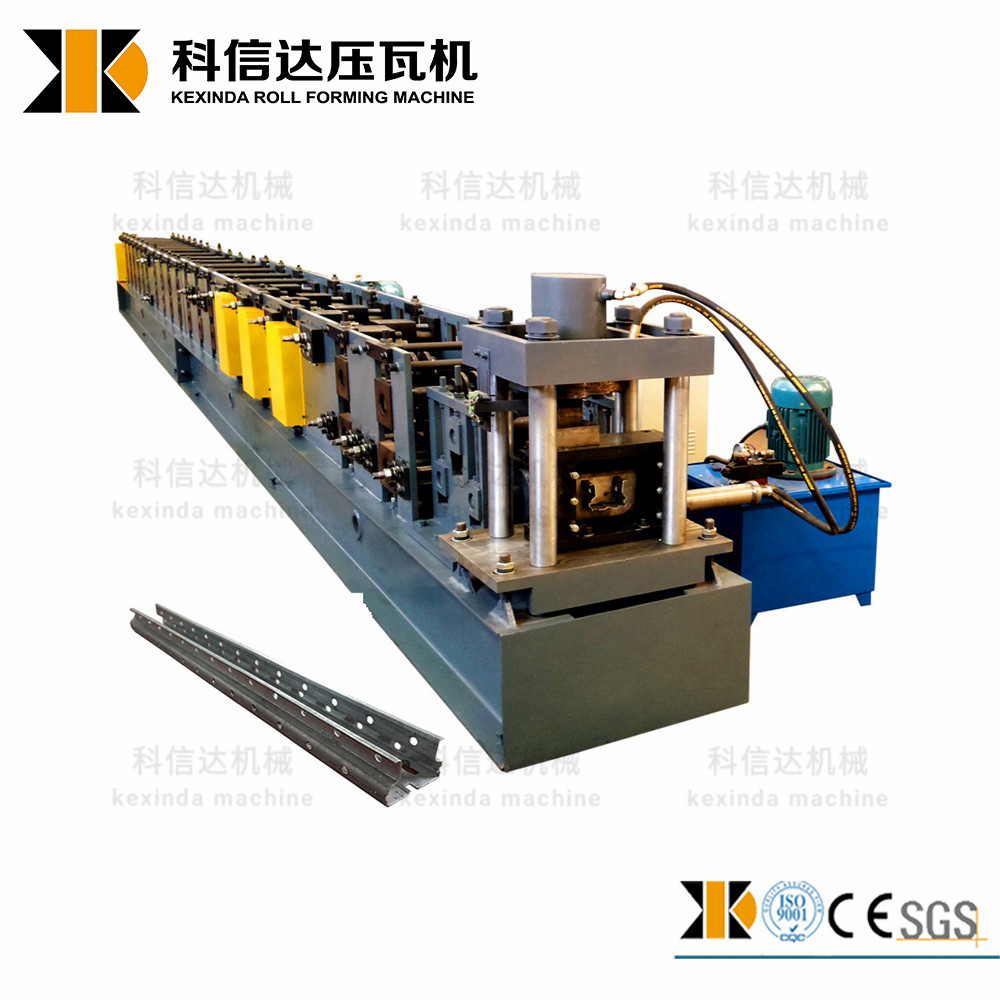

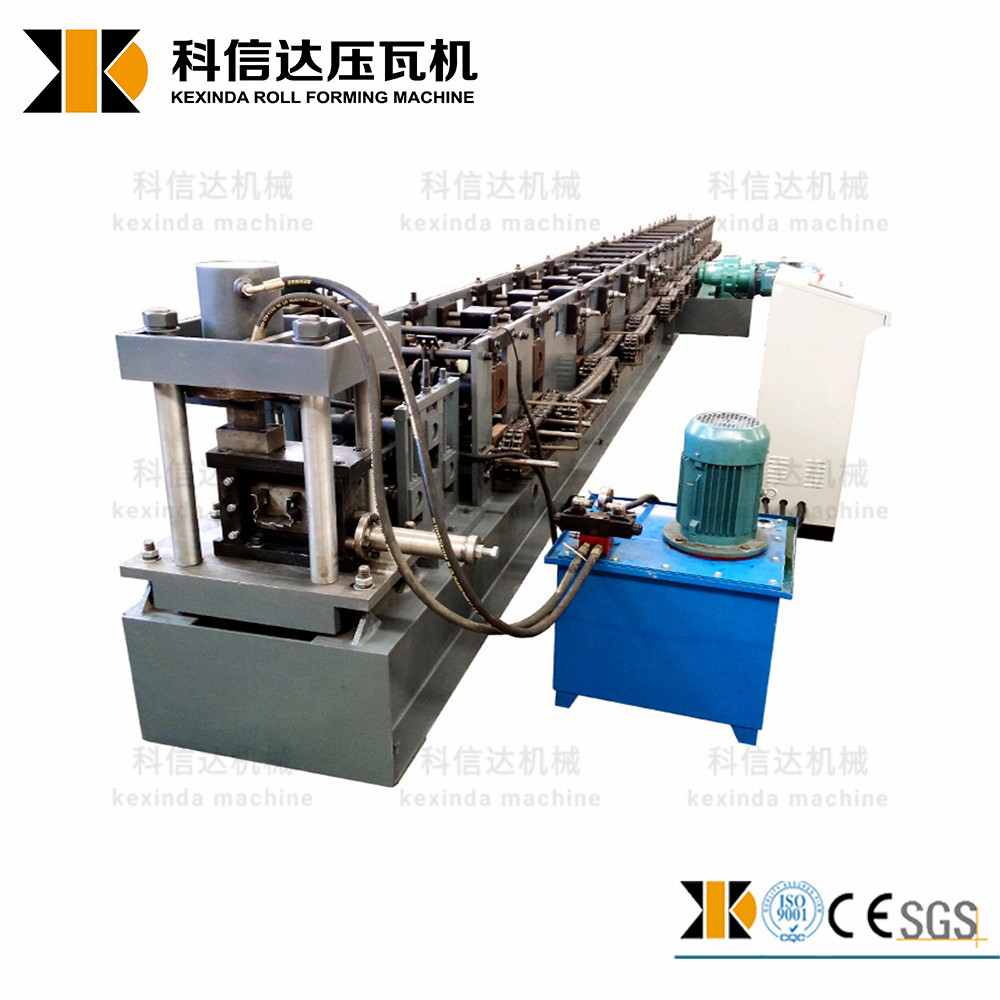

Storage Rack Roll Forming Machine
This roll forming machine efficiently produces storage rack components. It shapes metal into precise profiles, ensuring consistent quality.
Technical Specifications
Overview
High-Efficiency Storage Rack Roll Forming System

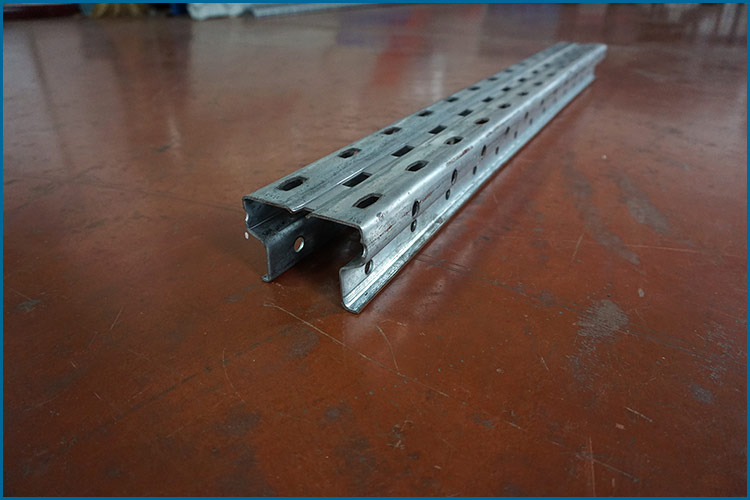

This industrial-grade roll forming machine is engineered for the high-volume, precise production of storage rack components, including uprights, beams, and shelves. Utilizing a series of high-grade forged steel rollers and a robust hydraulic system, it ensures consistent profile quality and dimensional accuracy. The system features an advanced PLC-based control cabinet with multi-language support, enabling both manual and automatic operation for seamless production workflows.
Technical Specifications
- Forming Stations
- 19 rows
- Feeding Material Thickness
- 1.5 - 2.5mm
- Working Speed
- 15 m/min
Electrical & Hydraulic
Main Power
15 kW
Main Motor
5.5 kW
AC Motor
4 kW
Hydraulic System
- Power Supply
- 380V, 3-Phase, 50Hz
- Working Pressure
- 16 MPa

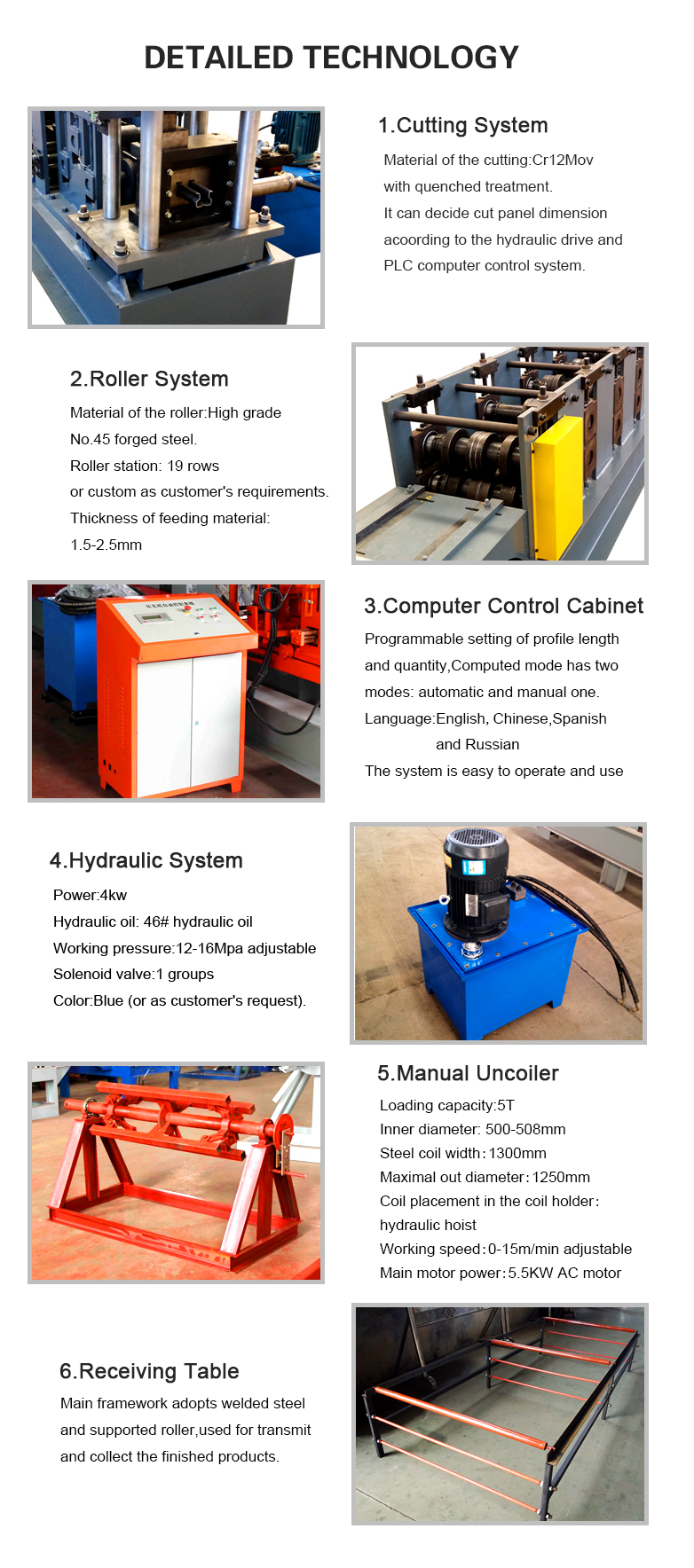

Construction & Design

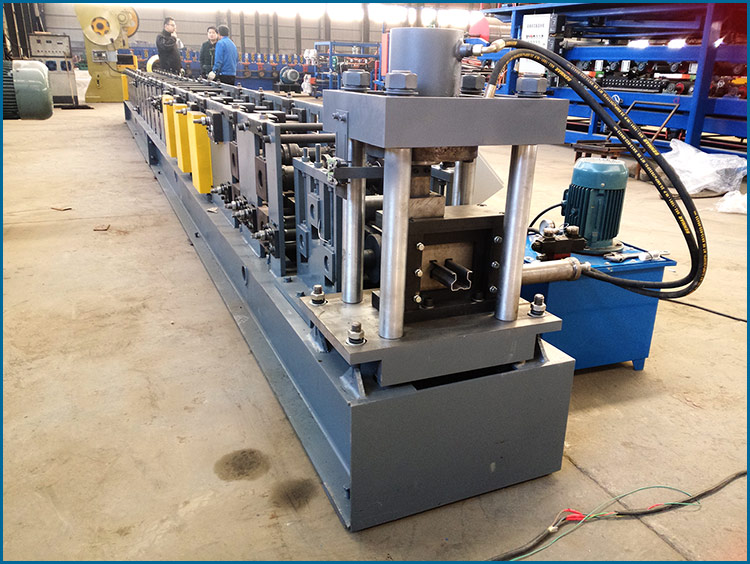

- Main Frame
- 350H Steel
- Roller Material
- No.45 Forged Steel
- Cutting Blade Material
- Cr12Mov with Quenched Treatment
Uncoiler Specifications
- Loading Capacity
- 5 T
- Max Steel Coil Width
- 1300 mm
Control System
Operation Modes
AutomaticManual
- Control System
- PLC with Color Touch Screen
- System Languages
- EnglishChineseSpanishRussian
