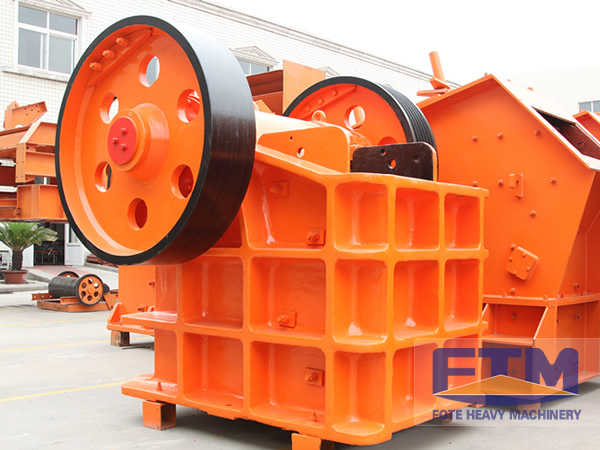

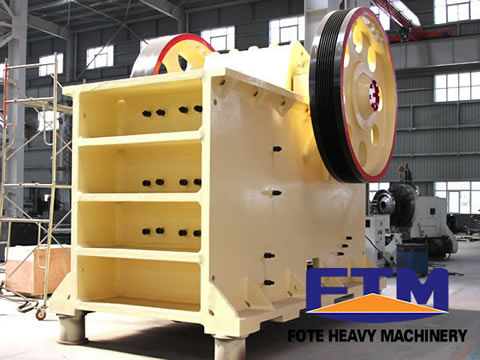

Stone Jaw Crusher Machine
The stone jaw crusher machine is designed for efficient primary crushing of various materials. It features adjustable discharge settings to control the output material size and ensure stable performance.
Technical Specifications
Product Overview
High-Efficiency Stone Crushing Solution
This industrial jaw crusher is a vital piece of equipment designed for primary and secondary crushing of hard and soft materials. Featuring a deep crushing chamber with no dead zones, it optimizes feeding capacity and output while maintaining low energy consumption. Its robust crank link mechanism and reliable structure make it an ideal choice for demanding applications in mining, construction, and chemical industries.
Key Capabilities
Performance Metrics
1,500 mm
Max Feed Size
2,200 t/h
Max Capacity
320 Mpa
Max Compressive Strength
Material Compatibility
- Suitable Materials
- LimestoneGranitePebblesCobbleIron OreBasalt
Operational Features
System Advantages
Deep Crushing ChamberNo Dead ZoneHigh Crushing RatioLow Operating CostsEnergy SavingEasy Maintenance
Technical Specifications
Model Specifications
| Model | Feed Opening (mm) | Capacity (t/h) | Motor Power (kw) |
|---|---|---|---|
| PE-150x250 | 150x250 | 1-3 | 5.5 |
| PE-400x600 | 400x600 | 16-60 | 30 |
| PE-600x900 | 600x900 | 50-180 | 55 |
| PE-900x1200 | 900x1200 | 220-450 | 110 |
| PE-1200x1500 | 1200x1500 | 400-800 | 160 |
| PE-1600x2100 | 1600x2100 | 1300-2200 | 350 |
