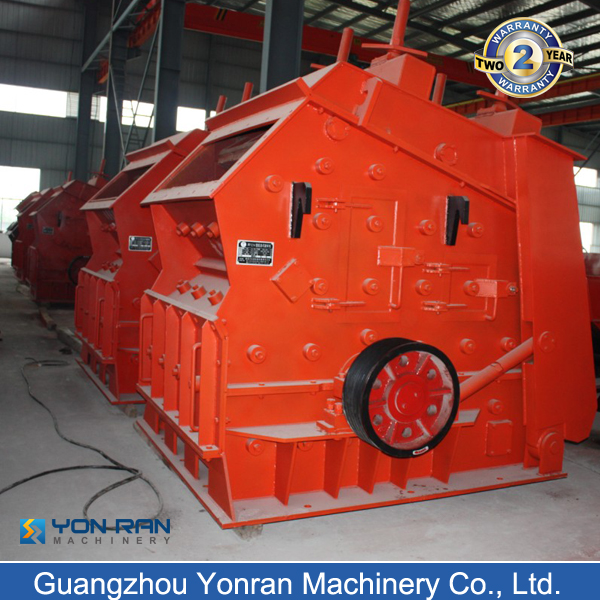

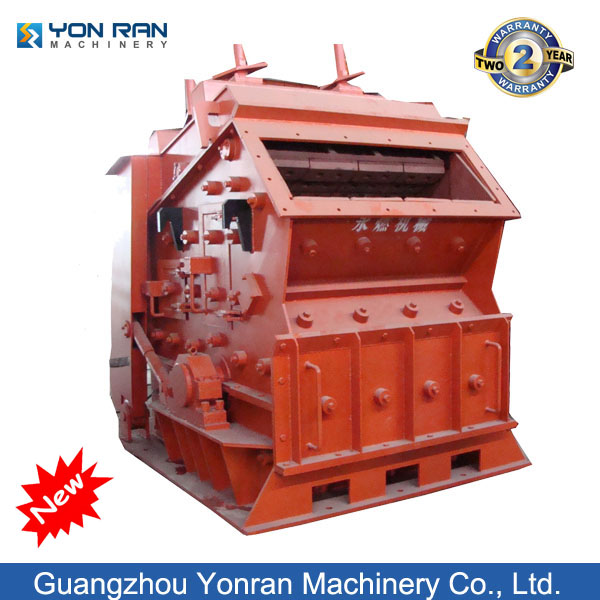

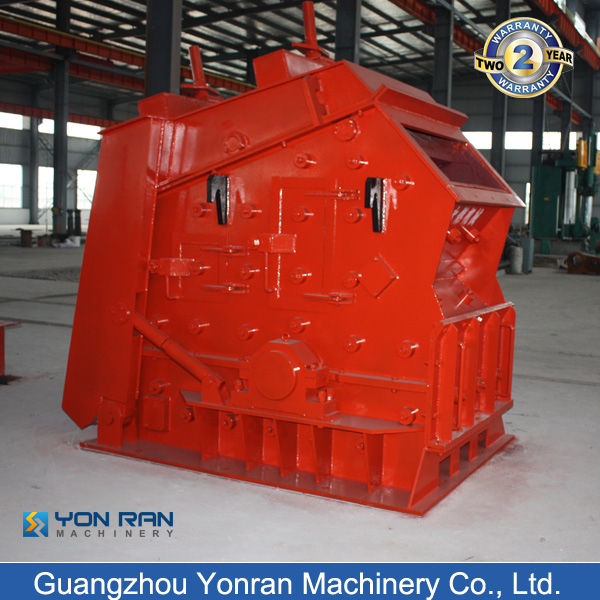

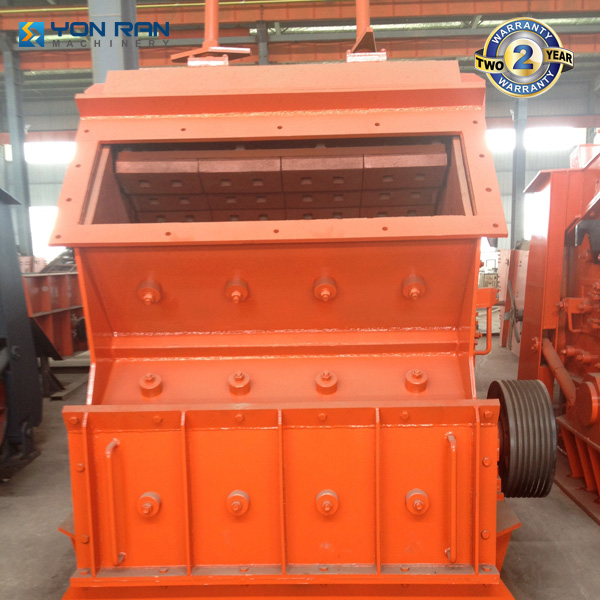

Stone Impact Crusher
This impact crusher is designed for reducing stone and other materials in mining applications. It features a heavy-duty rotor and impact plates for high performance and long service life.
Technical Specifications
Overview
High-Performance Stone Impact Crusher
This robust impact crusher is engineered for efficient size reduction of stone and mineral materials in mining and construction environments. Featuring heavy-duty construction and a high-speed rotor design, it delivers consistent particle size distribution and high throughput. The unit is designed with adjustable discharge settings and easily replaceable wear parts to maximize operational uptime and simplify maintenance.
Key Features
Warranty
2 Year Warranty
Technical Specifications
Technical Data Matrix
| Model | Rotor (mm) | Max Feed (mm) | Capacity (t/h) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|
| PF-1007 | 1000x700 | 300 | 20-35 | 37-55 | 9,500 |
| PF-1010 | 1000x1050 | 350 | 5-20 | 55-75 | 12,127 |
| PF-1210 | 1250x1050 | 350 | 16-65 | 110-132 | 14,000 |
| PF-1214 | 1250x1400 | 350 | 45-100 | 132-160 | — |
- Mechanism
- Impact CrushingAdjustable DischargeHigh-Speed Rotor
