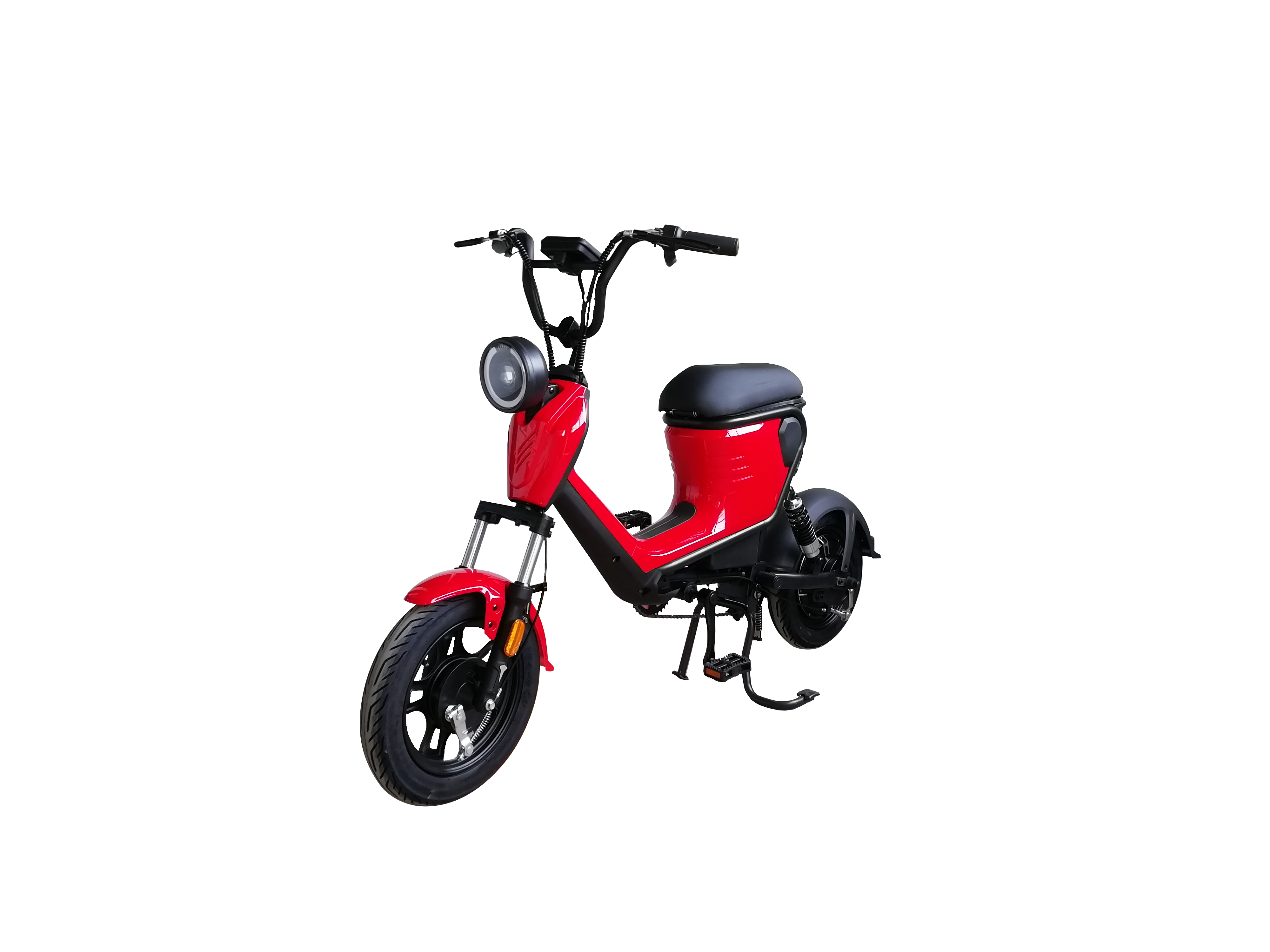

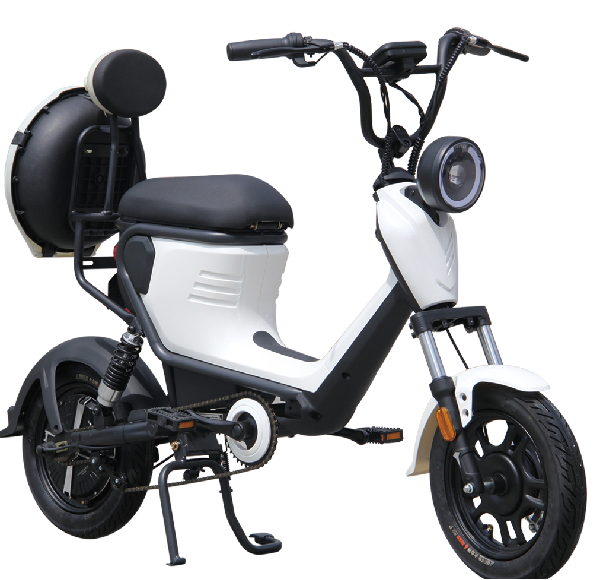

Step-Through Frame Electric Bicycle
This electric bicycle features a step-through frame for easy mounting and dismounting. It is equipped with an electric motor that provides assistance for effortless commuting and recreational riding.
Technical Specifications
Overview
Efficient Urban Mobility
This step-through frame electric bicycle is engineered for comfortable and accessible urban commuting. Featuring a reliable 400W brushless DC motor and a sturdy lead-acid battery system, it provides consistent power for daily travel. The thoughtful design includes front and rear suspension to absorb road imperfections, ensuring a smooth ride for the operator.
Performance
Key Performance Metrics
400 W
Motor Power
28 km/h
Max Speed
40 km
Max Range
Battery & Charging
- Battery Type: 48V 12AH Lead-acid
- Charging Time: 6-8 hours
Physical Dimensions
Weight Details
| Metric | Weight |
|---|---|
| Net Weight | 55 kg |
| Gross Weight | 63 kg |
- Dimensions
- 1480 × 630 × 1030 mm
Technical Details
- Model Number
- HC-WL
- Tyre Size
- 14" × 2.5"
- Braking System
- Front Drum BrakeRear Expand Brake
Logistics
- Package Dimensions
- 1460 × 330 × 870 mm
- Container Loading (40"H)
- 168 pcs
