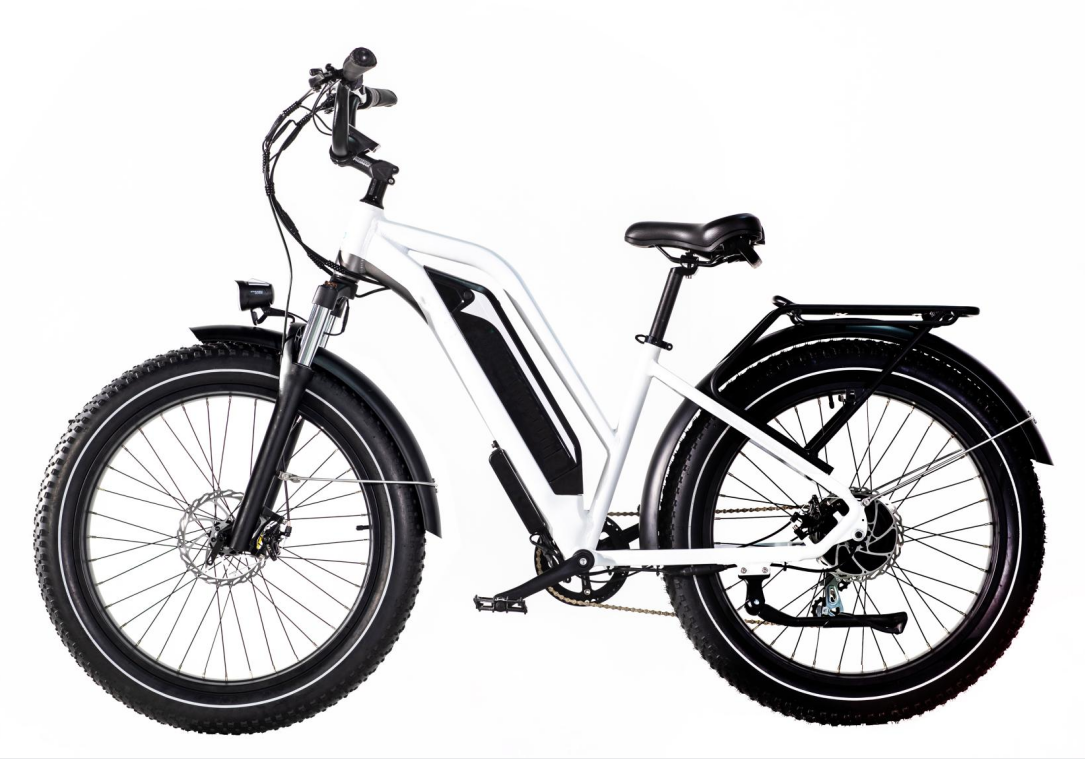

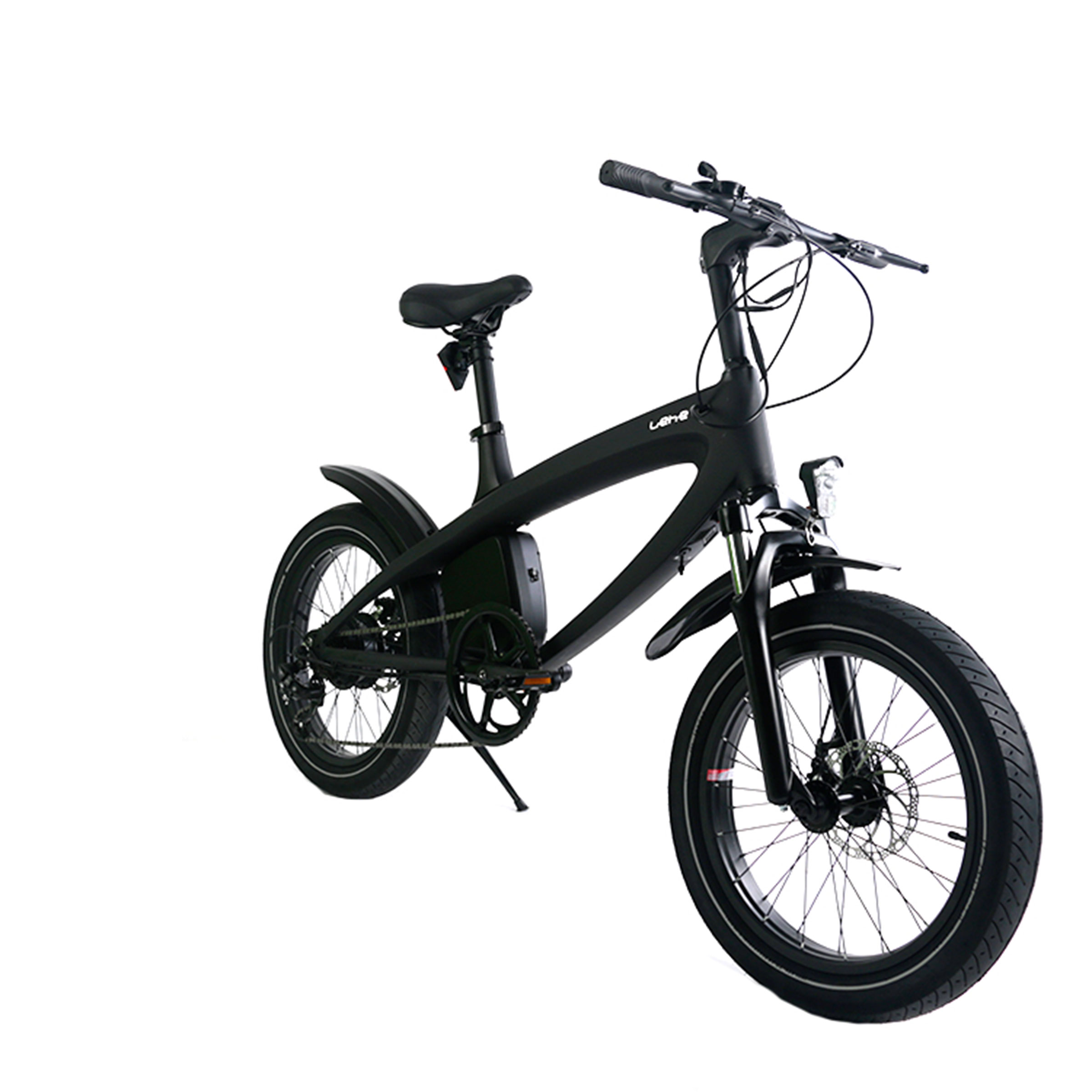

Fat Tire Electric Bicycle
This electric bicycle features fat tires for enhanced traction and stability on various terrains. It is equipped with a lithium-ion battery for efficient power and extended range.
Technical Specifications
Overview
Rugged Fat Tire Performance
This fat tire electric bicycle is engineered for versatility, combining a powerful 750W motor with robust 26-inch tires to handle diverse terrains with ease. Built on a durable 6061 aluminum frame, it offers stability and comfort for both urban commuting and off-road adventures. With advanced features like a Shimano 8-speed drivetrain and a high-capacity 52V battery system, this e-bike provides reliable power and efficient performance for professional use.
Electrical System
Motor Power
750 W
Rated Power
52 V
System Voltage
Battery Specifications
- Capacity: 52V 16Ah
- Mounting: Down tube battery box
- Optional: Smart BMS
- Electronic Features
- LCD DisplayAssist SensorSpeed SensorOptional USBOptional Bluetooth
Mechanical Components
Frame & Suspension
- Frame: 26-inch 6061 Aluminum
- Fork: Alloy suspension fork
- Seat Post: Aluminum alloy
Drivetrain & Braking
| Component | Specification |
|---|---|
| Derailleur | SHIMANO 8 speed |
| Front Brake | Disc |
| Rear Brake | Disc |
- Tire Specifications
- CST 26*4.0
