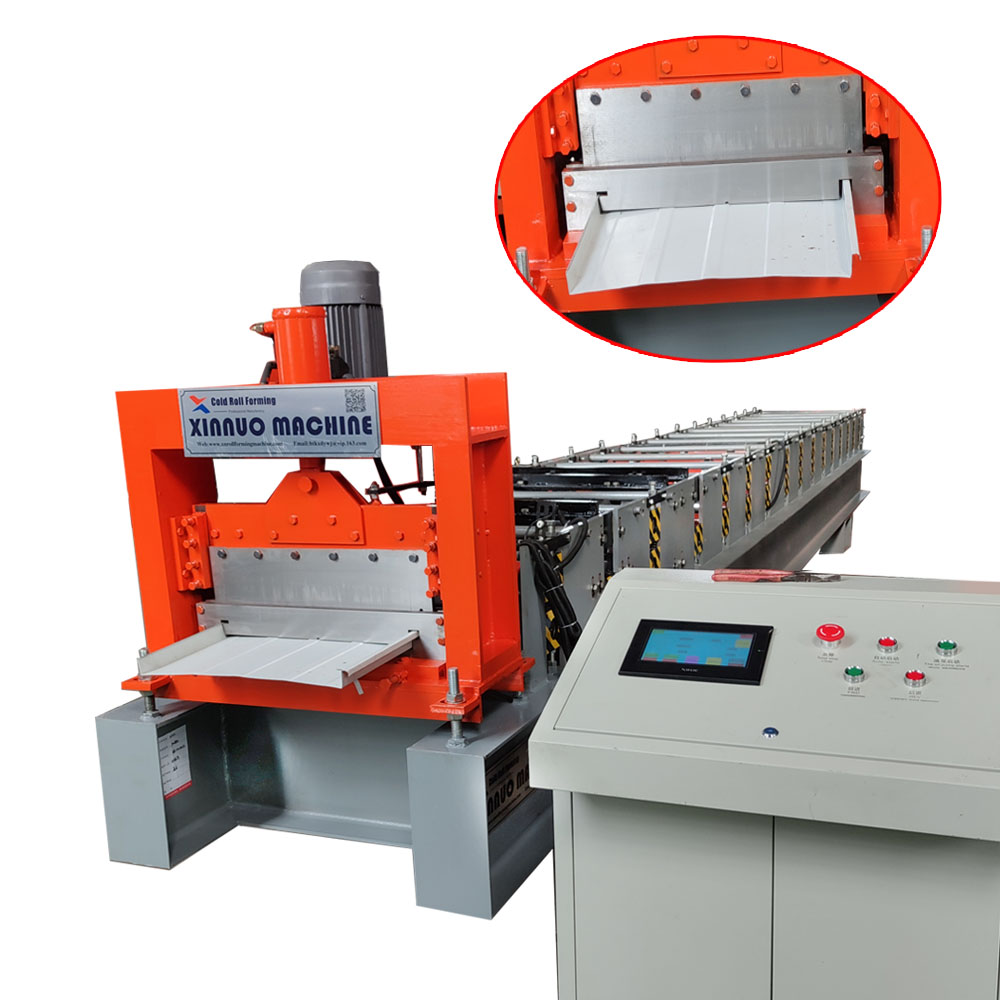

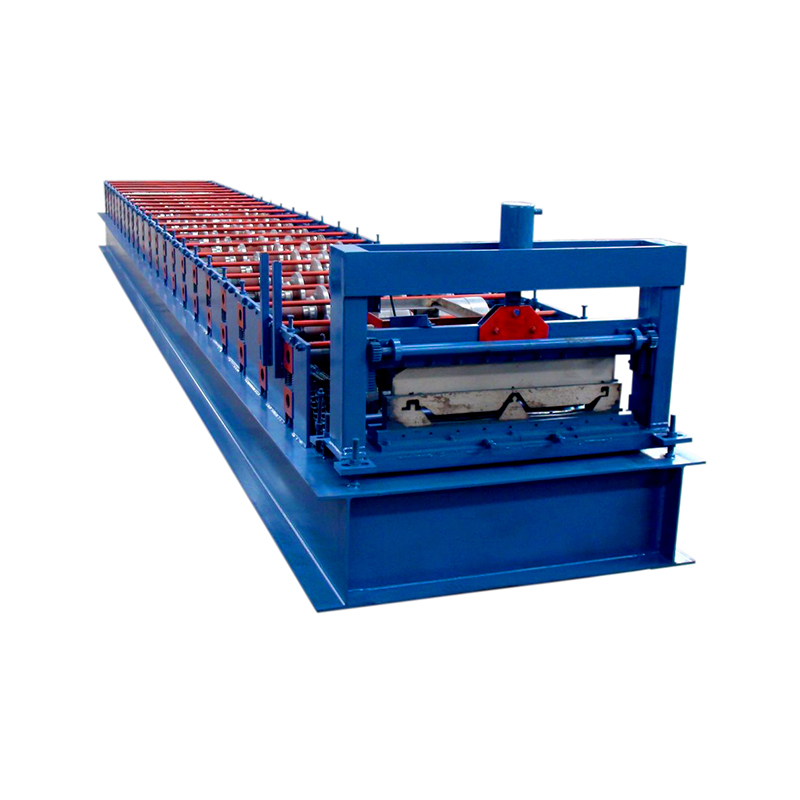

Steel Roof Panel Forming Machine
This rolling mill forms steel roof panels with a concealed joint system. It is engineered for precise and efficient production of durable, weather-resistant roofing solutions.
Technical Specifications
Product Overview
Professional Steel Roof Forming Solution

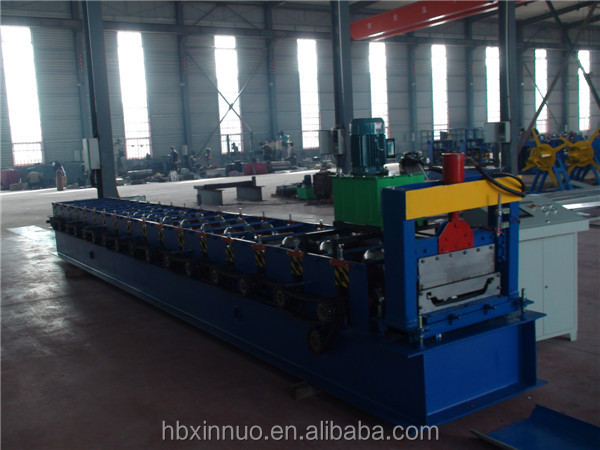

This automated roll forming machine is engineered for the efficient production of joint-hidden, big-span steel roof panels. Designed for industrial and commercial applications, the system integrates precision rolling technology with a robust hydraulic cutting mechanism to deliver consistent, weather-resistant roofing materials. The machine features a modular design with an advanced PLC control system, ensuring high-volume output and long-term reliability for large-scale construction projects.
Technical Specifications
- Production Speed
- 10 m/min

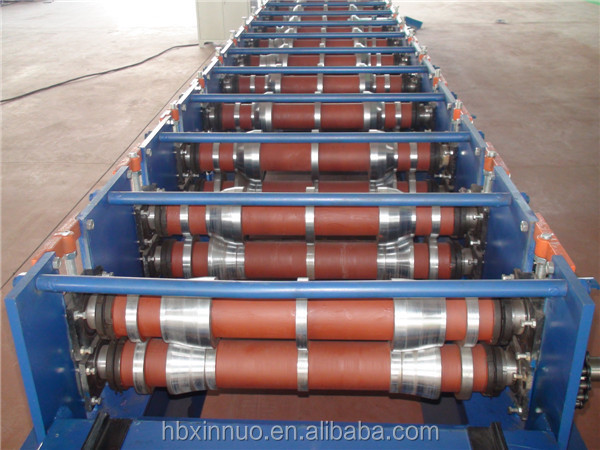

- Roller Stands
- 17 rows
- Side Panel Thickness
- 14 mm
- Main Frame
- 350H Steel
Power and Control
- Power Supply
- 380V/50Hz/3-Phase
- Main Motor Power
- 3 kW

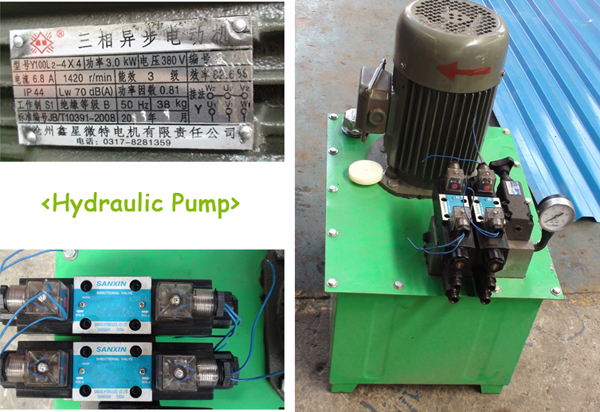

- Hydraulic Pump Power
- 3 kW

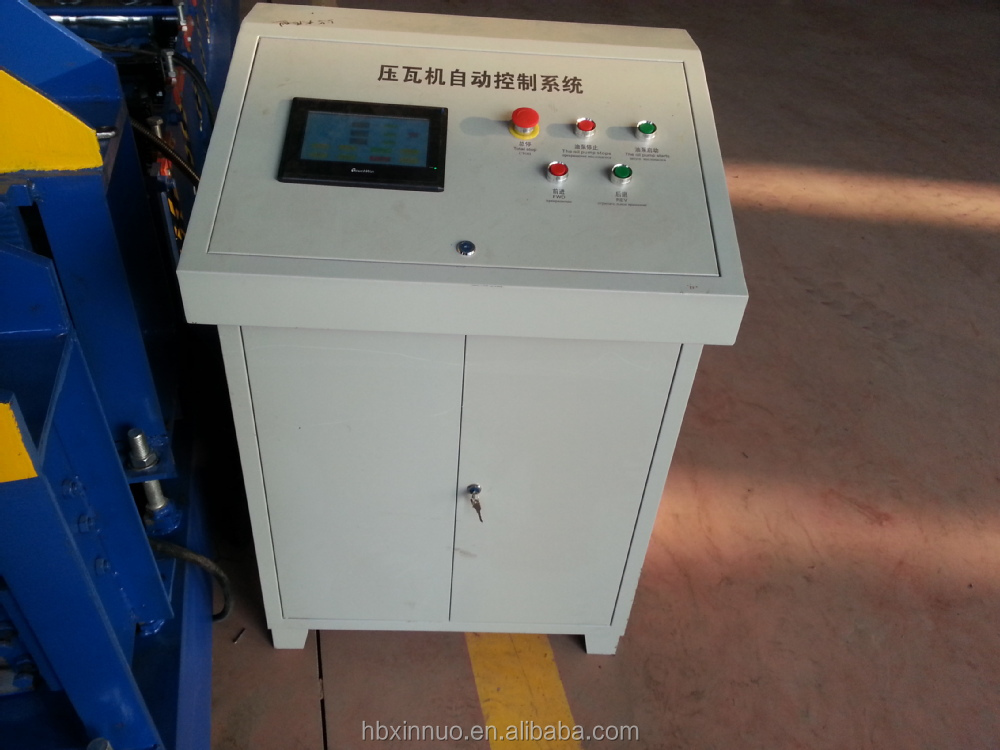

- Control System
- PLC Control (Mitsubishi/Delta/Others)
Materials and Components
- Roller Material
- Carbon Steel 45#
- Blade Material
- Cr12 (Quenched 60-62°C)
- Compatible Material
- Color Steel Plate
System Configuration
Included Components
- Manual decoiler
- Main roll forming machine
- Post-cut mechanism
- Hydraulic system
- PLC control unit
- Stacking table
