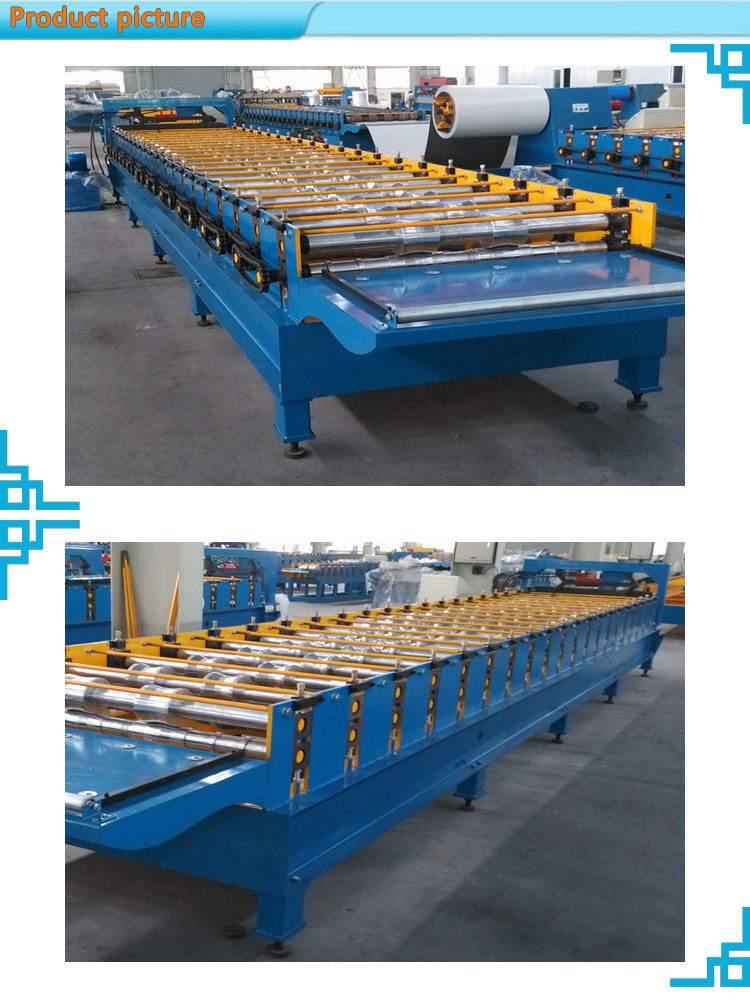

Steel Profile Roll Forming Machine
This steel profile roll forming machine offers easy operation and full automation. It is designed for high-quality metal forming.
Technical Specifications
Overview
High-Performance Roll Forming Solution
This fully automatic steel profile roll forming machine is designed for efficient and precise metal shaping, ideal for construction and manufacturing industries. It offers robust construction and advanced control systems to ensure consistent quality for various profiles, including roofing sheets, wall panels, and structural components. The system is engineered for ease of operation and long-term durability, providing a versatile solution for diverse metal forming applications.
Technical Specifications
- Material Thickness Range
- 0.5 mm
- Material Yield Stress
- 230-550 MPa
- Max Forming Speed
- 15 m/min
- Total Weight
- 5000 kg
Power & Mechanics
Power Consumption Metrics
5.5 kW
Main Motor Power
3 kW
Hydraulic Station Power
8.5 kW
Total Power
Mechanical Construction
| Component | Specification |
|---|---|

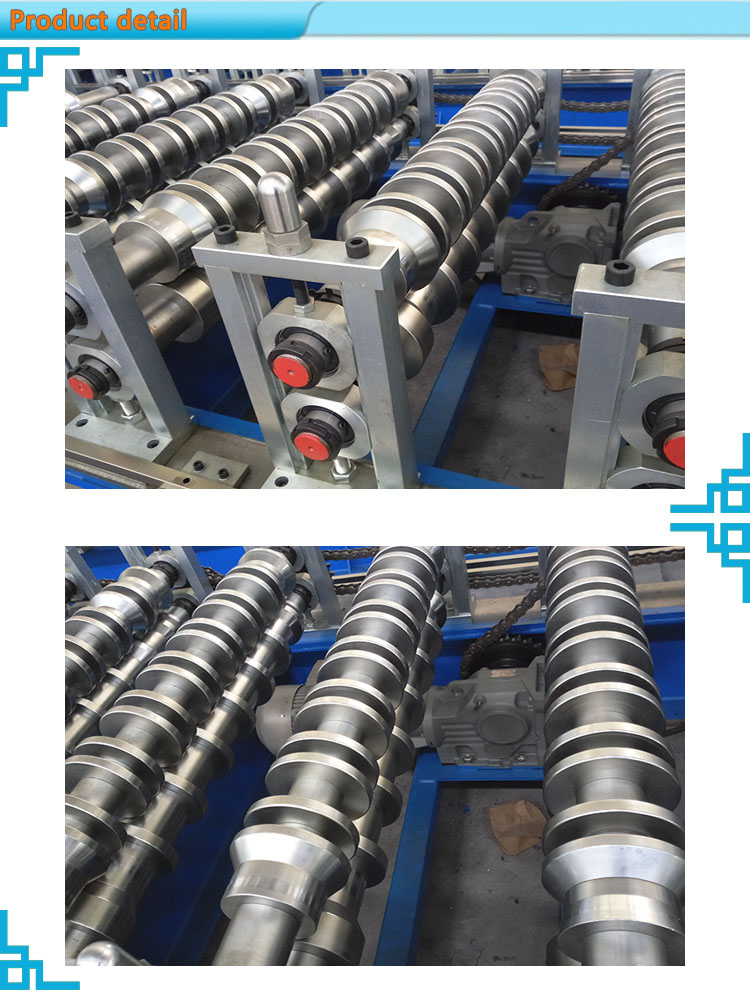

| Roller Material | 45# Steel with Chrome Treatment |
| Drive Type | Chain Transmission |
| Hydraulic Pressure | 12 MPa |
| Control System | PLC with Touch Screen |
System Components

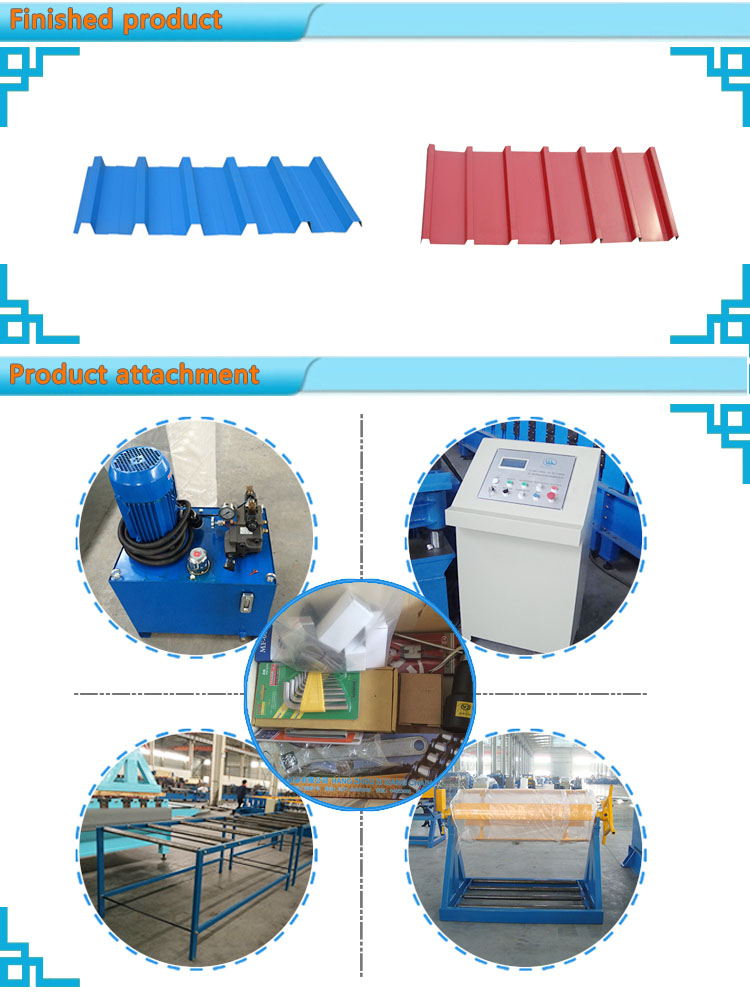

Included System Modules
- Uncoiler
- Adjustable Device
- Roll Forming System

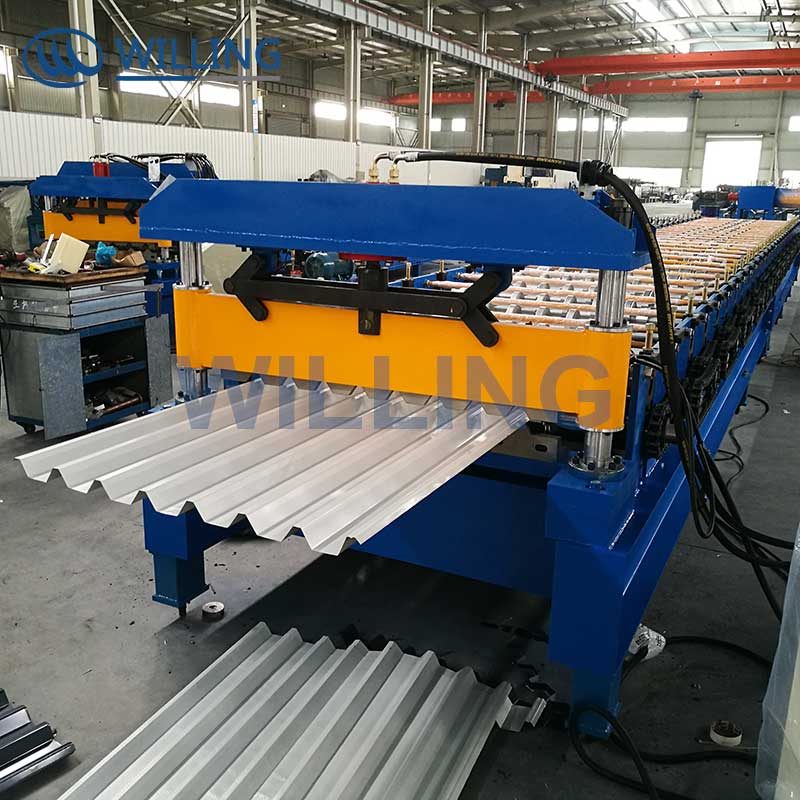

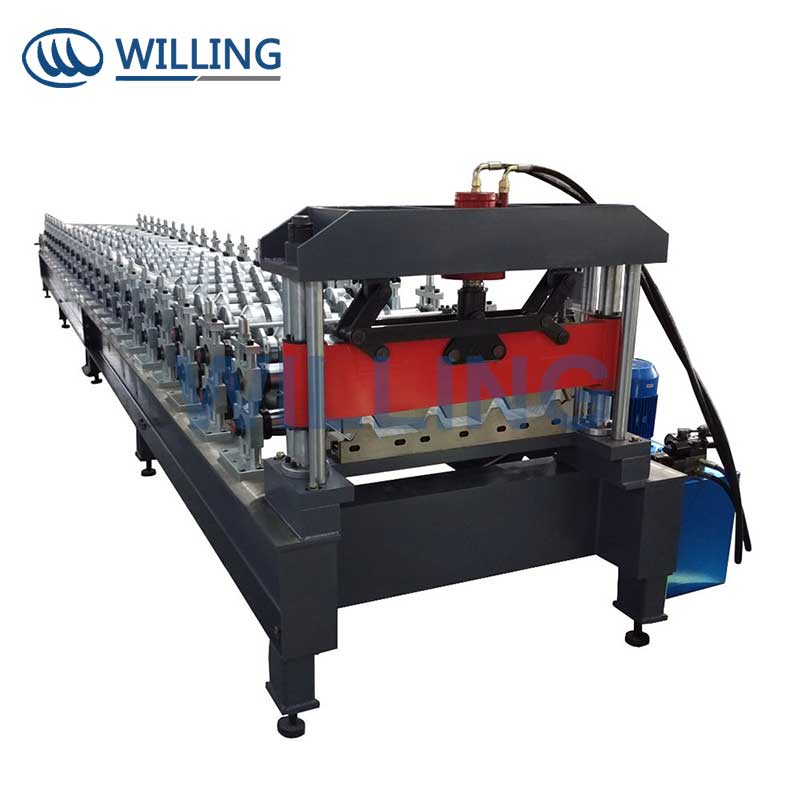

- Cutting Equipment
- Control Panel
- Panel Supporter
Support & Services
- Service & Support
- 1 Year Guarantee24/7 Technical SupportRemote Training AvailableInstallation Guidance
