Steel Plate Embossing Machine for Non-Slip Flooring

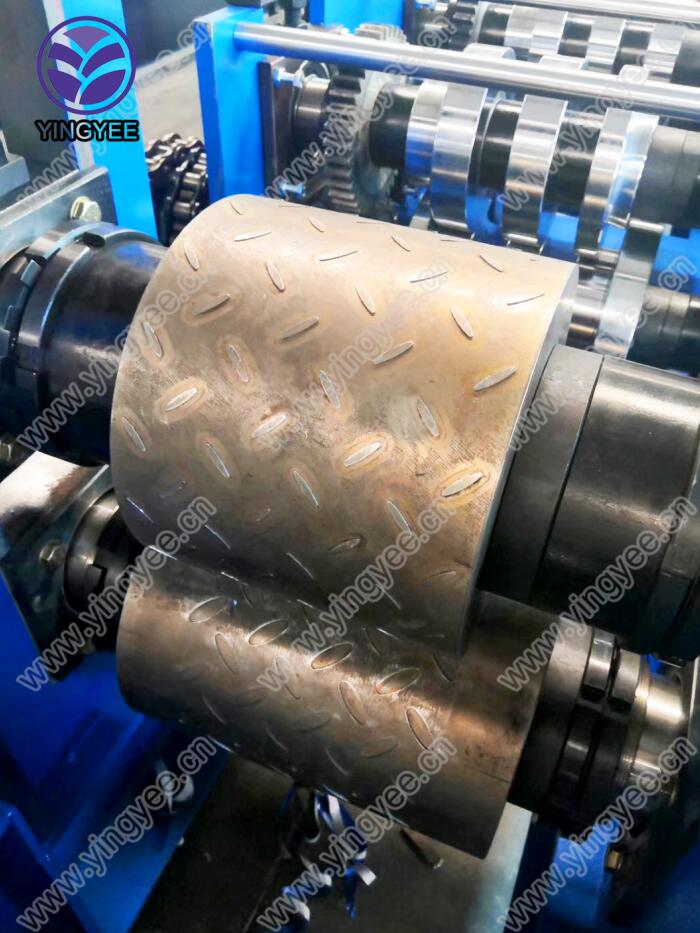

This machine is designed for forming non-slip patterns on steel plates used in flooring. It utilizes rollers with engraved patterns to imprint texture onto steel sheets, ensuring safety and durability.
Technical Specifications
Overview
Industrial Non-Slip Flooring Solution
This high-performance embossing machine is engineered for the precision production of non-slip pattern steel plates essential for industrial workshops. Utilizing a robust alloy steel roller system, it delivers consistent, durable textures that enhance workplace safety. Built for continuous operation, the machine features adjustable pressure and speed settings to ensure high-quality output for varied plate thicknesses.
Machine Dimensions & Build
- Dimensions
- 3300 × 1200 × 1700 mm
- Roller Material
- 42CrMo alloy steel solid forging
- Roller Hardness
- HRC53-55
Performance Metrics
Key Performance Indicators
11 kW
Motor Power
8 m/min
Max Line Speed
1,400 mm
Roller Width
- Processing Capacity
- 1-3mm thickness x 1250mm width
Technical Specifications
Power Requirements
- 380V voltage
- 50Hz frequency
- Frequency conversion motor
- Embossing Form
- Upper and lower roller pressure
- Pattern Style
- Willow Leaf
- Estimated Lead Time
- 40 days
