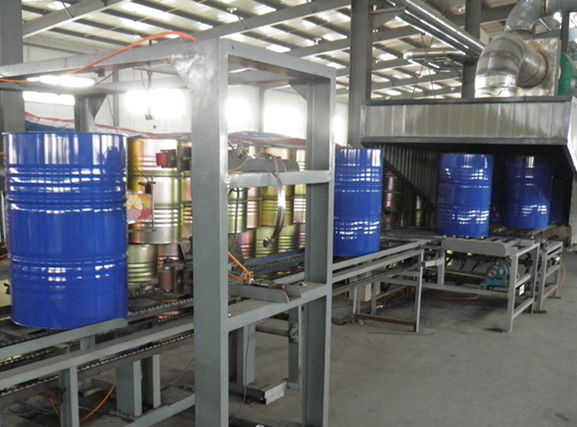

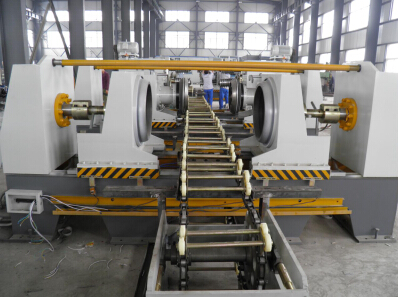

Steel Drum Production Line
This steel drum production line creates 100-220L drums and can produce closed, open, conical, and bituminous drums. It is widely used in oil, chemical, food, and beverage industries.
Technical Specifications
Product Overview
Versatile Steel Drum Manufacturing
This industrial production line is engineered for the high-efficiency manufacturing of steel drums ranging from 100L to 220L. It supports the creation of various drum types including closed, open, conical, and bituminous designs, making it ideal for the oil, chemical, food, and beverage industries. The system is available in low, medium, and high-speed configurations to meet diverse output requirements.
Performance Metrics
Production Speed Options
2 pcs/min
Low Speed Max
6 pcs/min
Medium Speed Max
8 pcs/min
High Speed Max
Standard Drum Specifications
Standard 216.5L Drum Dimensions
| Parameter | Value |
|---|---|
| Inner Diameter | 571.5 mm |
| Outside Diameter | 585 mm |
| Total Height | 897 mm |
| Capacity | 216.5 L (55 Gallon) |
| Weight | 16-18 kg |
| Material Thickness | 0.8 - 1.2 mm |
Technical Features
Painting & Finishing
- Nitro bake paint application
- Minimum 18 micron paint thickness
- Single or multicolor body options
Drum Construction
- 2 Closures per drum
- Top holes: One 3/4 Inch and one 2 Inch
- 6-10 Corrugations for structural integrity
- Applied Materials
- SPCC Steel PlateCold-rolled Sheet
Efficiency & Consumption
Material Consumption Ratios
| Plate Thickness (mm) | Finished Drums (pcs/Ton) | Unit Weight (kg/pc) |
|---|---|---|
| 1.2 | 41 | 21.5 |
| 1 | 50 | 18 |
Compliance & Quality
Quality Standards
ISO 9001:2008CEMachinery Directive 2006/42/EC
Global Reach
- Active Markets
- USACanadaBrazilRussiaChinaAustraliaKazakhstanMexico
