Technical Specifications
Overview
High-Performance Steel Cutting
This circular saw blade is engineered for precision metal cutting, making it an essential tool for professional fabrication. Designed for compatibility with various angle grinders and cutters, it provides clean, efficient cuts on steel boards, angle steel, and steel rods. Its durable construction ensures longevity and reliability in demanding industrial environments.
Applications & Compatibility
Tool Compatibility
- Angle Grinders
- Cutters
- Supported Materials
- Steel BoardsAngle SteelSteel Rods
Technical Specifications
Performance Metrics
8,000 rpm
Max Rotary Speed
120 T
Max Teeth Count
500 mm
Max Outer Diameter

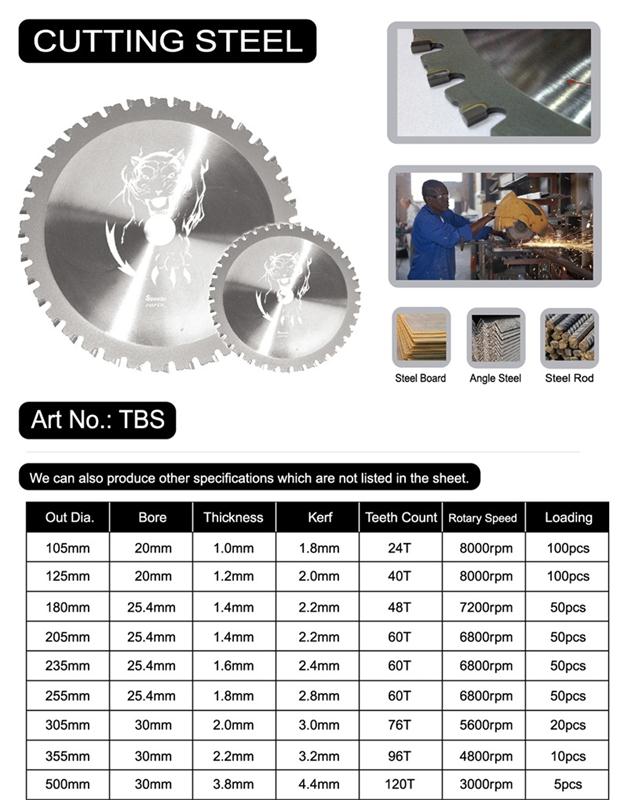

Size and Performance Specifications
| Outer Dia. | Bore | Thickness | Teeth | Speed |
|---|---|---|---|---|
| 105mm | 20mm | 1.0mm | 24T | 8000rpm |
| 125mm | 20mm | 1.2mm | 40T | 8000rpm |
| 180mm | 25.4mm | 1.4mm | 48T | 7200rpm |
| 205mm | 25.4mm | 1.4mm | 60T | 6800rpm |
| 235mm | 25.4mm | 1.6mm | 60T | 6800rpm |
| 255mm | 25.4mm | 1.8mm | 60T | 6800rpm |
| 305mm | 30mm | 2.0mm | 76T | 5600rpm |
| 355mm | 30mm | 2.2mm | 96T | 4800rpm |
| 500mm | 30mm | 3.8mm | 120T | 3000rpm |
