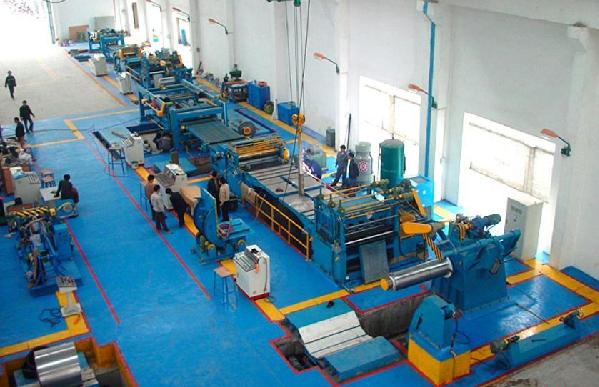

Steel Coil Leveling and Cutting Line
This production line processes steel coil into flattened plates of specified dimensions through uncoiling, leveling, and cross shearing. It delivers precise length and width control for diverse steel plate applications.
Technical Specifications
Overview
High-Precision Steel Coil Processing
This industrial production line is engineered for the efficient processing of various metal coils, transforming raw material into flattened sheets of precise dimensions. The system integrates a comprehensive workflow including uncoiling, leveling, cross shearing, and automated stacking. Designed for high-throughput environments, it ensures consistent quality and dimensional accuracy for steel, aluminum, and other metal materials.
Process Workflow
Operational Sequence
- Loading
- Uncoiling
- Pressing and Guiding
- Pinch-feeding
- Transitional Worktable
- Guiding

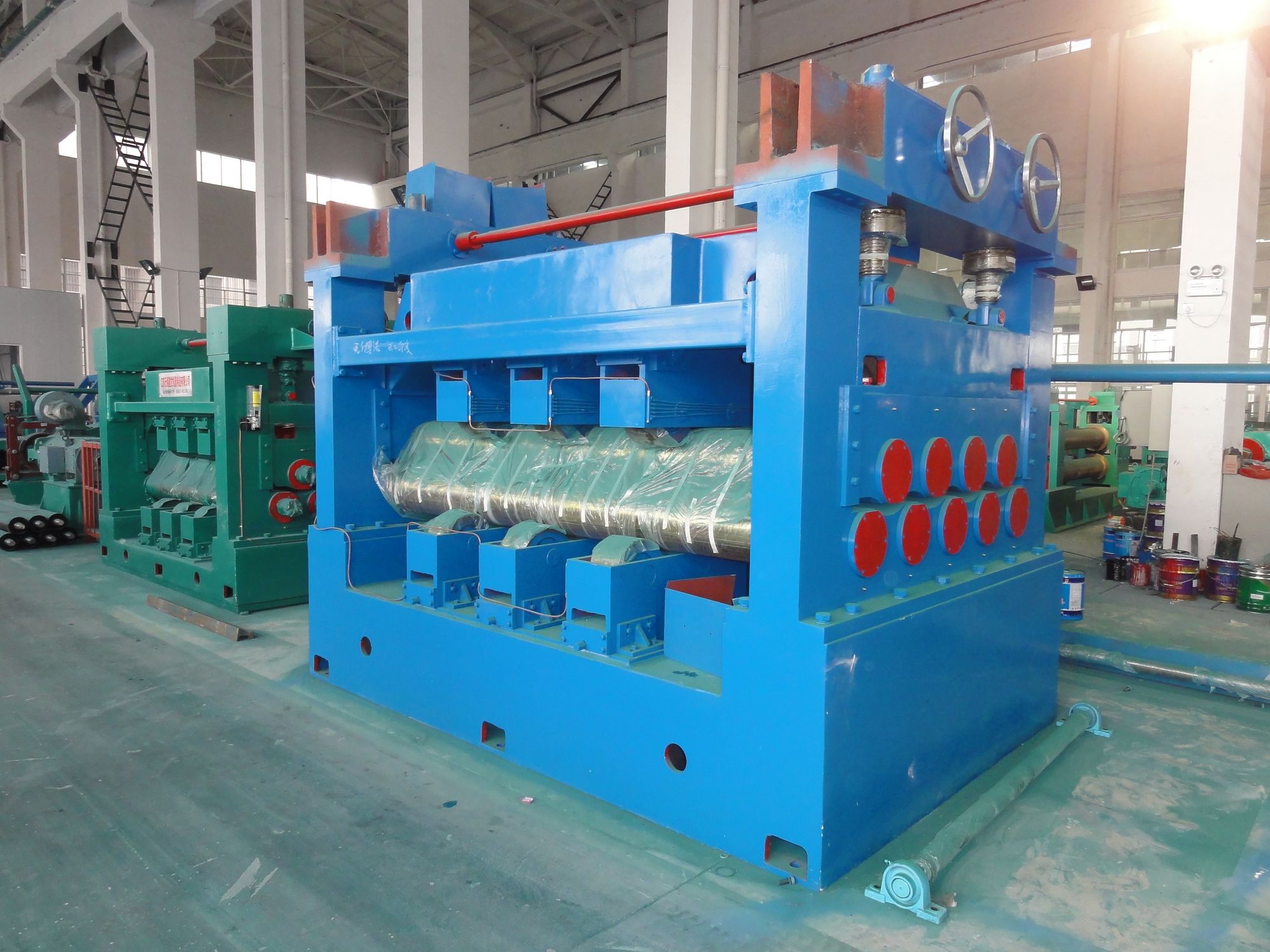

- Leveling
- Length Measuring
- Cross Shearing
- Unloading
- Stacking
- Manual Bale
Technical Specifications
Performance Parameters
35 Ton
Max. Coil Weight
70 m/min
Max. Leveling Speed
0.3 mm
Cutting Precision
Material Handling Capabilities
| Parameter | Range |
|---|---|
| Coil Thickness | 0.3-25 mm |
| Coil Width | 800-2500 mm |
| Stacking Length | 1000-12000 mm |
Capabilities
- Suitable Materials
- SteelAluminumMetal Coils
