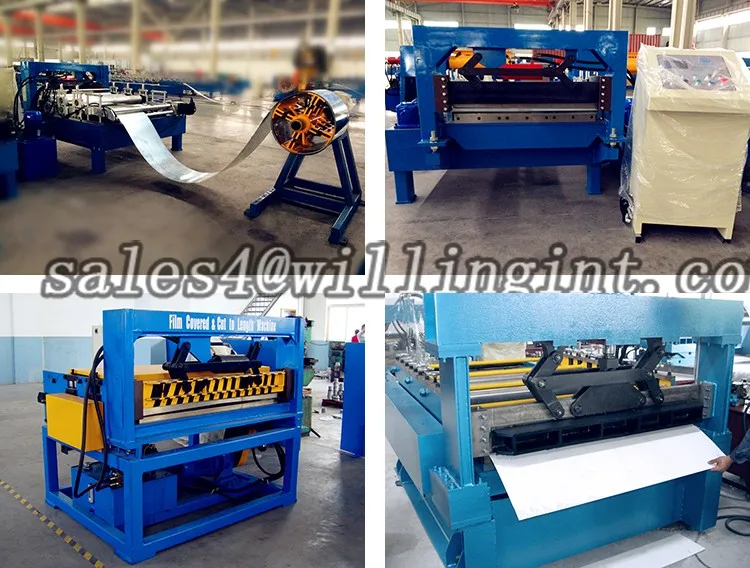

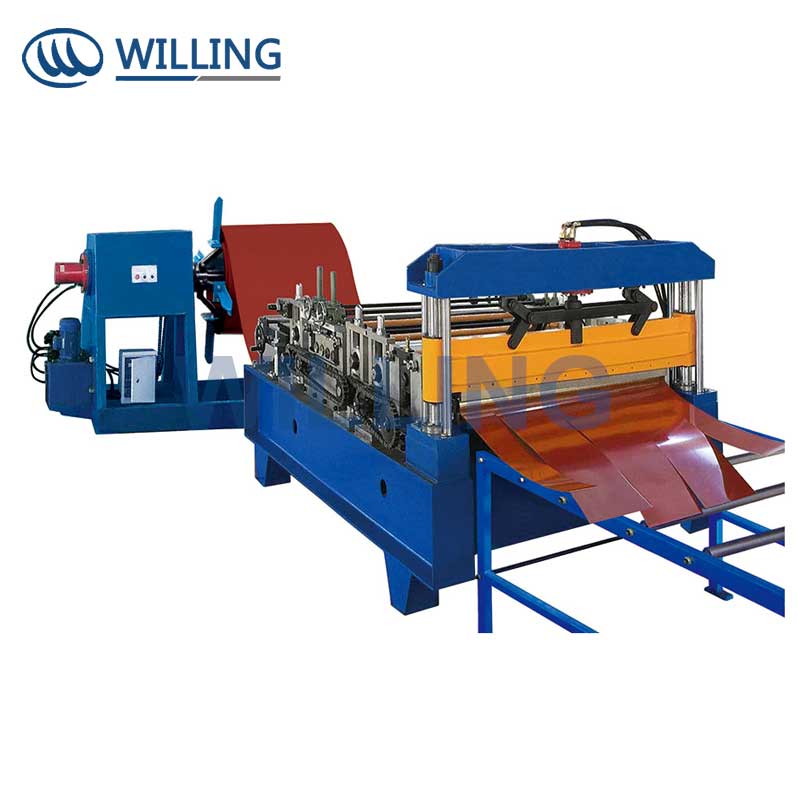

Steel Coil Cut-to-Length Machine
This cut-to-length machine processes steel coils into desired sheet lengths. It is designed for ease of operation with a focus on delivering precise and efficient cutting.
Technical Specifications
Product Overview
High-Precision Steel Coil Processing
This Steel Coil Cut-to-Length Machine is an efficient solution for processing galvanized and color steel coils into precise sheets. Designed for ease of operation, it integrates decoiling, leveling, and shearing into a single automated workflow. With a robust build and high leveling precision, it is ideal for building material shops and industrial manufacturing requiring consistent sheet metal dimensions.
Technical Performance
Performance Highlights
35 m/min
Max Cutting Speed
1,250 mm
Max Cutting Width
0.5 ±mm/m
Leveling Precision
Material Compatibility
- Galvanized Steel Coil
- Color Steel Coil
- Thickness Range: 0.2 - 1.2 mm
Machine Specifications
- Physical Dimensions
- 3880 x 2150 x 2000 mm
- Machine Weight
- 1200 kg
- Rated Power
- 7.5 kw
- Coil Weight Capacity
- 5 T
Control & Operation

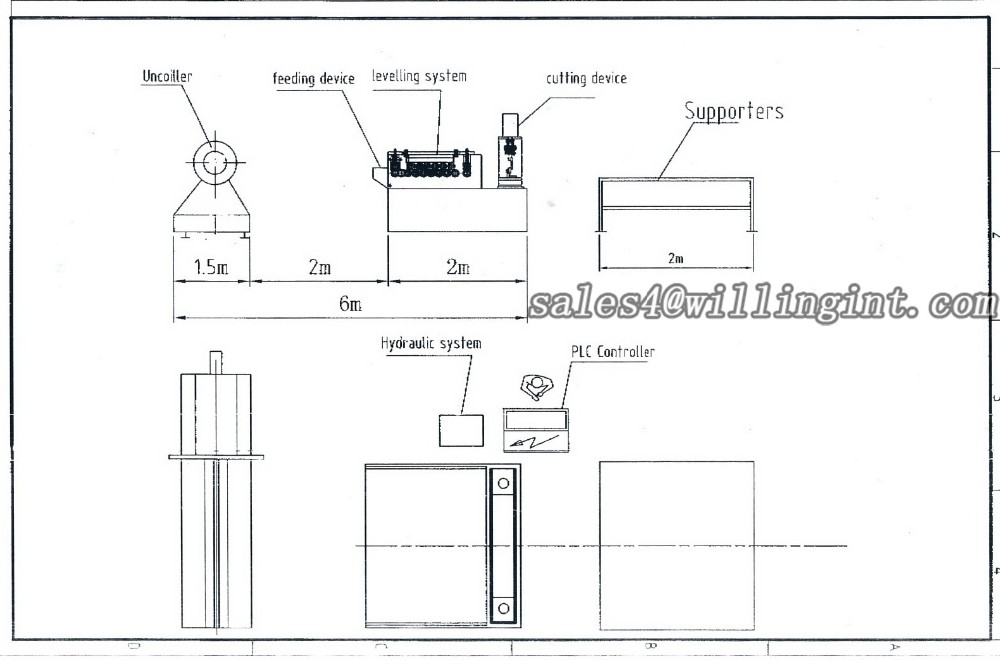

System Components
- Uncoiler (Decoiler)
- Feeding Device
- Leveling System
- Hydraulic Cutting Device
- PLC Controller
- Material Supporters
Key Selling Points
Easy to OperateNew ConditionAutomated Shearing
Service & Support
After-Sales Services
- Free spare parts
- Field installation and commissioning
- Operator training
- Field maintenance and repair
- Online and video technical support
- Overseas engineering service available
- Warranty
- 1 Year
Compliance
- Quality Standards
- CEISO 9001:2008
Logistics
Lead Time & Packaging
| Quantity (Sets) | Est. Time (Days) | Package Size |
|---|---|---|
| 1 - 1 | 15 | 650 x 130 x 110 cm |
| > 1 | Negotiable | 4500 kg Gross Weight |
