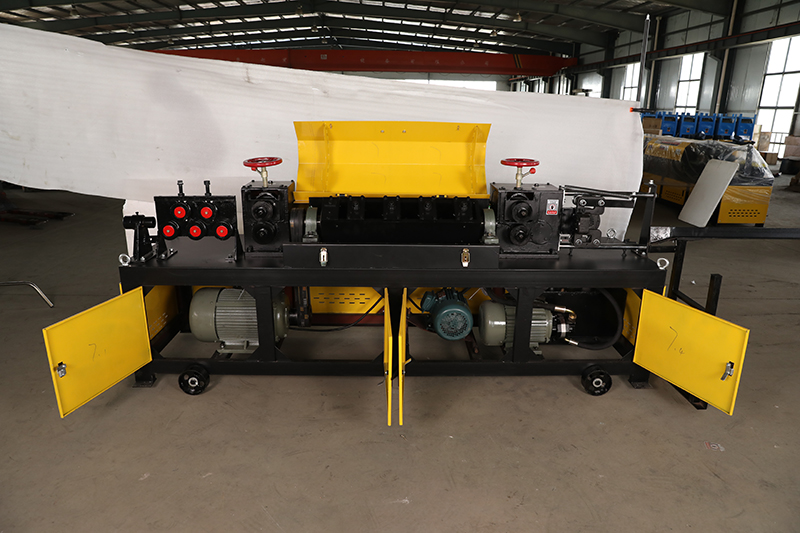

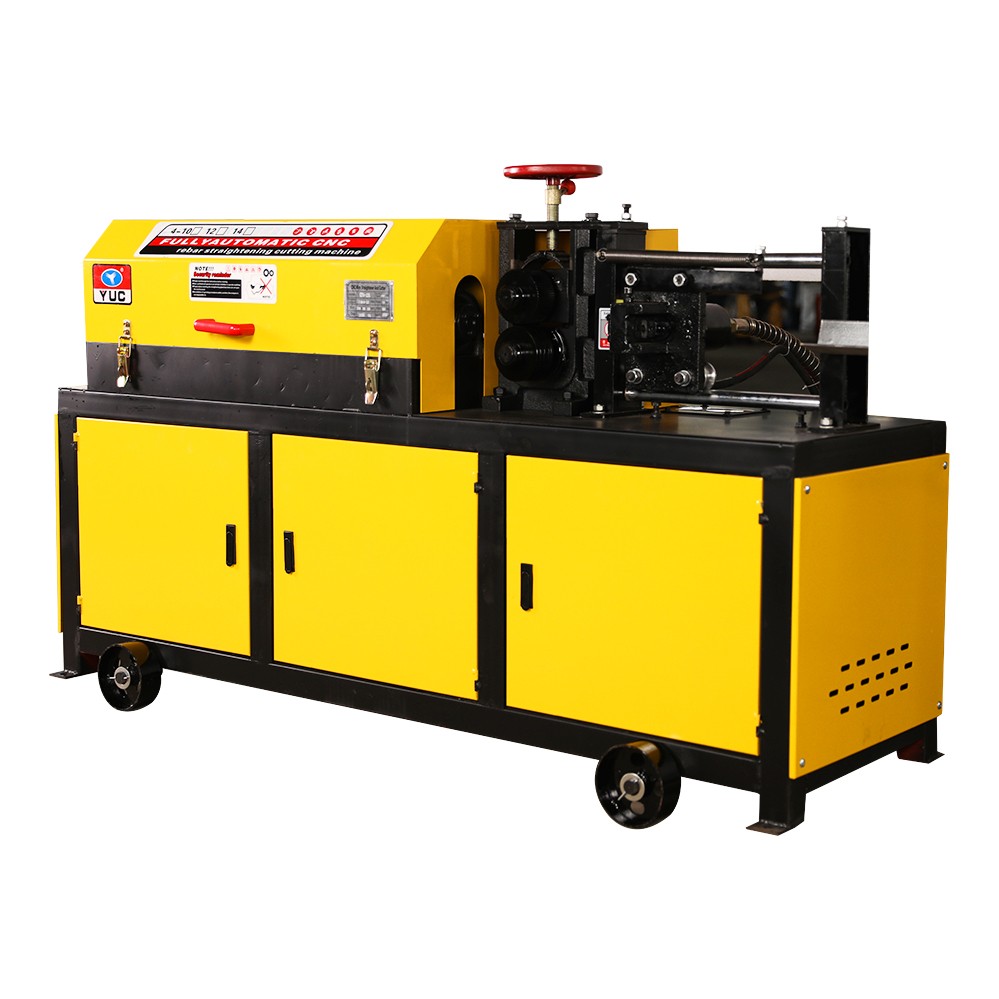

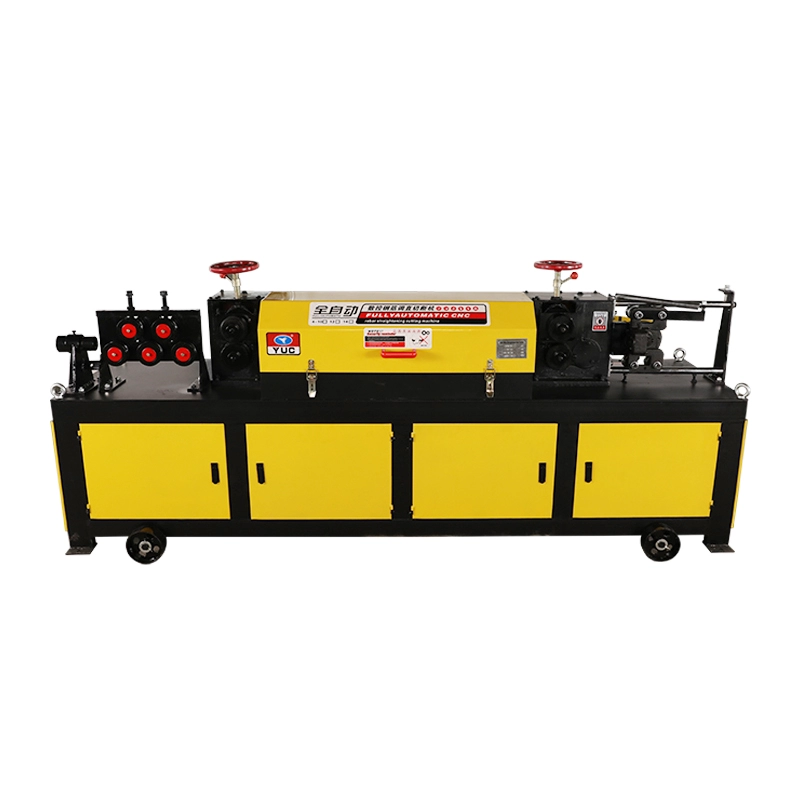

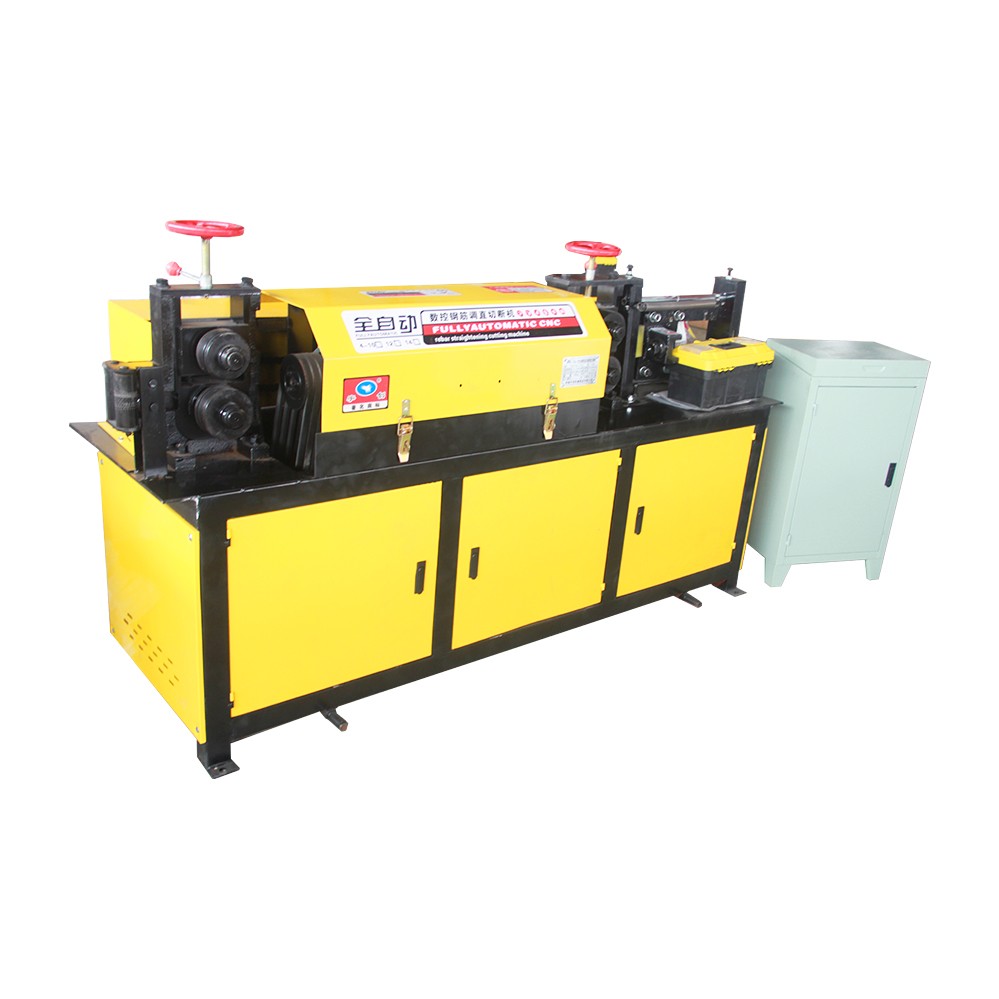

Steel Bar Straightening Machine
The steel bar straightening machine is designed for straightening and processing steel bars. It features a robust construction and adjustable settings for optimal performance.
Technical Specifications
Overview
Industrial Steel Bar Straightening Solution

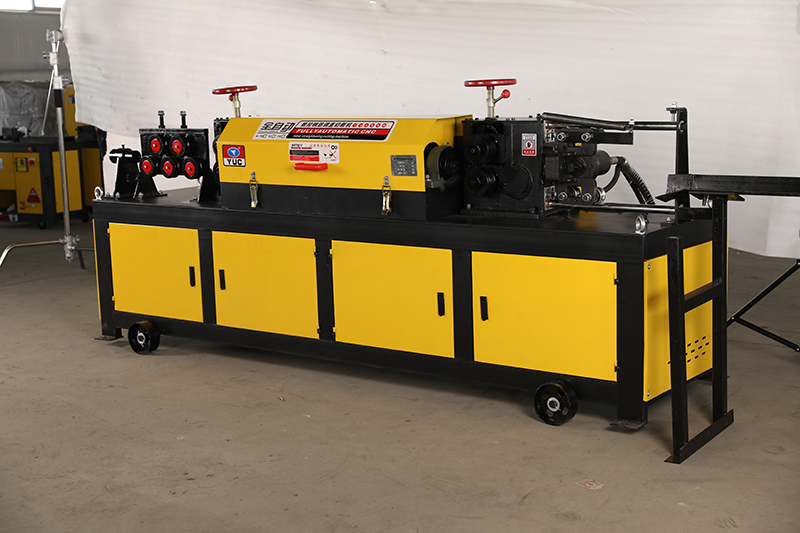

This fully automatic CNC steel bar straightening and cutting machine is designed to deliver precision and efficiency for construction and metalworking operations. Featuring robust, industrial-grade construction, it handles various bar diameters with high-volume capacity. Integrated with a programmable control system, it ensures consistent straightening and cutting results while enhancing overall workplace productivity.
Technical Specifications
- Model
- GTQ 4-14
- Working Capacity
- 4-14 mm
- Motor Power
- 26 kW (380V, 3-Phase)
- Net Weight
- 1250 kg
- Dimensions
- 2500 x 800 x 1000 mm
Features & Benefits
- Key Features
- Fully Automatic CNCAdjustable Feed RollersHydraulic Cutting SystemMobile Base with WheelsSafety GuardsEmergency Stop
Ordering Information
Payment Terms
- T/T (Telegraphic Transfer)
- Western Union
- 30% Deposit required
- 70% Balance due before delivery
- Minimum Order Quantity
- 1
