Steel Bar Double Bending Machine

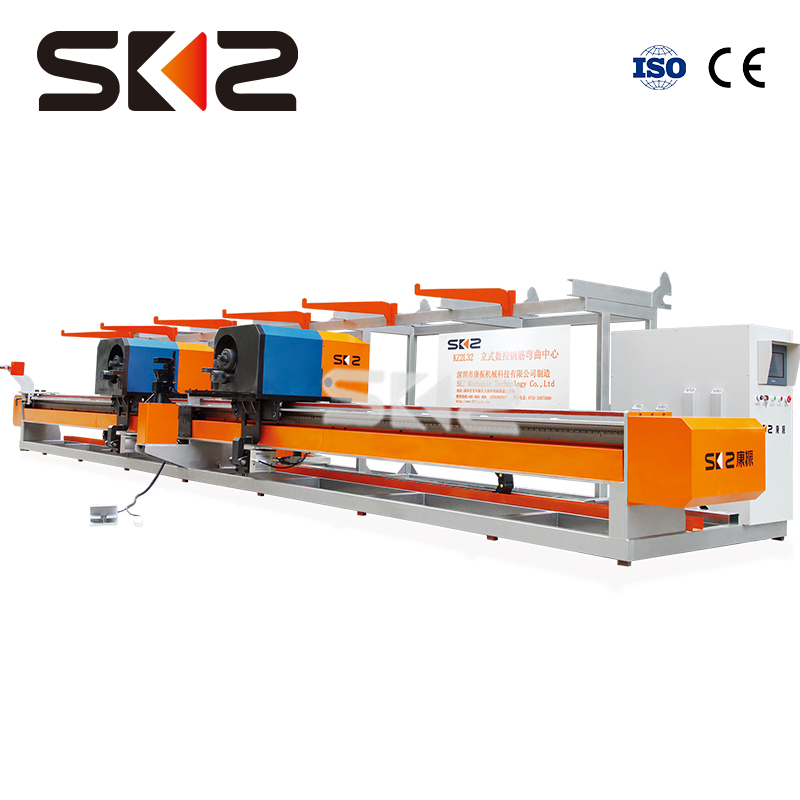

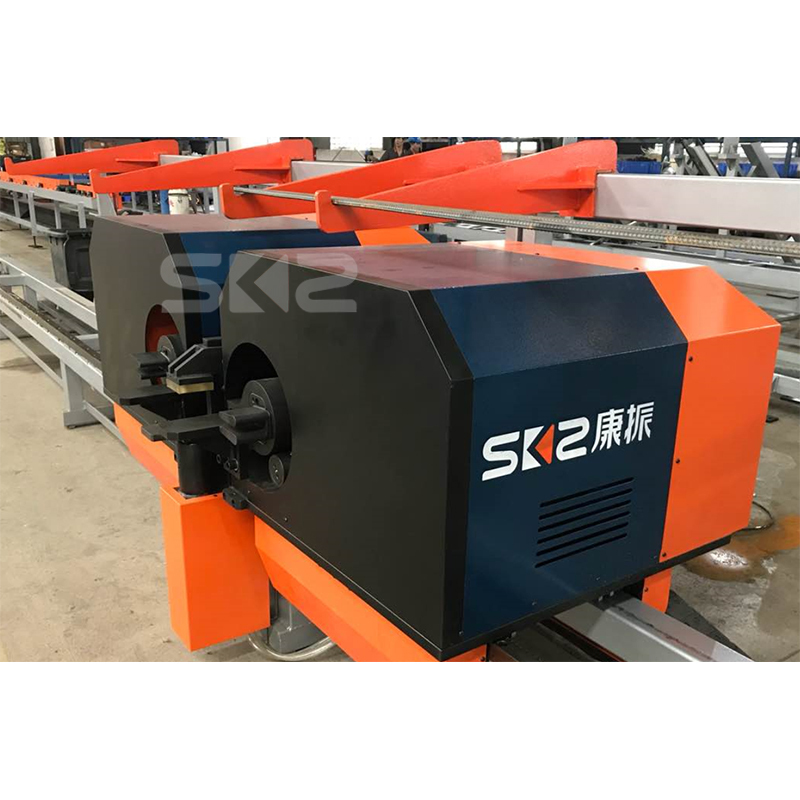

This vertical double bender is designed for bending metal rods or bars into specific shapes. The machine allows for precise adjustment of bending angles and radii, accommodating a wide range of material types and thicknesses.
Technical Specifications
Product Overview
High-Efficiency CNC Rebar Processing
This numerically controlled, fully automatic steel bar bending machine is engineered for high-precision operations in demanding environments like bridge construction and high-speed rail projects. It features advanced servo control for complex forward and reverse bending within a single cycle. With modular design and comprehensive graphic database presets, the machine offers exceptional efficiency and adaptability for rebar diameters ranging from 10mm to 32mm.
Key Features
- Compliance and Standards
- ISO CertifiedCE CompliantCNC Servo Control
Technical Parameters
Performance Highlights
68 °/s
Bending Speed
14 KW
Electric Power
4,500 kg
Weight
Rebar Processing Capacity
| Rebar Diameter (mm) | Max Qty (Pcs) |
|---|---|
| 10 | 6 |
| 12 | 5 |
| 14 | 4 |
| 16 | 3 |
| 20 | 3 |
| 22 | 2 |
| 25 | 2 |
| 28 | 1 |
| 32 | 1 |
- Machine Dimensions
- 12630 x 2200 x 1500 mm
Operational Limits
Bending Angles
- Φ10-28mm: +180°, -100°
- Φ32mm: +90°, -90°
Operating Conditions
- Working Temperature: 0-40°C
- Cylinder Pressure: ≥0.6 Mpa
- Voltage: 380V 50Hz
