Steel Bar Bender
This steel bar bender is designed for bending steel bars in various angles and shapes. It is suitable for construction and metalworking applications.
Technical Specifications
Product Overview

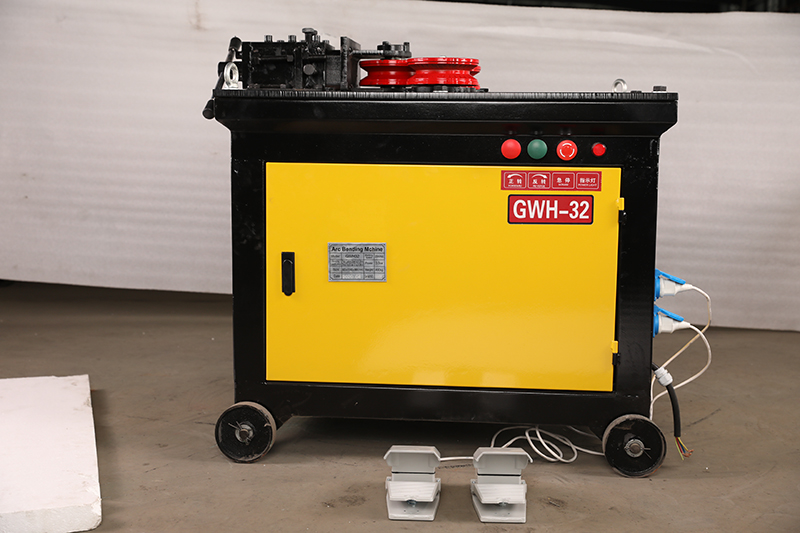

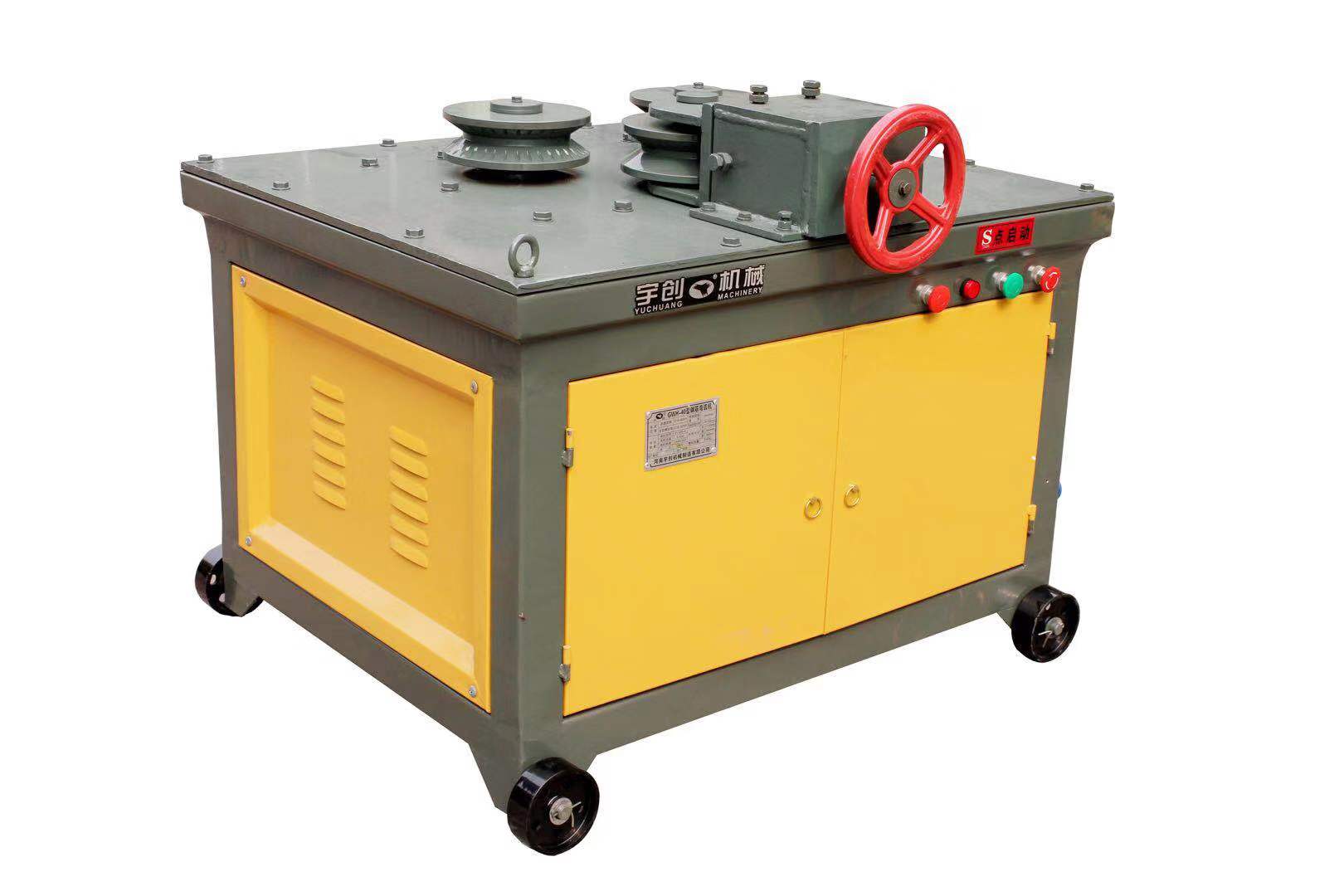

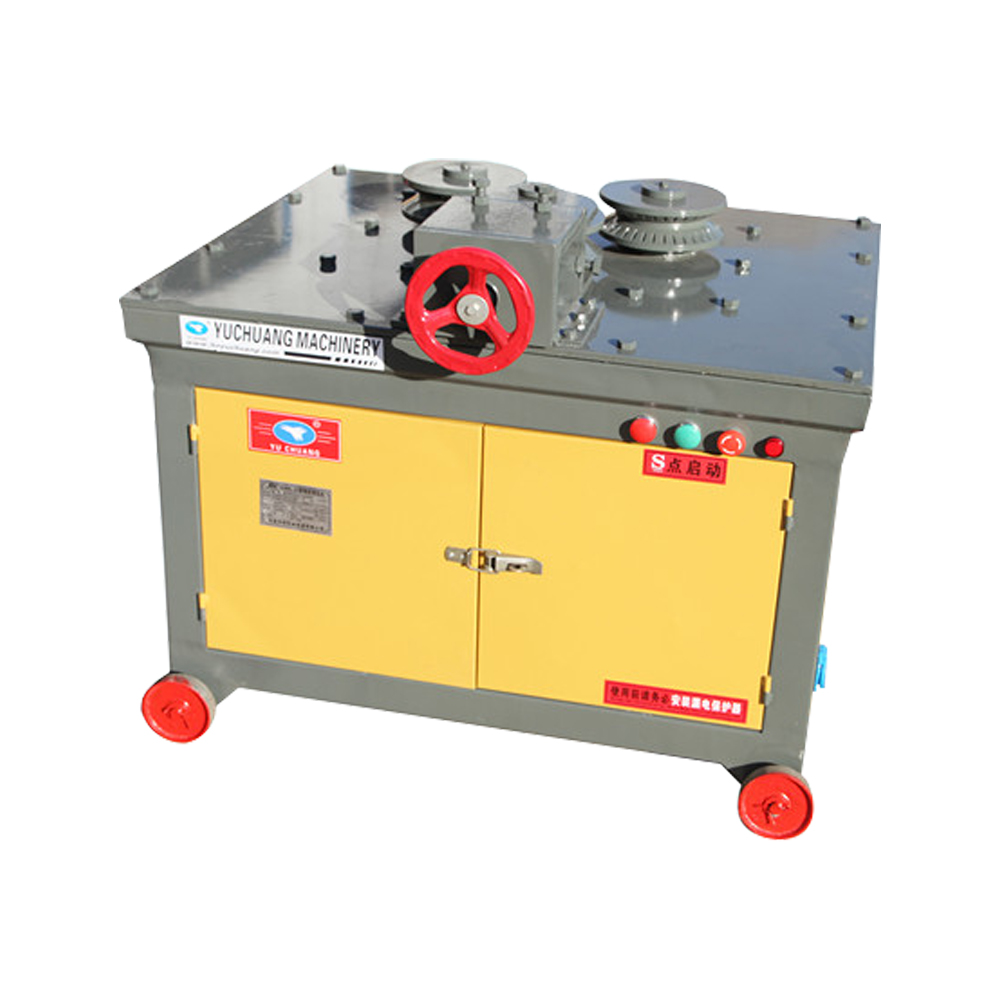

Industrial Steel Bar Curving Machine

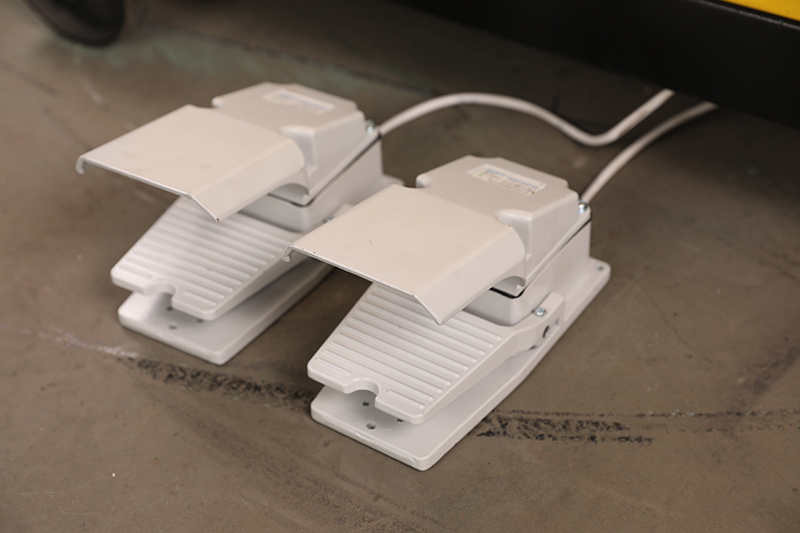

This high-performance steel bar curving machine is engineered for precision bending in construction and metalworking environments. It features a robust, heavy-duty frame designed to ensure stability and accuracy during operation. The system includes integrated manual and automated controls, safety features like emergency stops, and is mounted on wheels for easy site maneuverability. Available in multiple model configurations, it offers versatile power options to meet specific regional requirements.
Technical Specifications
Model Comparison
| Feature | GWH25 | GW50 | GWH40 |
|---|---|---|---|
| Bender Diameter | 8-22mm | 16-28mm | 16-36mm |
| Motor Speed | 1460r/min | 1460r/min | 1460r/min |
| Motor Power | 3KW, 380V | 4KW, 380V | 5.5KW, 380V |
| Dimensions | 800×600×700mm | 800×600×800mm | 1200×1000×1100mm |
| Weight | 300kg | 360kg | 600kg |
Service & Customization
- Customization Available
- Color CustomizationVoltage Motor Adaptation
Logistics & Safety

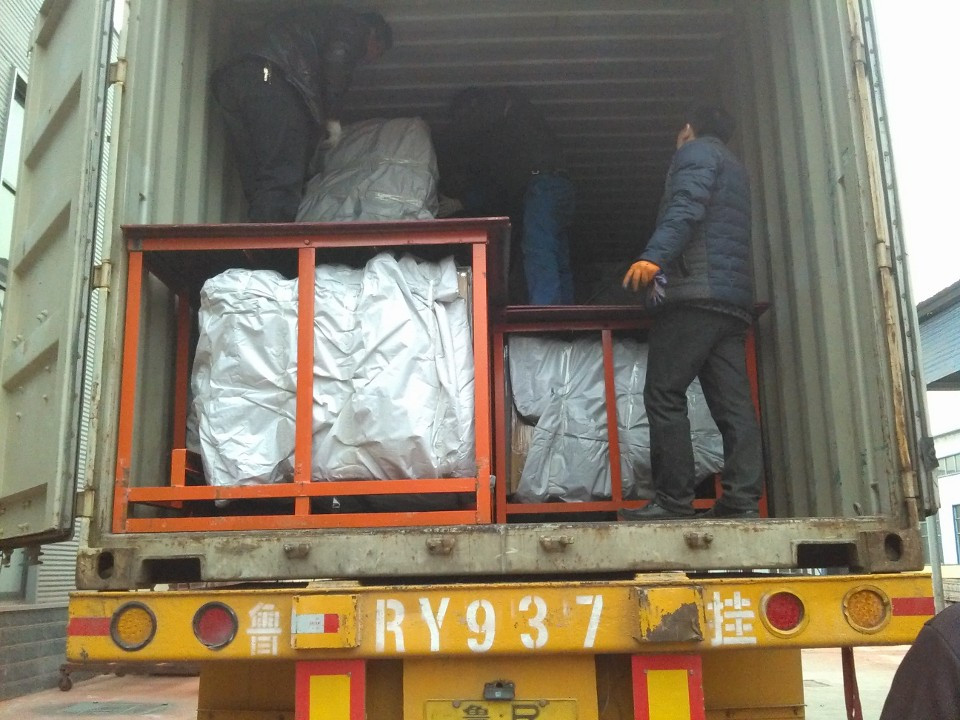

- Packaging Standard
- Equipped with strong wooden box and iron shelf reinforcement for secure transport.
