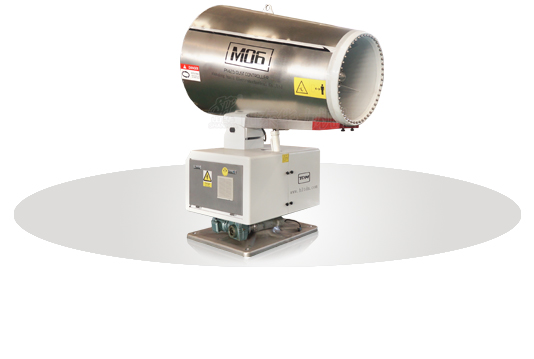

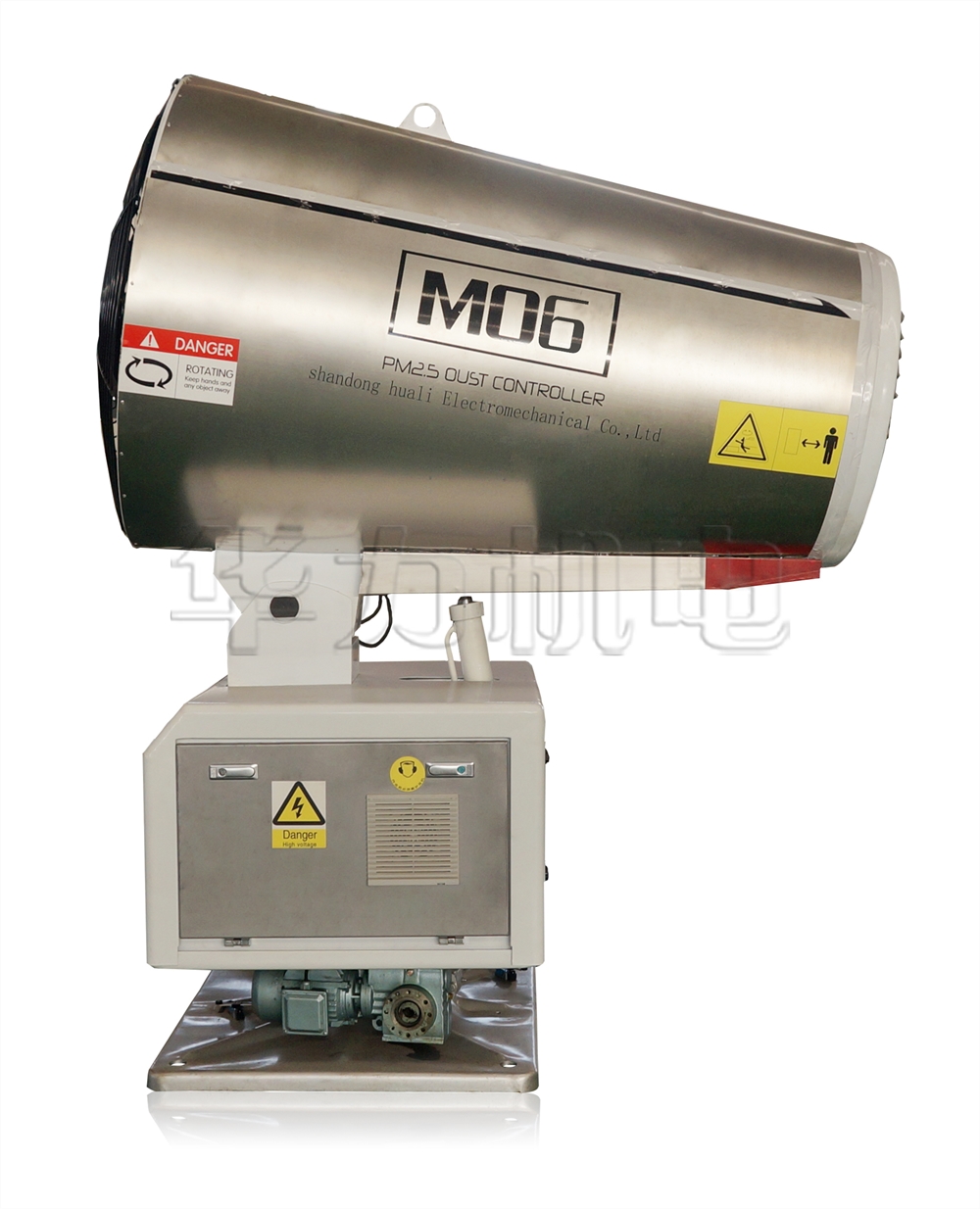

Stationary 60m Spray Cannon for Dust Suppression
This spray cannon is engineered for effective disinfection and dust control in outdoor environments. It helps to significantly improve air quality by capturing airborne particles.
Technical Specifications
Overview
High-Performance Dust Suppression
The TMD-M06 is a powerful stationary spray cannon designed for effective dust suppression, odor control, and air purification across large-scale industrial sites. With a robust 60-meter spray range and a high-density 78-nozzle system, it creates a fine water mist that efficiently captures airborne PM2.5 particles. This versatile unit is ideal for demanding environments such as mining operations, construction sites, and waste treatment facilities.
Performance Metrics
Key Performance Metrics
60 m
Spray Range
8.5 m³/h
Water Consumption
78 pcs
Nozzle Count
Technical Specifications
- Model Number
- TMD-M06
- Total Power
- 27.5 kw
- Fan Power
- 18.5 kw
- Water Pump Power
- 7.5 kw
- Pump Pressure
- 1.5-2 Mpa
- Mist Particle Diameter
- 20-150 μm
Operation & Control
- Control Interface
- Remote ControllerTouch Panel
- Turning Degree
- ±180°
- Pitching Angle
- Up 55° / Down -10°
Physical Properties
- Dimensions (L*W*H)
- 1900 x 1155 x 2365 mm
- Operating Weight
- 1200 kg
Environmental & Safety
IP Grade
IP55
- Noise Level
- 70dB at 7.5m
- Usage Temperature
- 0°C - 50°C
Power Supply
Power Requirements
- AC Power Supply
- 3-Phase
- 375V-415V
- 50Hz Frequency
