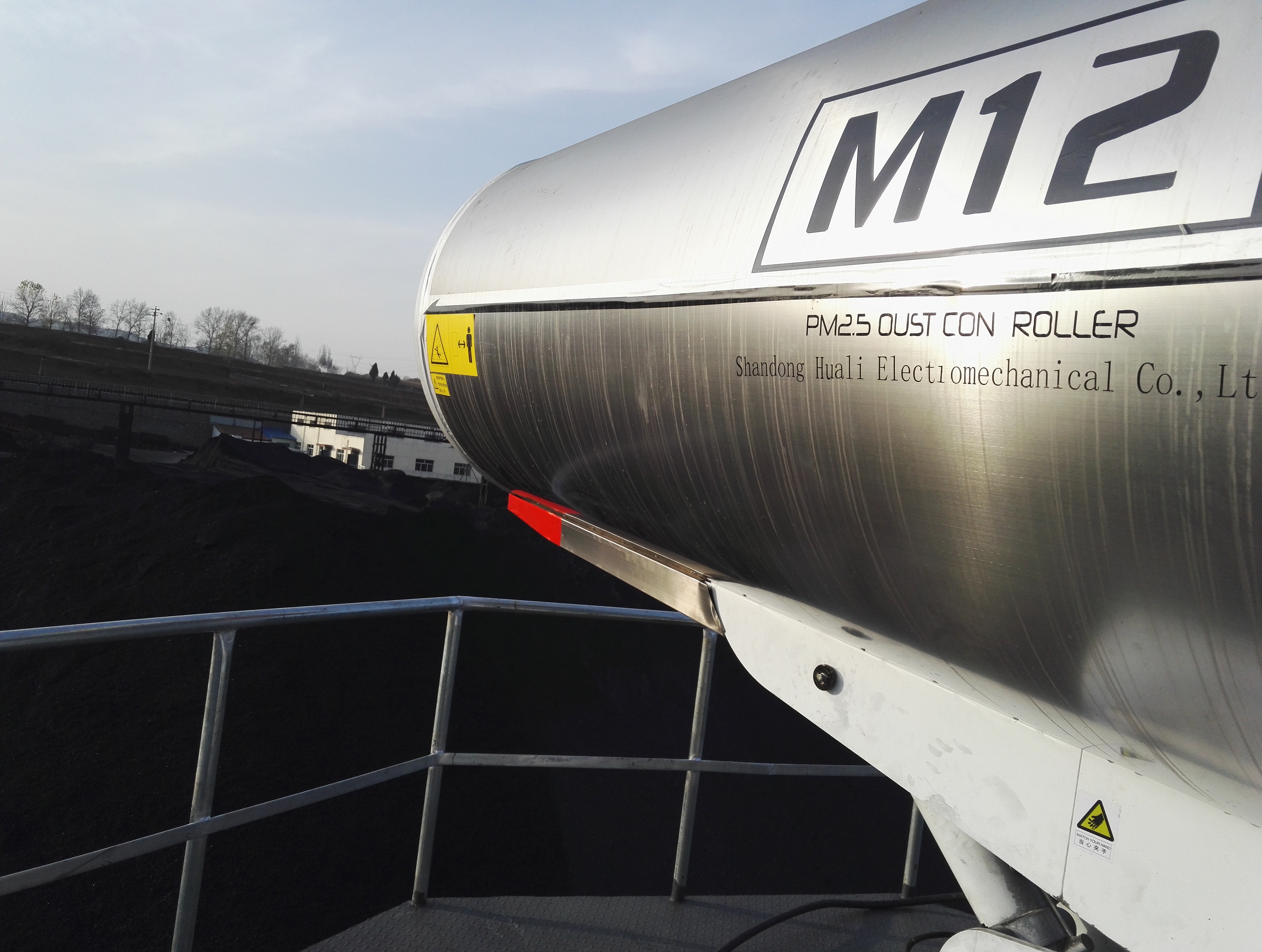

High Tower Cooling Fog Cannon for Dust Suppression
This spray cannon is designed for disinfection and dust control in the air. It helps to control dust effectively, improving the surrounding environment.
Technical Specifications
Overview
High-Performance Dust Suppression Solution
This high-tower cooling fog cannon is engineered for large-scale industrial dust suppression and temperature management. Designed for demanding environments like coal yards, power plants, and steel works, it delivers a powerful 120-meter spray range to ensure comprehensive coverage. With advanced control options and robust construction, it provides reliable, continuous operation in harsh conditions.
Performance Metrics
Key Performance Metrics
120 m
Spray Range
12 m³/h
Water Consumption
85 dB
Noise Level (at 20m)
Technical Specifications
Power Requirements
| Component | Power |
|---|---|
| Total Power | 67.5 kW |
| Fan Power | 55 kW |
| Water Pump Power | 11 kW |
- Dimensions and Weight
- 3100 x 1700 x 2500 mm, 2700 kg
Operational Details
Spray Geometry
- Turning degree: ±180°
- Pitching degree: Up 50° / Down -10°
- Water mist particle diameter: 20-200µm
- Nozzles quantity: 100pcs
- Control Methods
- Remote ControllerTouch Panel
Environmental & Electrical
Operating Conditions
- IP Grade: IP55
- Operating Temperature: 0-50°C (Optional heater available for -30-50°C)
- Water Pump Pressure: 1.5-2 MPa
- Power Supply
- AC/3-phase/375V-415V/50HZ
