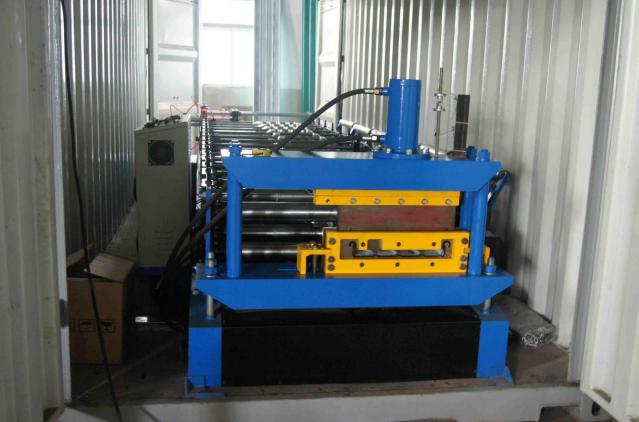

Standing Seam Profile Roll Forming Machine
This standing seam profile roll forming machine is designed for efficient production of metal roofing panels. It utilizes a robust hydraulic system for precise cutting and forming.
Technical Specifications
Product Overview
Professional Standing Seam Roll Forming Solution
This standing seam profile roll forming machine is engineered for the high-efficiency production of precision metal roofing panels. Featuring a robust construction with a 4kW power system, it supports continuous processing from decoiling through to accurate cut-to-length output. With its durable 40CR shaft assembly and adjustable forming stations, it ensures material integrity and consistent profile quality for both residential and commercial roofing applications.
Performance Metrics
Key Operational Metrics
15 M/MIN
Maximum Forming Speed
4 KW
Motor Power
14 rows
Quantity of Rollers
Material Specifications
- Compatible Materials
- Galvanized SteelPPGI
- Thickness Range
- 0.2 - 1.0 mm
Construction & Design
Build Details
| Component | Specification |
|---|---|
| Shaft Diameter | 70 mm |
| Shaft Material | 40CR |
| Body Frame | 400H Steel |
| Wall Panel | 20mm Q195 Steel |
Operational Details

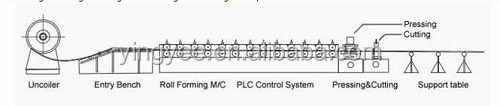

Production Flow
- Decoiling
- Feeding
- Guiding
- Roll forming
- Cut to length
- Output table
- Cutting Tolerance
- 3m ± 1.5mm
