Technical Specifications
Overview

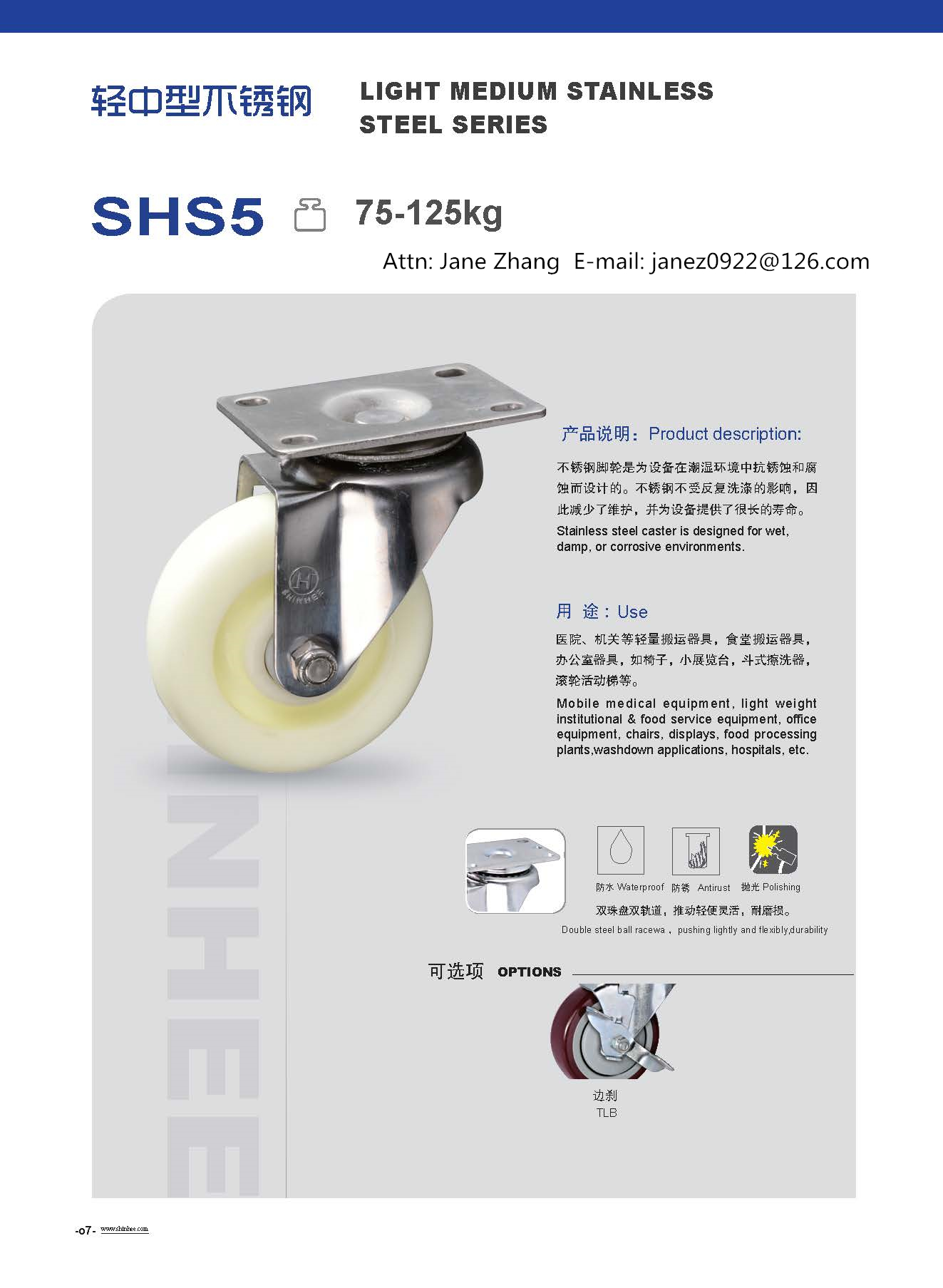

Corrosion-Resistant Mobility Solution
These stainless steel industrial casters are engineered specifically for wet, damp, or corrosive environments, making them ideal for food processing plants, medical facilities, and washdown applications. Featuring a durable double steel ball raceway, these casters offer smooth, flexible movement and long-lasting performance. With options for various wheel materials and mounting configurations, they provide a reliable, low-maintenance mobility solution for institutional and commercial equipment.
Key Features
Key Features
WaterproofAnti-rustPolished FinishDouble Steel Ball RacewayWashdown Compatible
- Optional Configurations
- TLB Side BrakeNylon Double BrakeSwivelRigid
Performance Metrics
Load Capacity Range
90 kg
Minimum
130 kg
Maximum
Wheel Diameter Range
75 mm
Minimum
125 mm
Maximum
Technical Specifications
Mounting Plate Dimensions
| Type | Overall Size (mm) | Thickness (mm) |
|---|---|---|
| Rigid | 95.5 x 70.5 | 2.5 |
| Swivel | 92 x 61 | 3.5 |
Bearing Types
- Delrin
- Stainless Steel Ball
- Stainless Steel Bushing
Wheel Core Materials
- Hard Core Polyurethane (SP)
- Molded Core Polyurethane (PU)
- Engineering Copolymer Polypropylene (PP)
