Stainless Steel Downpipe and Decking Forming Machine

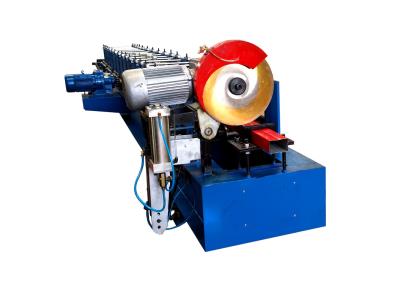

This machine is engineered for forming stainless steel downpipes and decking profiles. It utilizes a rolling mill process with a series of rollers and a cutting mechanism for precise length control.
Technical Specifications
Overview
High-Performance Downpipe & Decking Forming Solution
This industrial-grade roll forming machine is engineered for the precise production of stainless steel downpipes and decking profiles. It features a robust 12-row roller system and a high-speed flying saw cutting mechanism to ensure consistent dimensional accuracy. Designed for high-volume B2B manufacturing, the system integrates advanced PLC controls with multi-language support to streamline operation and maximize output efficiency.
Technical Performance
Key Performance Metrics
15 m/min
Max Working Speed
5 T
Uncoiler Capacity
5.5 kW
Main Motor Power
4 kW
Hydraulic Power
Material Specifications
Material Capabilities
| Parameter | Specification |
|---|---|
| Processing Material | Stainless Steel / Colored Steel |
| Feeding Thickness | 0.3 - 1.0 mm |
| Steel Coil Width | 1300 mm |
| Coil Inner Diameter | 500 - 508 mm |
| Max Outer Diameter | 1250 mm |
System Components

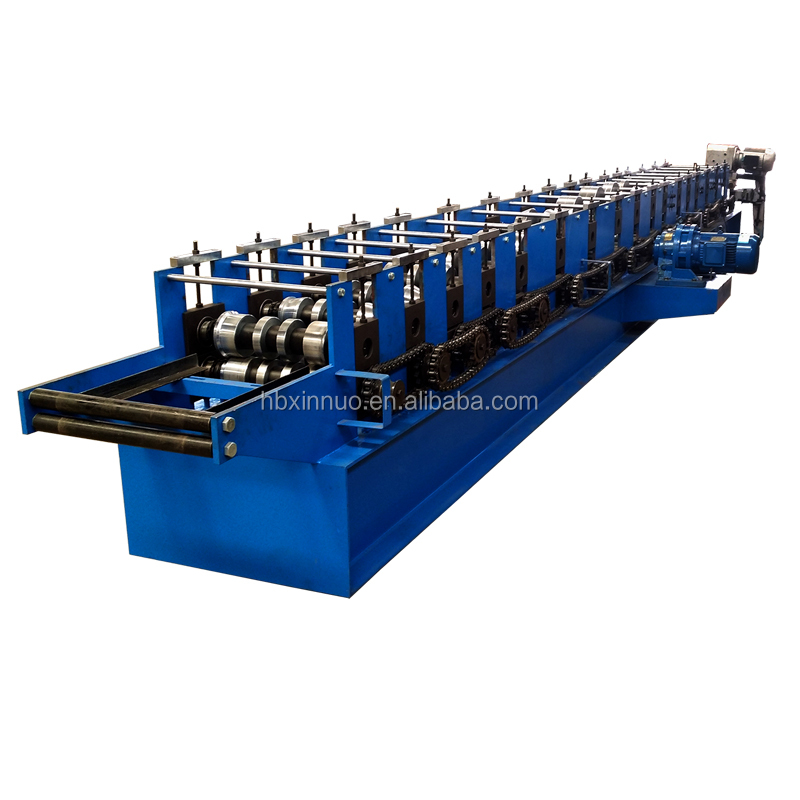

Roller System Details
- 12 Rows of forming stations
- Material: High grade No.45 forged steel
- Chain-driven synchronized movement
- Adjustable rollers for various profile sizes
Control & Operation
Control System Features
- PLC Computer Control Cabinet
- Programmable profile length and quantity settings
- Dual operation modes: Automatic and Manual
- Multi-language interface: English, Chinese, Spanish, Russian
- Interface Languages
- EnglishChineseSpanishRussian

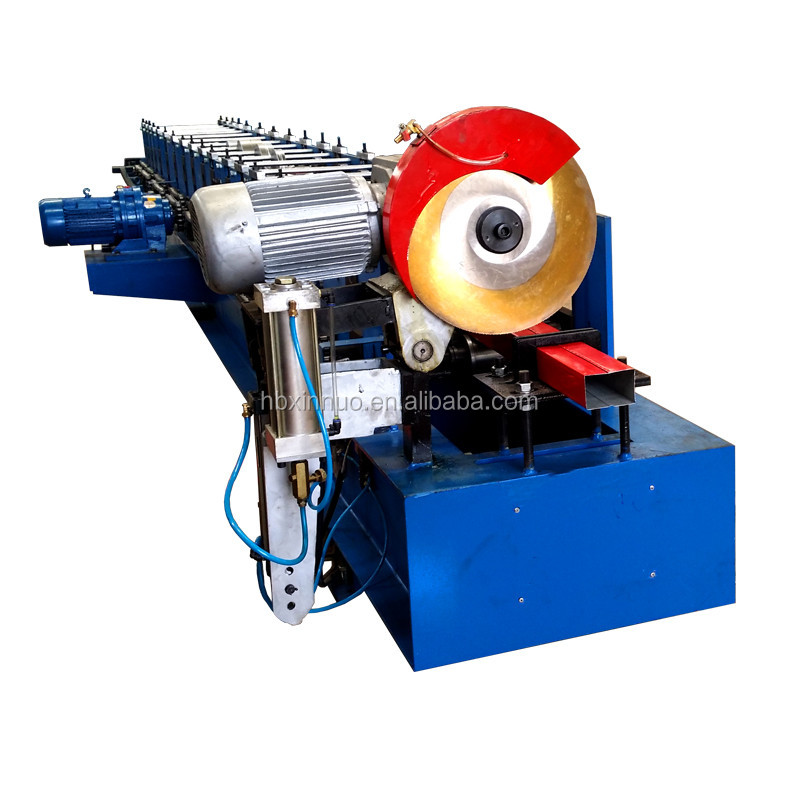

Cutting & Hydraulics
Cutting & Hydraulic Specs
| Feature | Details |
|---|---|
| Cutting Type | Flying Saws Cutting |
| Blade Material | Cr12Mov with quenched treatment |
| Hydraulic Pressure | 12-16 Mpa (Adjustable) |
| Hydraulic Oil Type | 46# hydraulic oil |
| Drive System | Hydraulic drive for precision dimension control |
Logistics & Delivery
Packaging & Lead Time
| Item | Details |
|---|---|
| Main Machine | Nude/Unpacked in container |
| Control Box | Wooden frame/packaging |
| Delivery Lead Time | 20 days |
