Product Overview

High-Precision Downpipe and Decking Formation

This industrial-grade roll forming machine is engineered for the high-volume production of stainless steel downpipes and decking profiles. It features a robust multi-station roller system and an integrated flying saw cutting unit to ensure consistent dimensions and clean finishes. Designed for durability and ease of use, the system incorporates advanced PLC controls and a versatile hydraulic drive, making it an essential solution for manufacturing construction and drainage components.

Applications: Stainless SteelDownpipe FormingDecking ProfilesIndustrial ConstructionMetal Fabrication

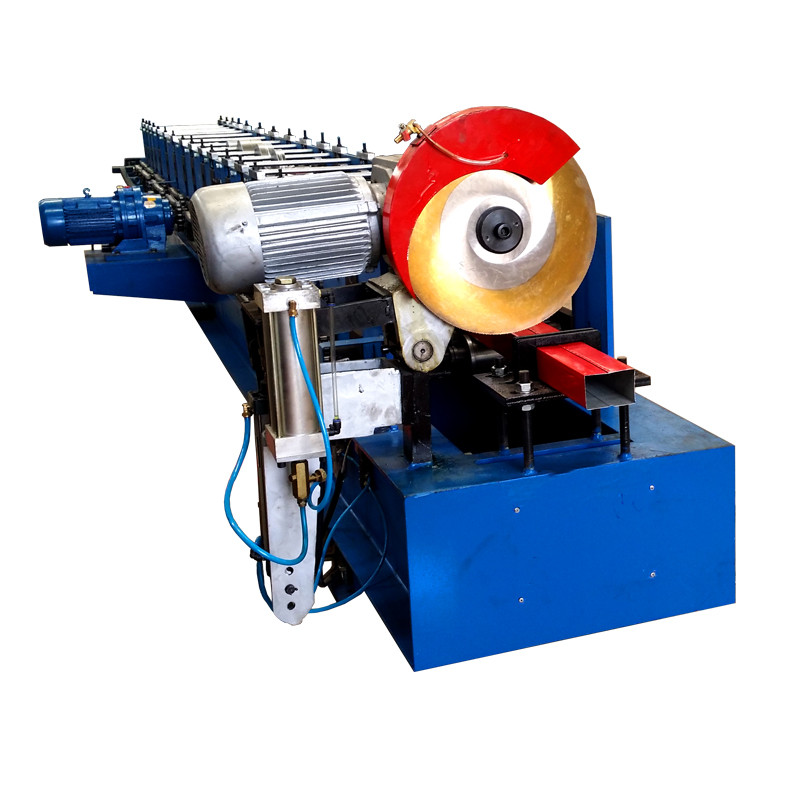

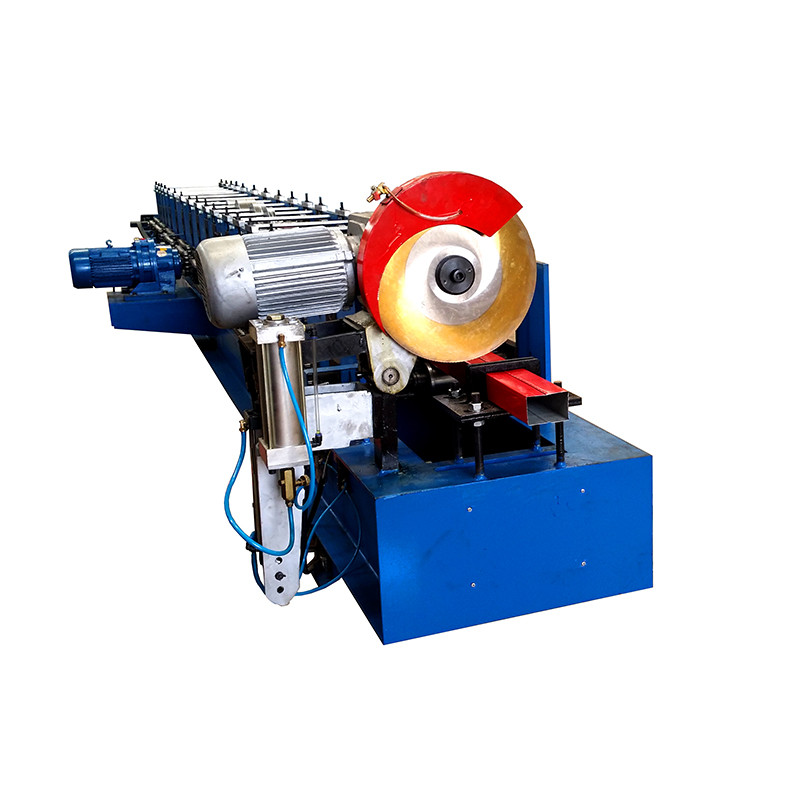

Stainless steel downpipe forming machine — High-efficiency rolling mill designed for precision downpipe and decking production.

Technical Performance

Key Performance Metrics

15 m/min

Max Working Speed

5 T

Uncoiler Capacity

12 rows

Roller Stations

Material Specifications

Material Capabilities

Parameter	Specification
Feeding Thickness	0.3 - 1.0 mm
Steel Coil Width	1300 mm
Coil Inner Diameter	500 - 508 mm
Max Outer Diameter	1250 mm

Control & Automation

Control System Features

PLC Computer Control System
Programmable length and quantity settings
Dual operation modes: Automatic and Manual
Multi-language support: English, Chinese, Spanish, Russian
Easy-to-operate interface

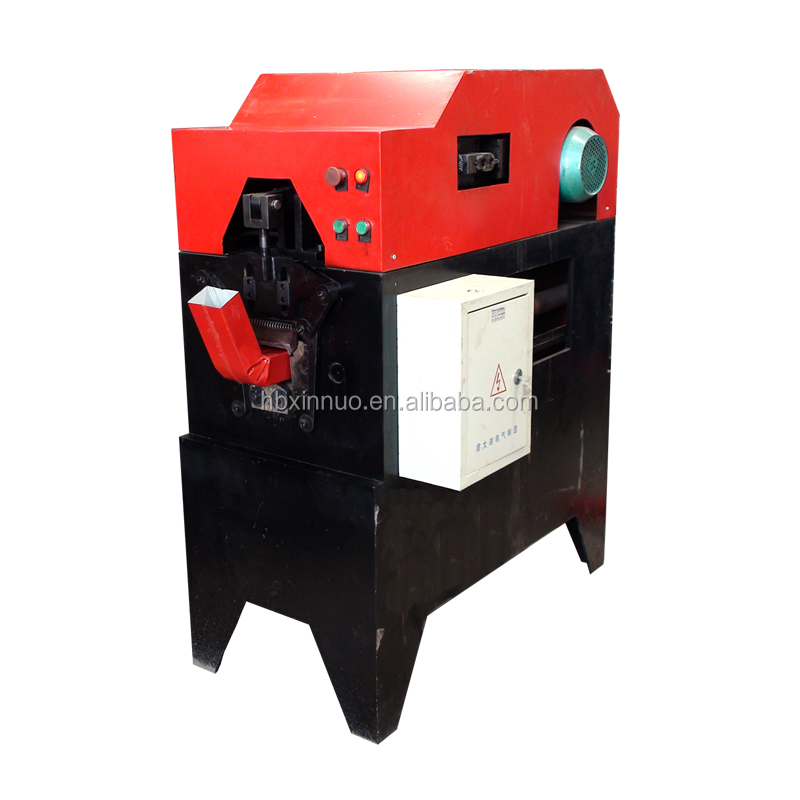

Control panel and safety enclosure — Industrial control interface and safety features for reliable operation.

Mechanical Components

Component Details

Component	Material / Specification
Roller Material	High grade No.45 forged steel
Cutting Blade	Cr12Mov with quenched treatment
Main Motor	5.5KW AC Motor
Hydraulic Power	4KW
Hydraulic Oil	46# hydraulic oil
