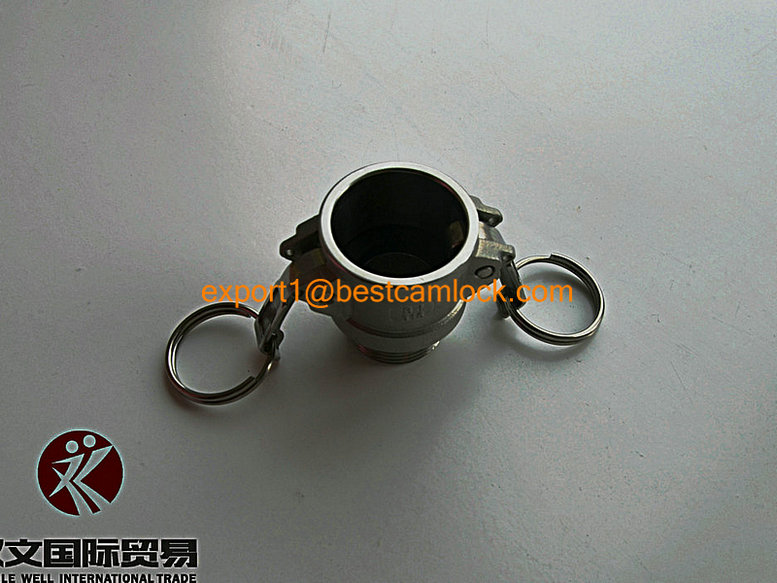

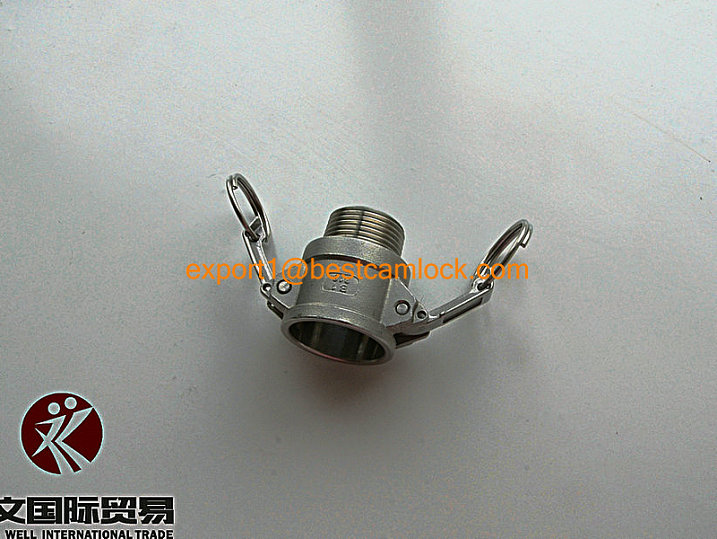

Stainless Steel 316 Camlock Quick Coupling with NPT Thread
This quick coupling offers excellent corrosion resistance and high-temperature capability. Its camlock design facilitates swift and simple connection and disconnection of hoses and pipes.
Technical Specifications
Product Overview
Industrial Grade Camlock Couplings
These high-quality stainless steel 316 camlock couplings are designed for efficient, secure fluid transfer in demanding industrial environments. Featuring a quick-connect cam and groove design, they offer excellent corrosion resistance and are suitable for use with water, saltwater, chemicals, hydraulic oil, and coolants. Their robust construction ensures a long service life and reliable performance across a wide range of temperatures.
Technical Specifications
- Material Options
- Stainless Steel 316Stainless Steel 304
- Thread Standards
- NPTBSPPBSPT
- Available Sizes
- 1/2" to 8"
- Temperature Range
- -150°F to +500°F
Performance Metrics
Working Pressure Ratings
| Size Range | Pressure (PSI) | Pressure (bar) |
|---|---|---|
| 3/4" - 2" | 250 PSI | 17.6 bar |
| 2 1/2" | 225 PSI | 15.8 bar |
| 3" - 4" | 200 PSI | 14.8 bar |
| 6" | 150 PSI | 10.5 bar |
Compliance & Construction
Seal Material Options
- NBR
- BUNA
- EPDM
- VITON
- Manufacturing Standards
- A-A-59326MIL-C-27487DIN 2828
- Handle Material
- BrassStainless Steel
