Technical Specifications
Product Overview

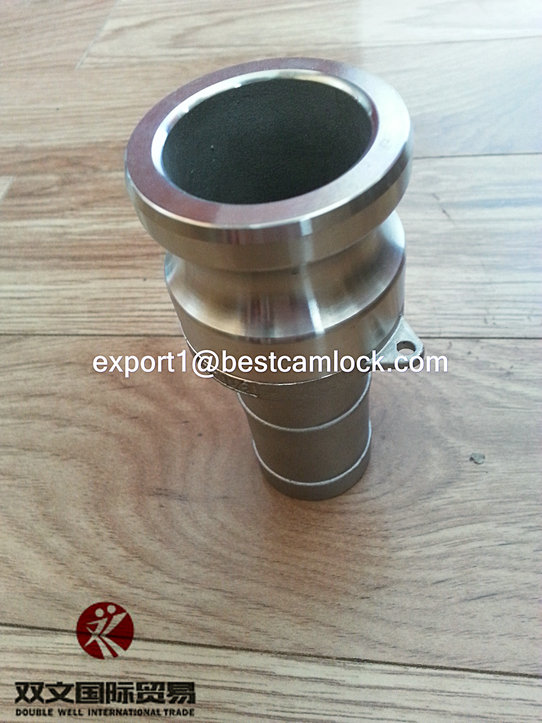

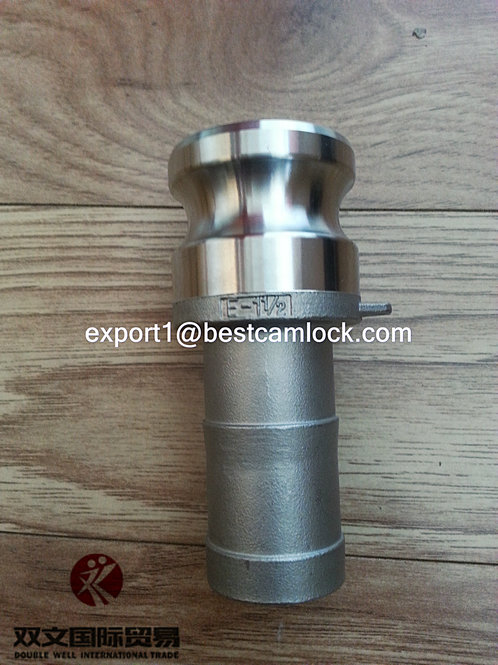

High-Performance Type E Camlock Coupling
The SS316 Stainless Steel Type E Camlock Coupling provides a secure and reliable solution for fluid transfer across industrial, chemical, and agricultural applications. Engineered from high-grade 316 stainless steel, this fitting offers exceptional corrosion resistance and a broad operating temperature range from -150°F to +500°F. Designed for efficiency, the male adapter with hose shank enables quick connection and disconnection, ensuring long service life and performance in demanding environments.
Technical Specifications
Thread Types
- NPT
- BSPP
- BSPT
Seal Options
- NBR
- BUNA
- EPDM
- VITON
- Material
- SS316 Stainless SteelSS304 Stainless Steel
- Standards
- A-A-59326DIN 2828
- Size Range
- 1/2" to 8"
- Temperature Range
- -150°F to +500°F
Performance Metrics
Working Pressure by Size
250 PSI
3/4" - 2"
225 PSI
2-1/2"
200 PSI
3" - 4"
150 PSI
6"
