Split Lace Single Eye Cable Support Grip
Split lace support grips facilitate permanent installation when cable ends are hard to access. These grips support loads up to 600 lbs for vertical runs under 100 ft.
Technical Specifications
Product Overview
Professional Cable Support Solutions

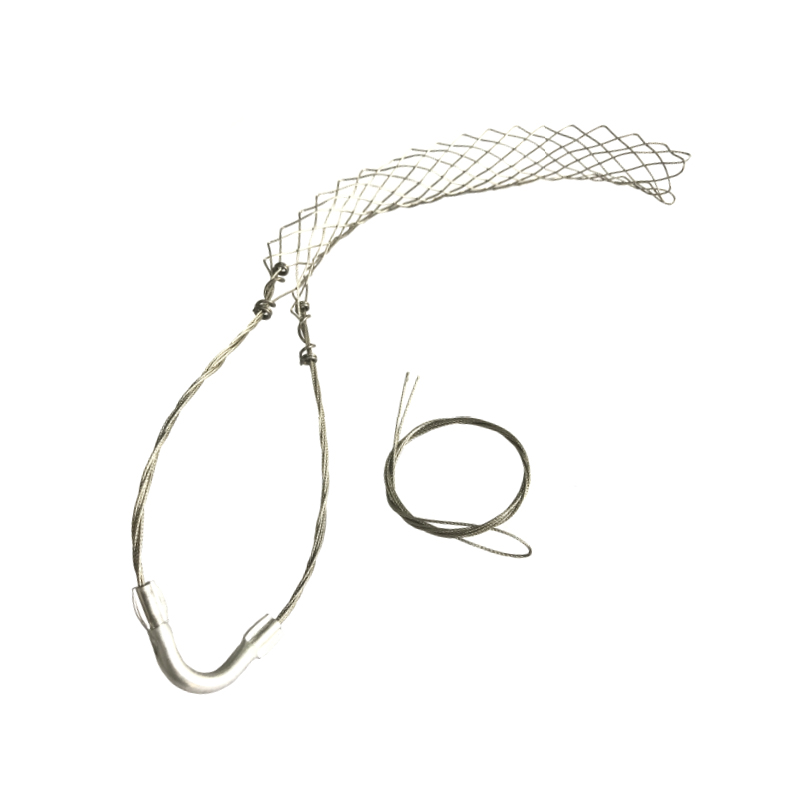

The Split Lace Single Eye Cable Support Grip is engineered for permanent cable installations where the end of the cable is inaccessible. Constructed from high-quality, non-magnetic, tin-coated bronze, these grips provide exceptional corrosion resistance and durability. They are designed to absorb strain from vibration, expansion, and flexing while supporting vertical runs up to 100 feet.
Technical Specifications
Performance Data
| Part Number | Cable Diameter | Bale Length | Mesh Length | Approx Break Strength |
|---|---|---|---|---|
| HG14L | 1/4" (6.0-9.9mm) | 6" (152.4mm) | 6" (152.4mm) | 500 lbs. |
| HG38L | 3/8" (10.1-11.9mm) | 6" (152.4mm) | 6" (152.4mm) | 700 lbs. |
- Max Vertical Run
- 100 ft
- Max Load Capacity
- 600 lbs
- Material
- Non-magnetic, tin-coated bronze
- Eye Style
- Single Eye
- Key Features
- Split LacePermanent InstallationCorrosion ResistantMulti-cable Support
