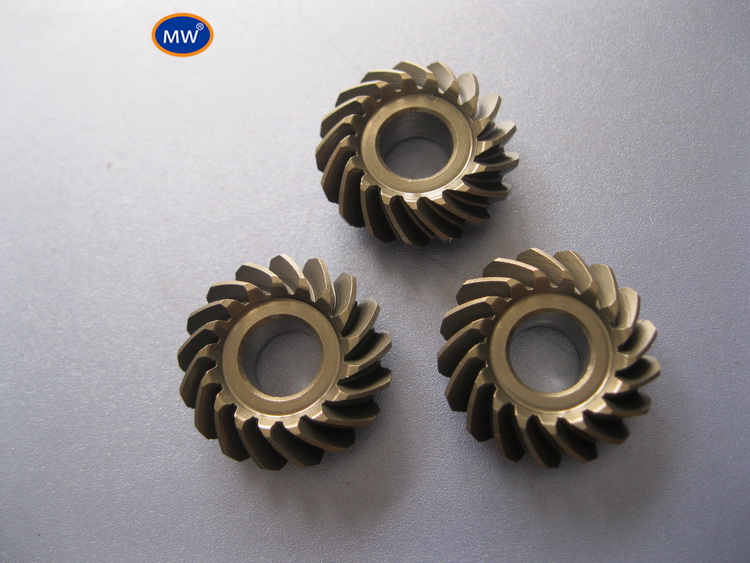

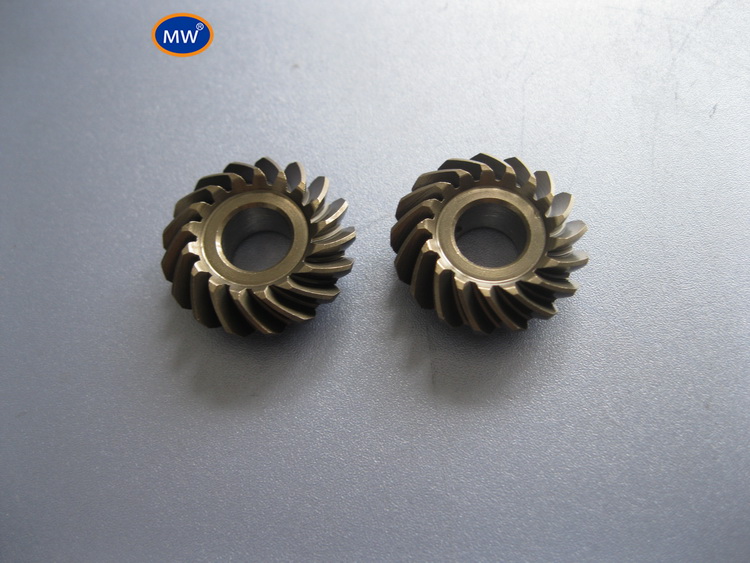

Spiral Helical Bevel Gear

This spiral helical bevel gear is designed for efficient power transmission. It is suitable for use in gearboxes, differentials, and power tools.

Request a Quote Download PDFPDF

Technical Specifications

Product Overview

Precision Spiral Helical Bevel Gear

This high-performance spiral helical bevel gear is engineered for efficient power transmission between intersecting shafts, typically at a 90-degree angle. Designed for smooth and quiet operation, the helical tooth geometry reduces vibration and provides superior load-carrying capacity compared to straight bevel gears. Built from high-strength alloy steel with hardened teeth, it ensures exceptional wear resistance and reliability in demanding industrial mechanical systems.

Technical Specifications

Material: 20CrMnTi
Processing Methods: ForgedMachinedHeat Treatment
Quality Standard: ISO9001
Production Type: OEM

High-quality spiral helical bevel gears showing hardened teeth and packaging — Precision-manufactured gears featuring hardened teeth for enhanced durability and wear resistance.

Application & Compatibility

Common Applications

Gearboxes
Differentials
Power Tools
Automotive Transmissions
Industrial Machinery

Service & Customization

Customization

Drawing AnalysisCustom DesignSample-based ManufacturingNon-standard Parts
